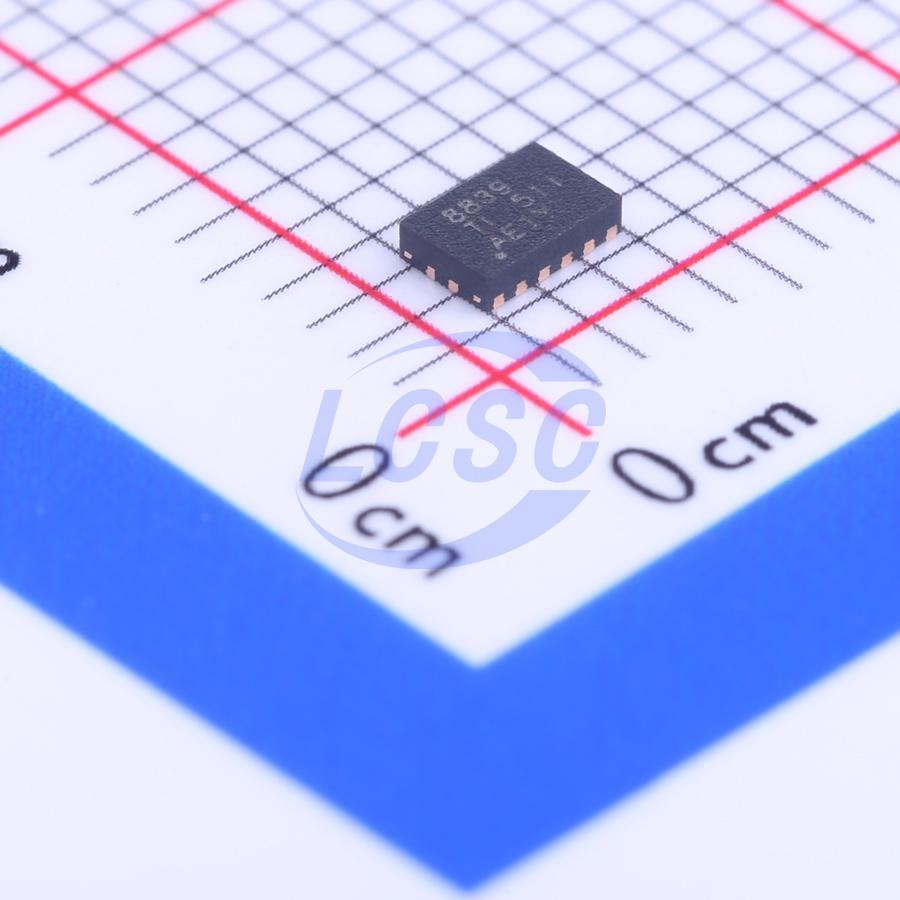

DRV8839DSSR
1.8V~7V WSON-12-EP(2x3) Motor Drivers, Controllers RoHS
Low-voltage dual H-bridge driver integrated circuit (IC)
- Manufacturer
- TI
- Manufacturer part #
- DRV8839DSSR
- Store part #
- C128627
- Package / case
- WSON-12-EP(2x3)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,884 in stock
#C128627
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.57 | ₹95.57 |
| 10+ | ₹80.93 | ₹809.30 |
| 30+ | ₹70.46 | ₹2,113.80 |
| 100+ | ₹61.96 | ₹6,196.00 |
| 500+ | ₹59.26 | ₹29,630.00 |
| 1,000+ | ₹57.63 | ₹57,630.00 |
1 × ₹95.57
₹95.57
excl. GST
₹112.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DRV8839DSSR
₹95.57 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function
- Technology
- Yes
- Voltage - Supply
- 1.8V~7V
- Operating Temperature
- -40℃~+150℃
- Output Current
- 1.8A
- RDS(on)
- 280mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
The DRV8839 provides a versatile power driver solution for cameras, consumer products, toys, and other low-voltage or battery-powered applications. This device features two independent ½ H-bridge drivers and can drive a DC motor or the windings of a stepper motor, as well as other devices such as solenoids. The output stage using N-channel power MOSFETs is configured as a ½ H-bridge. An internal charge pump generates the required gate drive voltage. The DRV8839 can deliver an output current of up to 1.8A. It operates within a motor supply voltage range of 0V to 11V and a device supply voltage range of 1.8V to 7V. The DRV8839 has separate input and enable pins for each ½ H-bridge, enabling individual control of each output. The internal shutdown function supports overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature protection. The DRV8839 comes in a 12-pin 2mm x 3mm WSON package with PowerPAD (Environmentally friendly: RoHS compliant and Sb/Br free).
Applications
- Battery-powered devices
- Digital single-lens reflex (DSLR) lenses
- Consumer products
- Toys
- Robotics
- Cameras
- Medical devices
Key features
- Dual ½ H-bridge motor driver
- Drives one DC motor or one stepper motor winding, or other loads
- Low MOSFET on-resistance: HS + LS 280mΩ
- 1.8A maximum drive current
- Separate motor and logic supply pins
- 0V to 11V motor operating supply voltage range
- 1.8V to 7V logic supply voltage range
