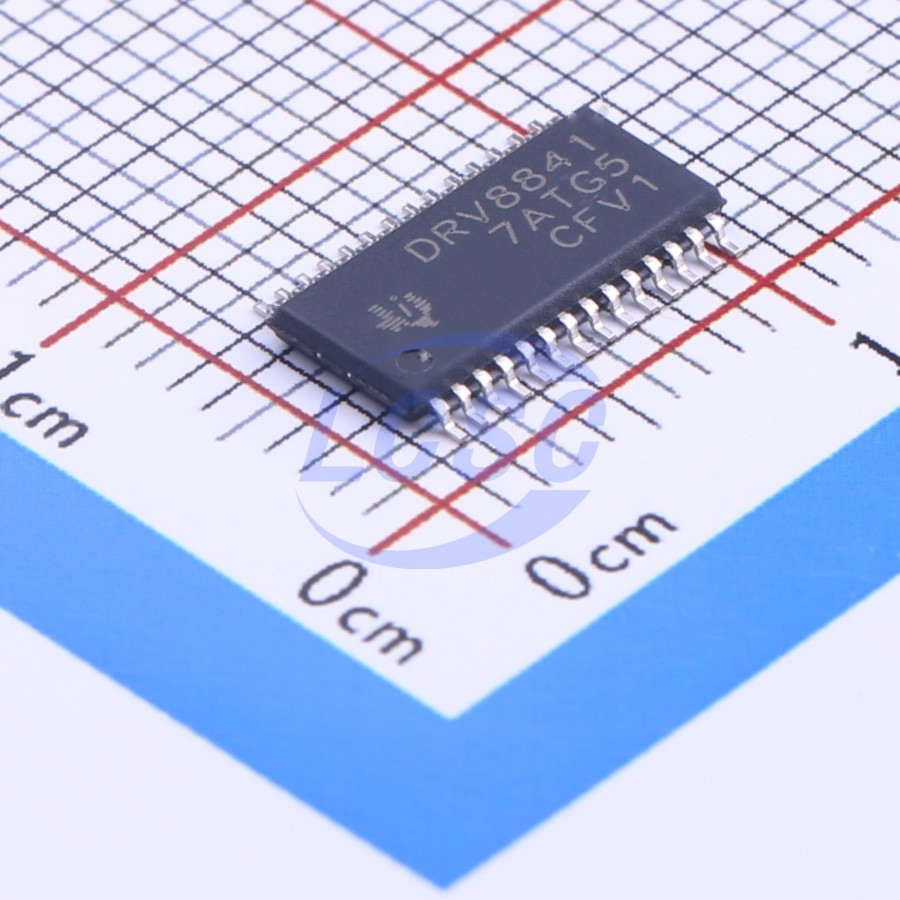

DRV8841PWPR
HTSSOP-28 Motor Drivers, Controllers RoHS
Dual H-Bridge Driver IC
- Manufacturer
- TI
- Manufacturer part #
- DRV8841PWPR
- Store part #
- C36542
- Package / case
- HTSSOP-28
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,719 in stock
#C36542
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.22 | ₹192.22 |
| 10+ | ₹159.00 | ₹1,590.00 |
| 30+ | ₹140.75 | ₹4,222.50 |
| 100+ | ₹120.33 | ₹12,033.00 |
| 500+ | ₹111.21 | ₹55,605.00 |
| 1,000+ | ₹107.08 | ₹1,07,080.00 |
1 × ₹192.22
₹192.22
excl. GST
₹226.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8841PWPR
₹192.22 for 1 + GST
Specifications
- Drive Type
- Bipolar Driver
- Number of H-bridges
- 2
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Built-in charge pump
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Output Current
- 2.5A
- RDS(on)
- 200mΩ
- Motor Drive Voltage(Vm)
- 8.2V~45V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.385 g
Overview
The DRV8841 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers, and can be used to drive two DC motors, one stepper motor, or other loads. The output driver block for each consists of N-channel power MOSFET’s configured as H-bridges. The DRV8841 can supply up to 2.5-A peak or 1.75-A RMS output current (with proper heatsinking at 24 V and 25°C) per H-bridge. Internal shutdown functions are provided for over current protection, short circuit protection, under voltage lockout and overtemperature. The DRV8841 is available in a 28-pin HTSSOP package with PowerPAD (Eco-friendly: RoHS & no Sb/Br).
Applications
- Drives Two DC Motors, One Stepper Motor or Other Loads
- Printers
- Scanners
- Office Automation Machines
- Gaming Machines
- Factory Automation Robotics
Key features
- Dual H-Bridge DC Motor Driver
- Thermally Enhanced Surface Mount Package
- 2.5-A Maximum Drive Current at 24 V, 25°C
- Built-In 3.3-V Reference Output
- Industry-Standard PWM Control Interface
- 8.2-V to 45-V Operating Supply Voltage Range
