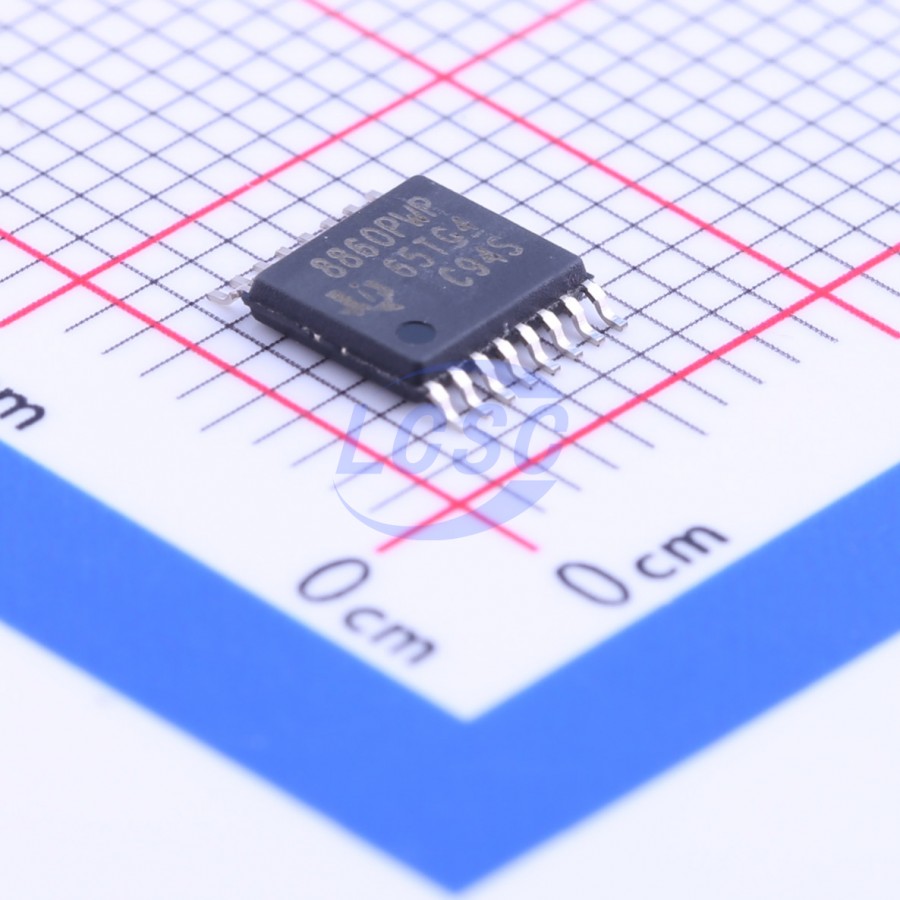

DRV8860PWPR
HTSSOP-16-EP Motor Drivers, Controllers RoHS
8-Channel Serial Interface Low-Side Driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8860PWPR
- Store part #
- C133079
- Package / case
- HTSSOP-16-EP
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
28,561 in stock
#C133079
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹156.28 | ₹156.28 |
| 10+ | ₹129.03 | ₹1,290.30 |
| 30+ | ₹114.06 | ₹3,421.80 |
| 100+ | ₹97.09 | ₹9,709.00 |
| 500+ | ₹89.51 | ₹44,755.00 |
| 1,000+ | ₹86.09 | ₹86,090.00 |
1 × ₹156.28
₹156.28
excl. GST
₹184.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8860PWPR
₹156.28 for 1 + GST
Specifications
- Drive Type
- Unipolar Drive
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Interface
- Serial
- Operating Temperature
- -40℃~+85℃
- Output Current
- 560mA
- RDS(on)
- 1.5Ω
- Motor Drive Voltage(Vm)
- 8V~38V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.686 g
Overview
The DRV8860 provides an 8-channel low side driver with overcurrent protection and open/shorted load detection. It has built-in diodes to clamp turn-off transients generated by inductive loads, and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads. The PWP package can supply up to 330 mA × 8 channel and The PW package can supply up to 200 mA × 8 channel continuous output current. A single channel can deliver up to 560 mA continuous output current. A serial interface is provided to control the DRV8860 output drivers, configure internal setting register and read the fault status of each channel. DRV8860 devices can be daisy-chained together to use a single serial interface. Energizing-time and holding-PWMDuty cycles are configurable through serial interface as well. These functions allow for cooler running than always-on solutions.
Applications
- Relays
- Unipolar Stepper Motors
- Solenoids
- Electromagnetic Drivers
- General Low-side Switch Applications
- LED driver with dimmer functionality (DRV8860A)
Key features
- 8-Channel Protected Low-side Driver
- Eight NMOS FETs with Overcurrent Protection
- Integrated Inductive Catch Diodes
- Serial Interface
- Open/Short Load Detection (DRV8860 only)
- Configurable 100% Output Timing
- Configurable PWM Duty Cycle
- Continuous Current Driving Capability
- 560 mA (Single Channel on) PW and PWP
- 200 mA (8 Channels on) PW
- 330 mA (8 Channels on) PWP
- Support Parallel Configuration
- Input Digital Noise Filter for Noise Immunity
- Overcurrent Protection (OCP)
- Open Load Detection (OL)
- Overtemperature Shutdown (OTS)
- Undervoltage Lockout (UVLO)
- Individual Channel Status Report
- Fault Condition Alarm
