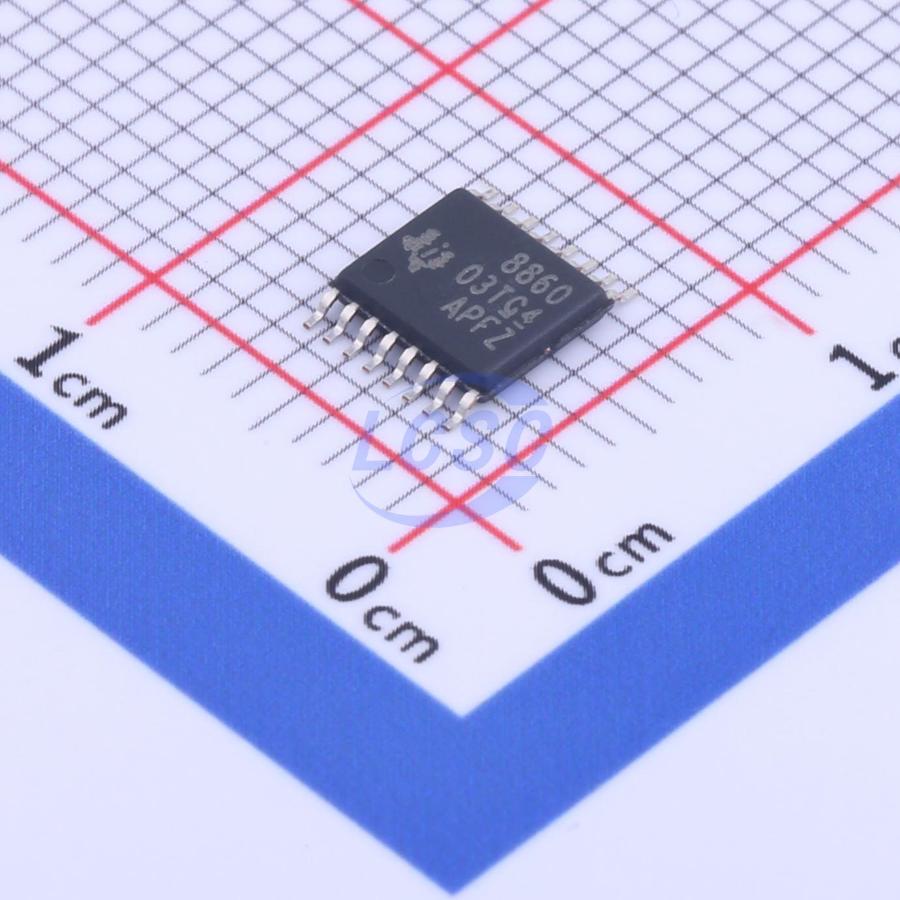

DRV8860PWR
TSSOP-16 Motor Drivers, Controllers RoHS
8-channel serial interface low-side driver
- Manufacturer
- TI
- Manufacturer part #
- DRV8860PWR
- Store part #
- C2149500
- Package / case
- TSSOP-16
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,390 in stock
#C2149500
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹118.82 | ₹118.82 |
| 10+ | ₹95.14 | ₹951.40 |
| 30+ | ₹83.19 | ₹2,495.70 |
| 100+ | ₹71.47 | ₹7,147.00 |
| 500+ | ₹64.30 | ₹32,150.00 |
| 1,000+ | ₹60.82 | ₹60,820.00 |
1 × ₹118.82
₹118.82
excl. GST
₹140.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
DRV8860PWR
₹118.82 for 1 + GST
Specifications
- Drive Type
- Unipolar Drive
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout
- Technology
- Yes
- Interface
- SPI
- Operating Temperature
- -40℃~+85℃
- Output Current
- 560mA
- Control Voltage
- 8V~38V
- RDS(on)
- 1.5Ω
- Motor Drive Voltage(Vm)
- 8V~38V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.104 g
Overview
The DRV8860 is an 8-channel low-side driver with overcurrent protection and open/short-load detection. It features built-in clamp diodes to suppress turn-off transients generated by inductive loads, and can be used to drive unipolar stepper motors, DC motors, relays, solenoids, or other loads. The DRV8860PWP provides up to 330mA (all 8 channels on) continuous output current, while the DRV8860PW provides up to 200mA (all 8 channels on) continuous output current. This current drive capability increases as the PWM duty cycle decreases. With a single channel on, up to 560mA continuous output current can be driven. A serial interface is provided to control the DRV8860 output drivers, configure internal setting registers, and read the fault status of each channel. Multiple DRV8860 devices can be daisy-chained together to share a single serial interface. Power-on time and hold PWM duty cycle can also be configured via the serial interface. These features enable lower operating temperatures compared to traditional always-on solutions. Internal shutdown functions are also provided for overcurrent protection, short-circuit protection, UVLO, and overtemperature protection. The DRV8860 can diagnose open-load conditions. Fault information for each channel can be read via the serial interface and is indicated by an external fault pin.
Applications
- Relay
- Unipolar stepper motor
- Solenoid
- Electromagnetic actuator
- Common low-side switch applications
Key features
- 8-channel protected low-side driver
- 8 NMOS FETs with overcurrent protection
- Integrated freewheeling diode
- Serial interface
- Open-load/short-circuit detection
- Configurable 100% duty cycle output timing
- Configurable PWM duty cycle
- Continuous current drive capability: 560mA (single channel on); 200mA (eight channels on) PW; 330mA (eight channels on) PWP; parallel configuration supported
- 8V to 38V supply voltage range
- Digital input filter
- Internal data readback
- Protection and diagnostic features: overcurrent protection (OCP); open-load detection (OL); overtemperature shutdown (OTS); undervoltage lockout (UVLO); individual channel status reporting; fault condition alarm
