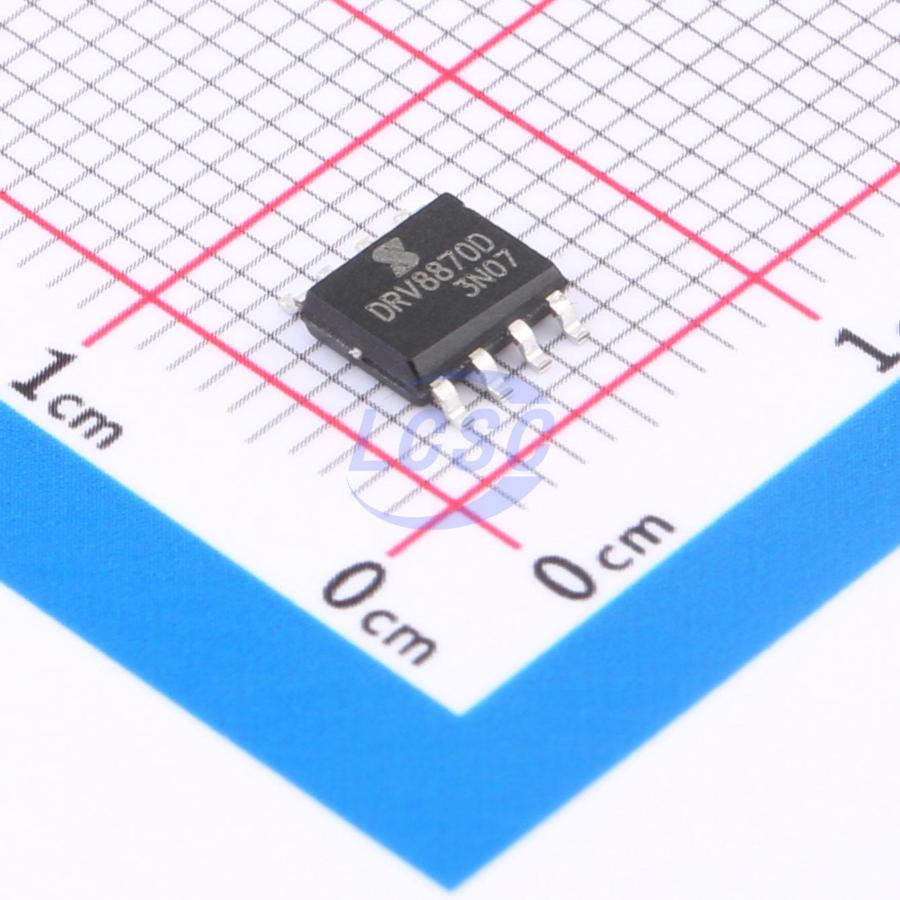

DRV8870DDAR
8V~38V ESOP-8 Motor Drivers, Controllers RoHS
Full-bridge motor driver chip with PWM control
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DRV8870DDAR
- Store part #
- C5804619
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,456 in stock
#C5804619
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.95 | ₹68.95 |
| 10+ | ₹54.22 | ₹542.20 |
| 30+ | ₹47.92 | ₹1,437.60 |
| 100+ | ₹40.11 | ₹4,011.00 |
| 500+ | ₹36.65 | ₹18,325.00 |
| 1,000+ | ₹34.70 | ₹34,700.00 |
1 × ₹68.95
₹68.95
excl. GST
₹81.36 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DRV8870DDAR
₹68.95 for 1 + GST
Specifications
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 8V~38V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 10uA
- Peak Current
- 3.5A
- RDS(on)
- 600mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.329 g
Overview
DRV8870DDAR is used for PWM speed control to drive DC motors, integrating an H-bridge driver and control circuitry. It features a peak output current of 3.5 A, continuous output current up to 2.5 A, and a maximum operating voltage of 38 V. PWM control signals applied to inputs IN1 and IN2 enable control of DC motor speed and direction. The internal synchronous rectification circuit reduces power dissipation during PWM control. DRV8870DDAR offers an ultra-low power sleep mode. The device integrates overcurrent protection, short-circuit protection, undervoltage protection, and overtemperature protection. Drive current can be limited via an external resistor. The device comes in an ESOP-8 package with an exposed thermal pad for effective heat dissipation.
Applications
- DC brushed motors
- Smart home
- Industrial equipment
- Office equipment
Key features
- Wide supply voltage range: 8V~38V
- Low on-resistance: 0.6Ω
- Low-power standby mode
- Adjustable output current limiting
- Integrated synchronous regulation
- Forward, reverse, brake, and standby modes
- 3.5A peak drive current, 2.5A continuous drive current
- Undervoltage lockout protection
- Overcurrent protection
- Built-in overtemperature protection
- Built-in bridge short-circuit protection
- ESOP-8 package
