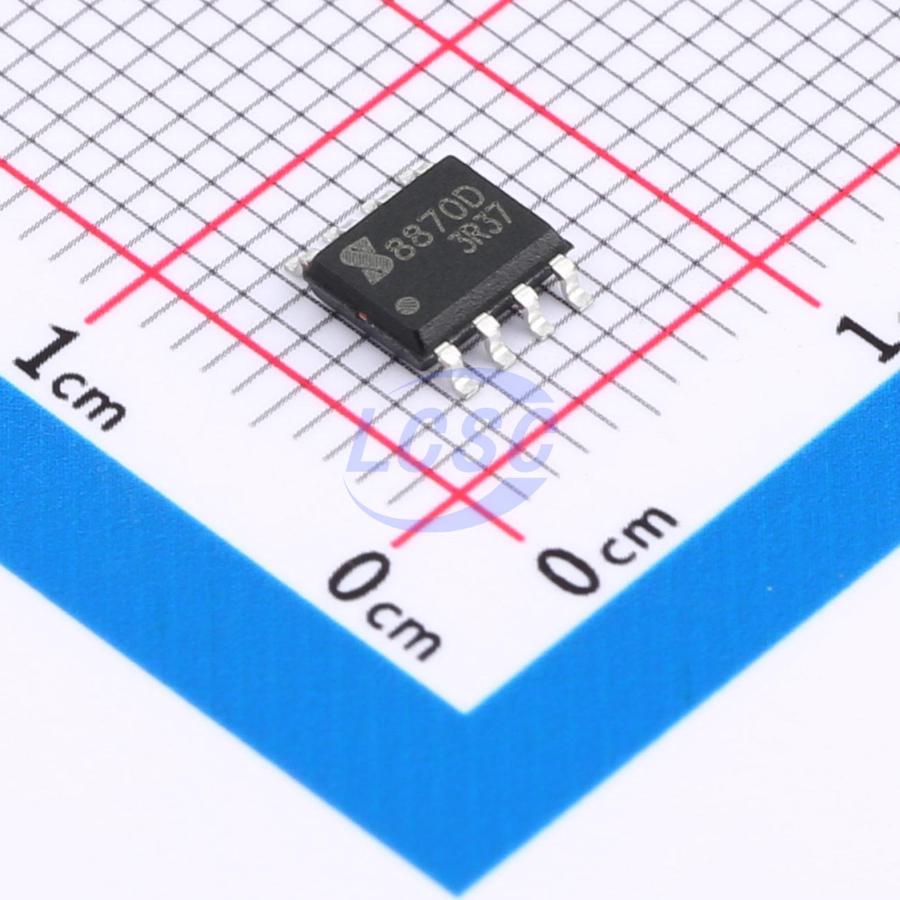

DRV8870DDAR-S
8V~40V ESOP-8 Motor Drivers, Controllers RoHS
- Manufacturer
- JSMSEMI
- Manufacturer part #
- DRV8870DDAR-S
- Store part #
- C19077371
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,888 in stock
#C19077371
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.91 | ₹65.91 |
| 10+ | ₹51.39 | ₹513.90 |
| 30+ | ₹45.33 | ₹1,359.90 |
| 100+ | ₹37.52 | ₹3,752.00 |
| 500+ | ₹36.00 | ₹18,000.00 |
| 1,000+ | ₹34.04 | ₹34,040.00 |
1 × ₹65.91
₹65.91
excl. GST
₹77.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DRV8870DDAR-S
₹65.91 for 1 + GST
Specifications
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Technology
- Yes
- Voltage - Supply
- 8V~40V
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 100nA
- Output Current
- 3A
- Peak Current
- 5A
- RDS(on)
- 500mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.185 g
Overview
This device is designed for PWM speed control of DC motors. It integrates an H-bridge driver and control circuitry, with a peak output current of 5A, continuous output current up to 3.0A, and a maximum operating voltage of 45V. PWM control signals applied to inputs IN1 and IN2 enable control of DC motor speed and direction. An internal synchronous regulation circuit reduces power dissipation during PWM control. The device features an ultra-low power sleep mode. On-chip protection functions include overcurrent protection, short-circuit protection, undervoltage protection, and overtemperature protection. Drive current can be limited via an external resistor. The device is available in an ESOP-8 package with an exposed thermal pad for effective heat dissipation, and operates over a temperature range of -40°C to 125°C.
Applications
- DC brushed motors
- Smart home
- Industrial equipment
- Office equipment
Key features
- Wide supply voltage range: 8V~45V
- Low on-resistance: 0.5Ω
- Low-power standby mode
- Adjustable output current limiting
- Integrated synchronous rectification
- Forward, reverse, brake, and standby modes
- 5A peak drive current, 3.0A continuous drive current
- Undervoltage lockout protection
- Overcurrent protection
- Built-in overtemperature protection
- Built-in bridge short-circuit protection
- ESOP-8 package
