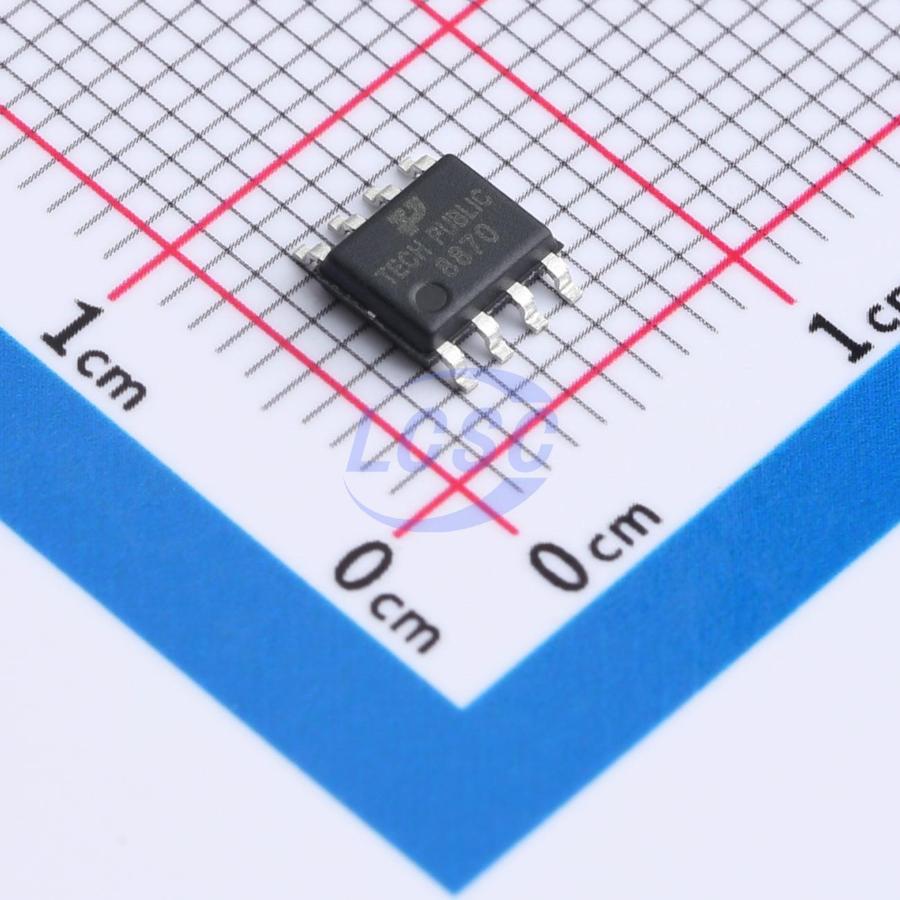

DRV8870DDAR-TP
6.5V~40V ESOP-8 Motor Drivers, Controllers
3.6A Brushed DC Motor Driver
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- DRV8870DDAR-TP
- Store part #
- C42370485
- Package / case
- ESOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,665 in stock
#C42370485
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.37 | ₹56.37 |
| 10+ | ₹44.45 | ₹444.50 |
| 30+ | ₹39.25 | ₹1,177.50 |
| 100+ | ₹32.74 | ₹3,274.00 |
| 500+ | ₹29.93 | ₹14,965.00 |
| 1,000+ | ₹28.19 | ₹28,190.00 |
1 × ₹56.37
₹56.37
excl. GST
₹66.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DRV8870DDAR-TP
₹56.37 for 1 + GST
Specifications
- Number of H-bridges
- 1
- Features
- Interleaved conduction protection;Current sensing/regulation function;Active braking function
- Voltage - Supply
- 6.5V~40V
- Technology
- Yes
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 15uA
- Output Current
- 3.5A
- Peak Current
- 3.6A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
This device is a brushed DC motor driver. It integrates four N-channel MOSFETs, capable of delivering a peak current of up to 3.6A at 40V. It supports a PH/EN interface, enabling PWM signals on the input interface to regulate motor speed. Users can adjust the PWM current limit or torque in real time via the VREF pin using a controller's DAC output or an RC-filtered PWM signal. The device features multiple protection functions, including overcurrent, short circuit, undervoltage lockout, and thermal shutdown. Once fault conditions are cleared, the device automatically resumes normal operation.
Applications
- Printers
- Home appliances
- Industrial equipment
- Vacuum cleaners
- Robotics
- Industrial pumps and valves
- Other mechatronic applications
Key features
- H-bridge motor driver for one DC motor, one stepper motor winding, or other loads
- Wide supply voltage range: 6.5V ~ 40V
- 3.6A peak current drive
- PWM control interface
- Integrated current regulation
- Low-power sleep mode
- VM undervoltage lockout (UVLO)
- Overcurrent protection (OCP)
- Thermal shutdown (TSD)
- Automatic fault recovery
- Compact package: ESOP8
