TIDatasheet (PDF)

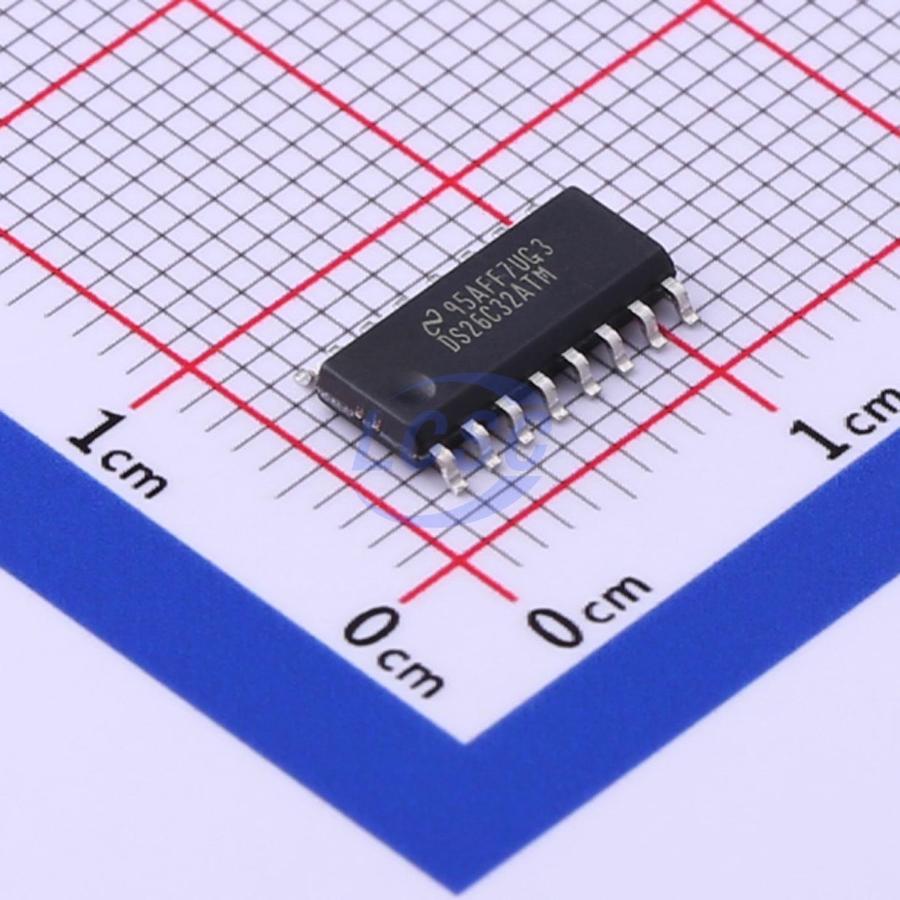

DS26C32ATMX/NOPB
4.5V~5.5V Receiver SOIC-16 Drivers, Receivers, Transceivers RoHS
SOIC-16ROHS3 CompliantActive
Quad Differential Line Receiver
- Manufacturer
- TI
- Manufacturer part #
- DS26C32ATMX/NOPB
- Store part #
- C527395
- Package / case
- SOIC-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,445 in stock
#C527395
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.22 | ₹165.22 |
| 10+ | ₹146.11 | ₹1,461.10 |
| 30+ | ₹128.09 | ₹3,842.70 |
| 100+ | ₹114.62 | ₹11,462.00 |
| 500+ | ₹108.99 | ₹54,495.00 |
| 1,000+ | ₹106.38 | ₹1,06,380.00 |
1 × ₹165.22
₹165.22
excl. GST
₹194.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DS26C32ATMX/NOPB
₹165.22 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Receiver
- Operating Temperature
- -40℃~+85℃
- Number of Drivers
- 0
- Features
- Enable shutdown
- Number of Receivers
- 4
- Quiescent Supply Current
- 23mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.3 g
Overview
The DS26C32A is a quad differential line receiver designed to meet the RS-422, RS-423, and Federal Standards 1020 and 1030 for balanced and unbalanced digital data transmission, while retaining the low power characteristics of CMOS. The DS26C32A has an input sensitivity of 200 mV over the common mode input voltage range of ±7 V. The DS26C32A features internal pull-up and pulldown resistors which prevent output oscillation on unused channels. The DS26C32A provides an enable and disable function common to all four receivers. It also features TRI-STATE outputs with 6 mA source and sink capability. This product is pin compatible with the DS26LS32A and the AM26LS32.
Key features
- CMOS Design for Low Power
- ±0.2 V Sensitivity over Input Common Mode Voltage Range
- Typical Propagation Delays: 19 ns
- Typical Input hysteresis: 60 mV
- Inputs Won't Load Line When VCC = 0 V
- Meets the Requirements of EIA Standard RS 422
- TRI-STATE Outputs for Connection to System Buses
- Available in Surface Mount
- Mil-Std-883C Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS26C32ATM/NOPB#C132020TI · SOIC-16 | TI | SOIC-16 | On request | Price on request | Quote |
