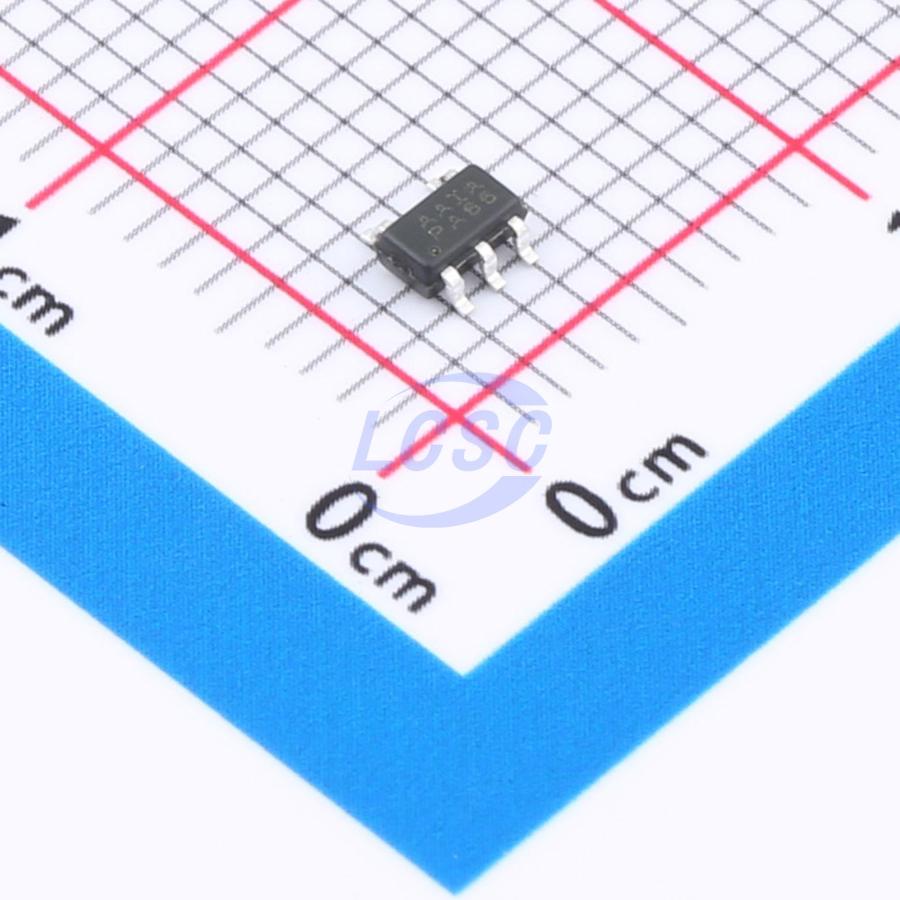

DS8401-33S5
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5
SOT-23-5RoHSActive
40V, 200mA low dropout voltage linear regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8401-33S5
- Store part #
- C48533046
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C48533046
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.89 | ₹88.90 |
| 100+ | ₹7.03 | ₹703.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.40 | ₹16,200.00 |
| 6,000+ | ₹4.84 | ₹29,040.00 |
| 9,000+ | ₹4.56 | ₹41,040.00 |
10 × ₹8.89
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8401-33S5
₹88.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.055 g
Overview
The DS8401 series is a family of low-dropout linear voltage regulators featuring wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 2µA, they are ideal for powering battery-operated always-on systems that require extremely low idle-state power consumption to extend battery life. Pulling the EN pin low activates shutdown mode, in which the typical shutdown current is only 100nA. This series of linear regulators maintains stability with ceramic output capacitors across a wide input voltage range of 2.5V to 40V and throughout the full output load current range of 0mA to 200mA.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Laptops, handheld computers, and PDAs
- Wireless communication devices
- Audio/video equipment
- Automotive navigation systems
- Industrial control
- Weighing scales
- Instrumentation
- Home automation
Key features
- Ground current 2μA at no load
- Output accuracy ±1%
- Output peak current 200mA
- Shutdown current 100nA
- Wide input voltage range: 2.5V to 40V
- Dropout voltage: 0.35V at 100mA output, 5V output voltage
- Fixed output voltages: 1.8V, 3.3V, 5V, 12V
- Adjustable output voltage available for specific applications
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-5 and DFN2x2-6L packages
