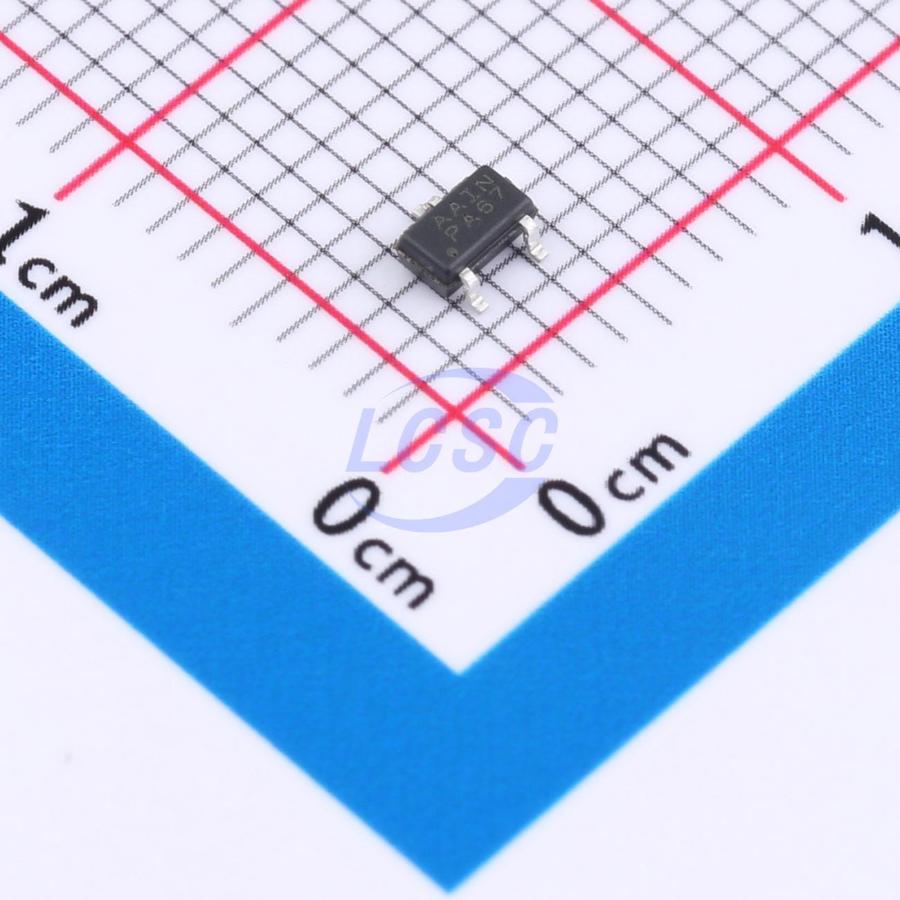

DS8402-33S3
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-3
SOT-23-3RoHSActive
40V, 200mA Low Dropout Voltage Linear Regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8402-33S3
- Store part #
- C48533049
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,360 in stock
#C48533049
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.89 | ₹88.90 |
| 100+ | ₹7.03 | ₹703.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.40 | ₹16,200.00 |
| 6,000+ | ₹4.84 | ₹29,040.00 |
| 9,000+ | ₹4.56 | ₹41,040.00 |
10 × ₹8.89
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8402-33S3
₹88.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.054 g
Overview
The DS8402 series is a family of low-dropout linear regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With a quiescent current of only 2μA, they are ideal for powering battery-operated always-on systems that require extremely low quiescent power consumption to extend operating life. This series of linear regulators operates stably with ceramic output capacitors across a wide input voltage range of 2.5V to 40V and an output load current range of 0mA to 200mA.
Applications
- Portable battery-powered devices
- Low-power microcontrollers
- Wireless communication devices
- Automotive navigation systems
- Industrial control
Key features
- 2μA quiescent current at no load
- ±1% output accuracy
- 200mA peak output current
- Wide input voltage range: 2.5V to 40V
- Dropout voltage: 0.35V at 100mA output current, 5V output voltage
- Fixed output voltage options: 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, 3.6V, 5V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SSOT-23, SOT-23-3, SOT-23-5, SOT-89-3 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS8604-33S3#C5884200DSTECH · SOT-23-3 | DSTECH | SOT-23-3 | 2,995 | ₹15.44 · 2,995 in stock | View |
