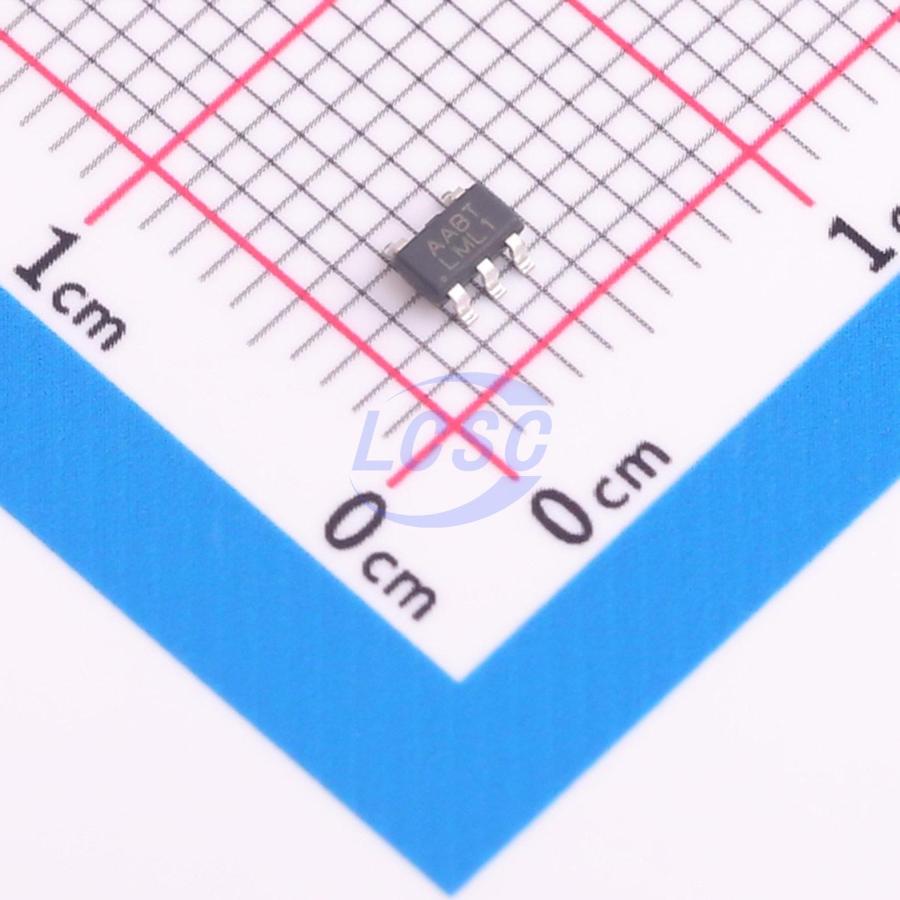

DS8562-18S5
1.8V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5RoHSActive
2uA, 600mA Low Dropout Voltage Linear Regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8562-18S5
- Store part #
- C5884111
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,620 in stock
#C5884111
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.31 | ₹53.10 |
| 100+ | ₹4.15 | ₹415.00 |
| 300+ | ₹3.57 | ₹1,071.00 |
| 3,000+ | ₹3.15 | ₹9,450.00 |
| 6,000+ | ₹2.80 | ₹16,800.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
10 × ₹5.31
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8562-18S5
₹53.10 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 600mA
- Operating Voltage
- 5.5V
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
The DS8562 series are a group of low-dropout (LDO) voltage regulators offering the benefits of wide input voltage range from 1.2V to 5.5Vi, low dropout voltage, low power consumption, and miniaturized packaging. Quiescent current of only 2μA makes these devices ideal for powering the battery-powered, always-on systems that require very little idle-state power dissipation to a longer service life. There is an option of shutdown mode by selecting the parts with the EN pin and pulling it low. The shutdown current in this mode goes down to only 100nA (typical). The DS8562 series of linear regulators are stable with the ceramic output capacitor over its wide input range from 1.2V to 5.5V and the entire range of output load current (0mA to 600mA).
Applications
- Portable, Battery Powered Equipment
- Low Power Microcontrollers
- Laptop, Palmtops and PDAs
- Wireless Communication Equipment
- Audio/Video Equipment
- Car Navigation Systems
Key features
- 2μA Ground Current at no Load
- ±2% Output Accuracy
- 600mA Output Current
- 100nA Disable Current (by option)
- Wide Operating Input Voltage Range: 1.2V to 5.5V
- Dropout Voltage: 0.36V at 600mA / VOUT 3.3V
- Support Fixed Output Voltage 1.2V, 1.5V, 1.6V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with Ceramic or Tantalum Capacitor
- Current Limit Protection
- Over-Temperature Protection
- SOT-23-3, SOT-23-5, DFN1x1-4L and DFN2x2-6L Packages Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS8572-18S5#C48533029DSTECH · SOT-23-5 | DSTECH | SOT-23-5 | 1,900 | ₹4.11 · 1,900 in stock | View |
