DSTECHDatasheet (PDF)

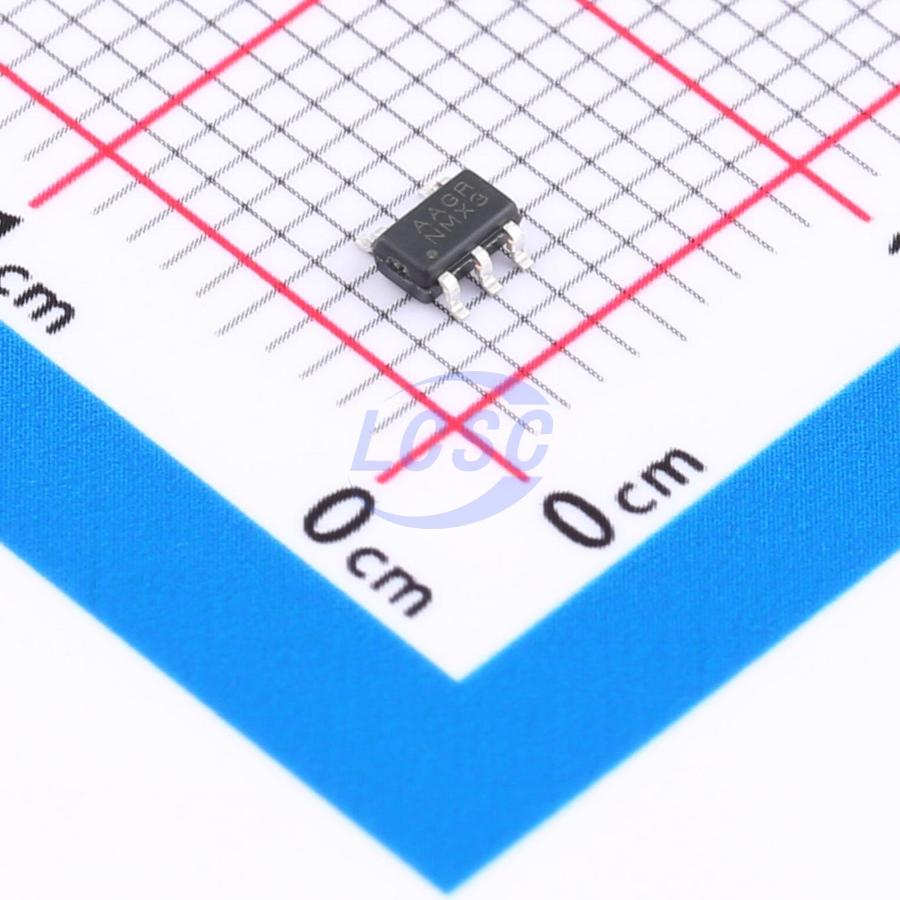

DS8572-18S5
Linear Voltage Regulator IC Positive Fixed 600mA SOT-23-5
SOT-23-5RoHSActive
600mA Low Dropout Voltage Linear Regulator
- Manufacturer
- DSTECH
- Manufacturer part #
- DS8572-18S5
- Store part #
- C48533029
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,900 in stock
#C48533029
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.11 | ₹82.20 |
| 200+ | ₹3.20 | ₹640.00 |
| 600+ | ₹2.70 | ₹1,620.00 |
| 3,000+ | ₹2.39 | ₹7,170.00 |
| 9,000+ | ₹2.13 | ₹19,170.00 |
| 21,000+ | ₹2.00 | ₹42,000.00 |
20 × ₹4.11
₹82.20
excl. GST
₹97.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS8572-18S5
₹82.20 for 20 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 30uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Features
- Enable control;Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.052 g
Overview
This series is a family of low-dropout voltage regulators featuring a wide input voltage range, low dropout voltage, low power consumption, and compact packaging. With fast transient response, they are well suited for applications requiring rapid instantaneous load transitions. By selecting a model with an enable pin and pulling it low, shutdown mode can be activated, with a typical shutdown current of only 100nA. These linear regulators maintain stability with ceramic output capacitors across a wide input voltage range and the full output load current range.
Applications
- Portable battery-powered equipment
- Low-power microcontrollers
- Laptops, handheld PCs, and PDAs
- Wireless communication devices
- Audio/video equipment
Key features
- Fast transient response
- ±2% output accuracy
- 600mA output current
- 100nA shutdown current (optional)
- Wide input voltage range: 2.3V to 6V
- Dropout voltage: 0.06V at 100mA output current, 3.3V output voltage
- Fixed output voltage options: 0.5V, 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V
- Stable with ceramic or tantalum capacitors
- Current limiting protection
- Over-temperature protection
- Available in SOT-23-3, SOT-23-5, DFN1x1-4L, and DFN2x2-6L packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DS8562-18S5#C5884111DSTECH · SOT-23-5 | DSTECH | SOT-23-5 | 2,620 | ₹5.29 · 2,620 in stock | View |
