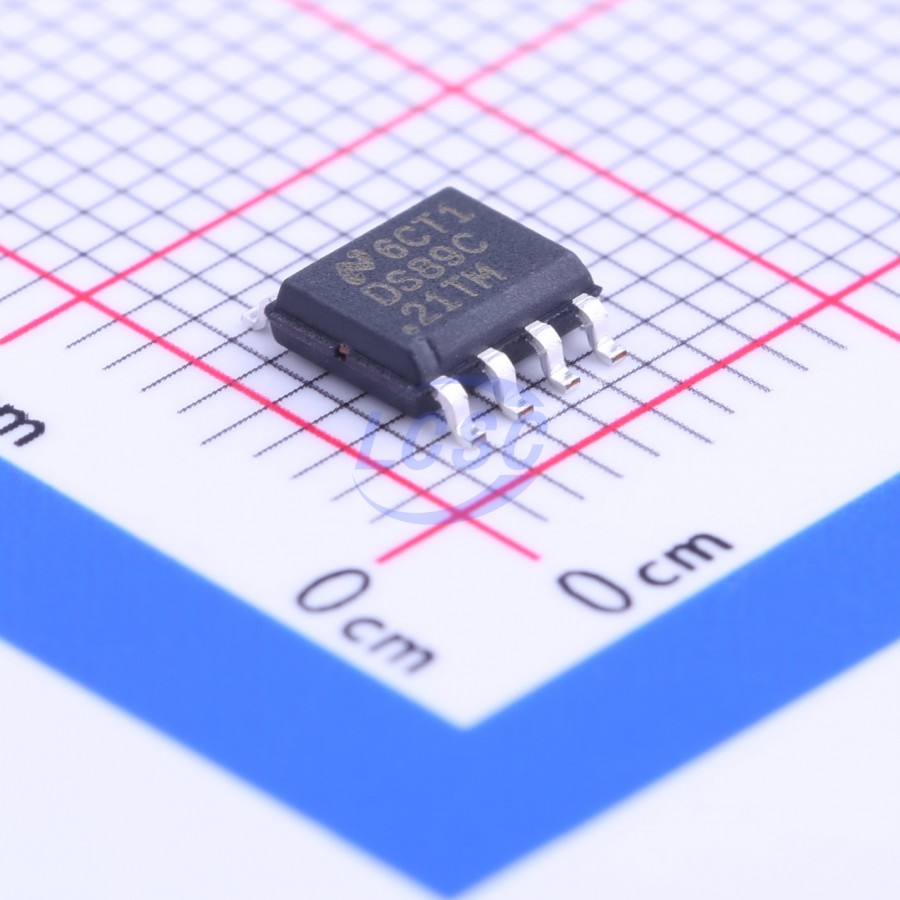

DS89C21TMX/NOPB
4.5V~5.5V Transceiver 20Mbps SOIC-8 Drivers, Receivers, Transceivers RoHS
SOIC-8ROHS3 CompliantActive
Differential CMOS Line Driver and Receiver Pair
- Manufacturer
- TI
- Manufacturer part #
- DS89C21TMX/NOPB
- Store part #
- C181541
- Package / case
- SOIC-8
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,270 in stock
#C181541
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹343.44 | ₹343.44 |
| 10+ | ₹302.33 | ₹3,023.30 |
| 30+ | ₹281.46 | ₹8,443.80 |
| 100+ | ₹253.17 | ₹25,317.00 |
| 500+ | ₹243.17 | ₹1,21,585.00 |
| 1,000+ | ₹238.81 | ₹2,38,810.00 |
1 × ₹343.44
₹343.44
excl. GST
₹405.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DS89C21TMX/NOPB
₹343.44 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- Transceiver
- Data Rate
- 20Mbps
- Operating Temperature
- -40℃~+85℃
- Number of Drivers
- 1
- Features
- Fail-safe
- Number of Receivers
- 1
- Quiescent Supply Current
- 3mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.173 g
Overview
The DS89C21 is a differential CMOS line driver and receiver pair, designed to meet the requirements of TIA/EIA-422-A (RS-422) electrical characteristics interface standard. The DS89C21 provides one driver and one receiver in a minimum footprint. The device is offered in an 8-pin SOIC package. The CMOS design minimizes the supply current to 6 mA, making the device ideal for use in battery powered or power conscious applications. The driver features a fast transition time specified at 2.2 ns, and a maximum differential skew of 2 ns making the driver ideal for use in high speed applications operating above 10 MHz. The receiver can detect signals as low as 200mV, and also incorporates hysteresis for noise rejection. Skew is specified at 4 ns maximum. The DS89C21 is compatible with TTL and CMOS levels (DI and RO).
Applications
- Battery-powered devices
- Power-sensitive applications
- High-speed signal transmission above 10MHz
Key features
- Meets TIA/EIA-422-A (RS-422) and CCITT V.11 Recommendation
- LOW POWER Design—15 mW Typical
- Guaranteed AC Parameters:
- Maximum Driver Skew 2.0 ns
- Maximum Receiver Skew 4.0 ns
- Extended Temperature Range: -40°C to 85°C
- Available in SOIC Packaging
- Operates over 20 Mbps
- Receiver OPEN Input Failsafe Feature
