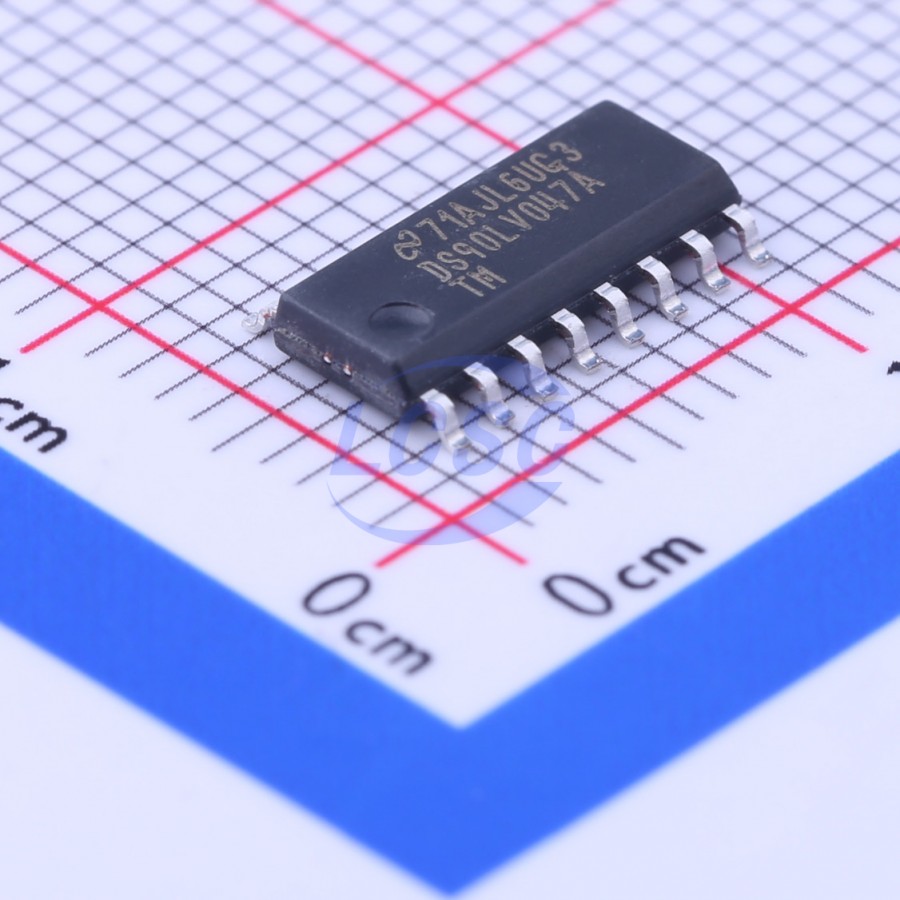

DS90LV047ATMX/NOPB

The DS90LV047A device is a quad CMOS flow- through differential line driver designed for applications requiring ultra- low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) using Low Voltage Differential Signaling (LVDS) technology. The DS90LV047A accepts low voltage TTL/CMOS input levels and translates them to low voltage (350mV) differential output signals. In addition, the driver supports a TRI- STATE function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 13mW typical. The DS90LV047A has a flow- through pinout for easy PCB layout. The EN and EN*(overline) inputs are ANDed together and control the TRI- STATE outputs. The enables are common to all four drivers. The DS90LV047A and companion line receiver (DS90LV048A) provide a new alternative to high power pseudo- ECL devices for high speed point- to- point interface applications.

Applications

• Multifunction Printers
• LVDS - LVCMOS Translation

Key features

• >400- Mbps (200 MHz) Switching Rates
• Flow- Through Pinout Simplifies PCB Layout
• 300- ps Typical Differential Skew
• 400- ps Maximum Differential Skew
• 1.7- ns Maximum Propagation Delay
• 3.3- V Power Supply Design
• ±350 - mV Differential Signaling
• Low Power Dissipation (13 mW at 3.3- V Static)
• Interoperable With Existing 5- V LVDS Receivers
• High impedance on LVDS Outputs on Power Down
• Conforms to TIA/EIA- 644 LVDS Standard
• Industrial Operating Temperature Range (- 40°C to +85°C)
• Available in Surface Mount SOIC and Low Profile TSSOP Package
