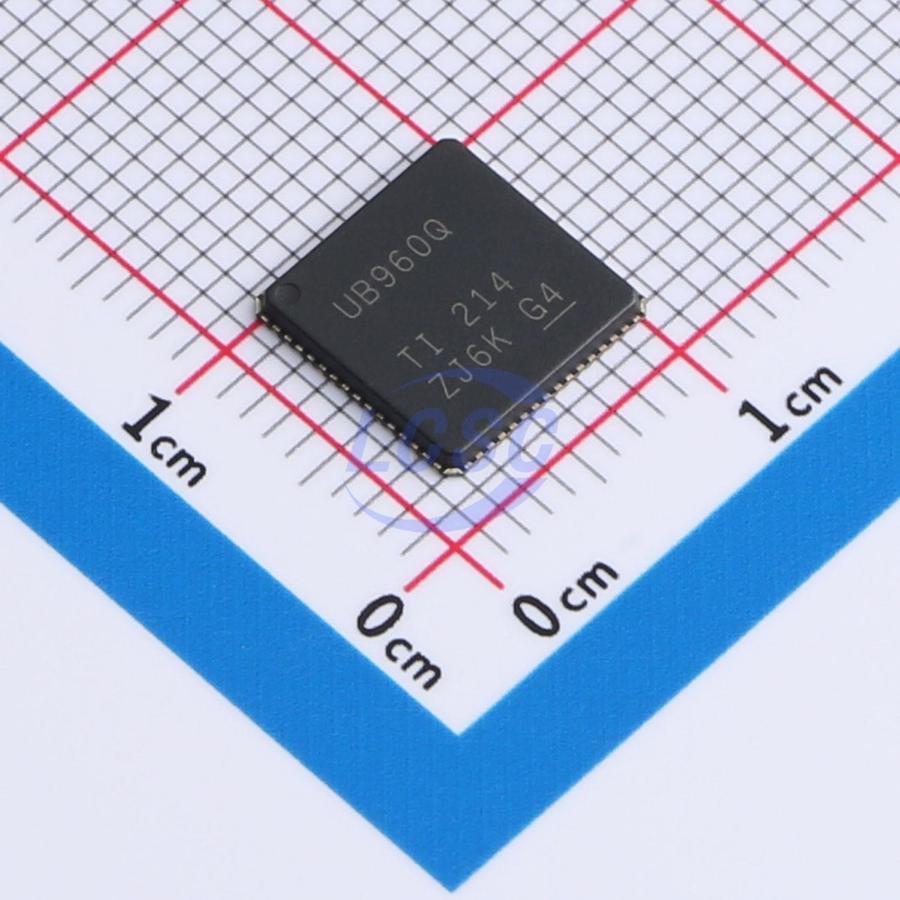

DS90UB960WRTDRQ1

832MHz 4.16Gbps 2 Deserializer QFN-64-EP(9x9) Serializers, Deserializers RoHS

QFN-64-EP(9x9)ROHS3 CompliantActive

DS90UB960-Q1 Quad 4.16Gbps FPD-Link III Deserializer Hub with Two MIPICSI-2 Ports

Manufacturer: TI
Manufacturer part #: DS90UB960WRTDRQ1
Store part #: C2672786
Package / case: QFN-64-EP(9x9)
Category: Serializers, Deserializers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,054 in stock

#C2672786

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,094.77	₹1,094.77
10+	₹930.52	₹9,305.20
30+	₹830.58	₹24,917.40
100+	₹746.71	₹74,671.00

Quantity (min 1)

1 × ₹1,094.77

₹1,094.77

excl. GST

₹1,291.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

DS90UB960WRTDRQ1

₹1,094.77 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output: MIPI
Clock Frequency: 832MHz
Input: FPD-Link
Data Rate: 4.16Gbps
Number of ports: 2
Type: Deserializer
Voltage - Supply: 1.1V;1.8V
Parallel Bit Count Per Channel: 4
Features: Adaptive receive equalization
Operating Temperature: -40℃~+105℃
Control Interface: I2C

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.262 g

Overview

The DS90UB960-Q1 is a versatile sensor hub that aggregates serial sensor data received from 4 independent video data streams via FPD-Link III interfaces. When paired with the DS90UB953-Q1 serializer, the DS90UB960-Q1 can receive data from sensors such as imagers capable of supporting full HD 1080p/2MP resolution at 60Hz frame rates. The received data is aggregated to a MIPI CSI-2 compliant output port interconnected with a downstream processor. The device also features a second MIPI CSI-2 output port, providing additional bandwidth or a secondary replicated output for data logging and parallel processing. The DS90UB960-Q1 integrates 4 FPD-Link III deserializers, each supporting connectivity over cost-effective 50Ω single-ended coaxial or 100Ω differential STP cables. The receive equalizer automatically adapts to compensate for cable loss characteristics, including degradation over time. Each FPD-Link III interface also includes a dedicated low-latency bidirectional control channel that continuously carries I2C, GPIO, and other control information. General-purpose I/O signals — such as those required for camera synchronization and diagnostic functions — also utilize this bidirectional control channel. The DS90UB960-Q1 is AEC-Q100 qualified for automotive applications and is offered in a cost-effective, space-saving 64-pin VQFN package.

Applications

Automotive ADAS
Rear View Camera (RVC)
Surround View System (SVS)
Camera Monitor System (CMS)
Front Camera (FC)
Driver Monitor System (DMS)
Satellite Radar, Time-of-Flight (ToF) and LiDAR Sensors
Modules
Sensor Fusion
Safety and Surveillance

Key features

AEC-Q100 qualified for automotive applications
Device temperature grade 2: -40°C to +105°C operating ambient temperature range
Quad 4.16Gbps deserializer hub aggregates data from up to 4 sensors simultaneously
Supports 2MP sensors with full HD 1080p resolution at 60Hz frame rate
Precise multi-camera synchronization
Compliant with MIPI DPHY version 1.2/CSI-2 version 1.3
2 MIPI CSI-2 output ports
1, 2, 3, 4 data lanes per CSI-2 port
Scalable CSI-2 data rates: 400Mbps/800Mbps/1.2Gbps/1.5Gbps/1.6Gbps per data lane
Port replication mode
Ultra-low data and control path latency with adaptive receive equalization
