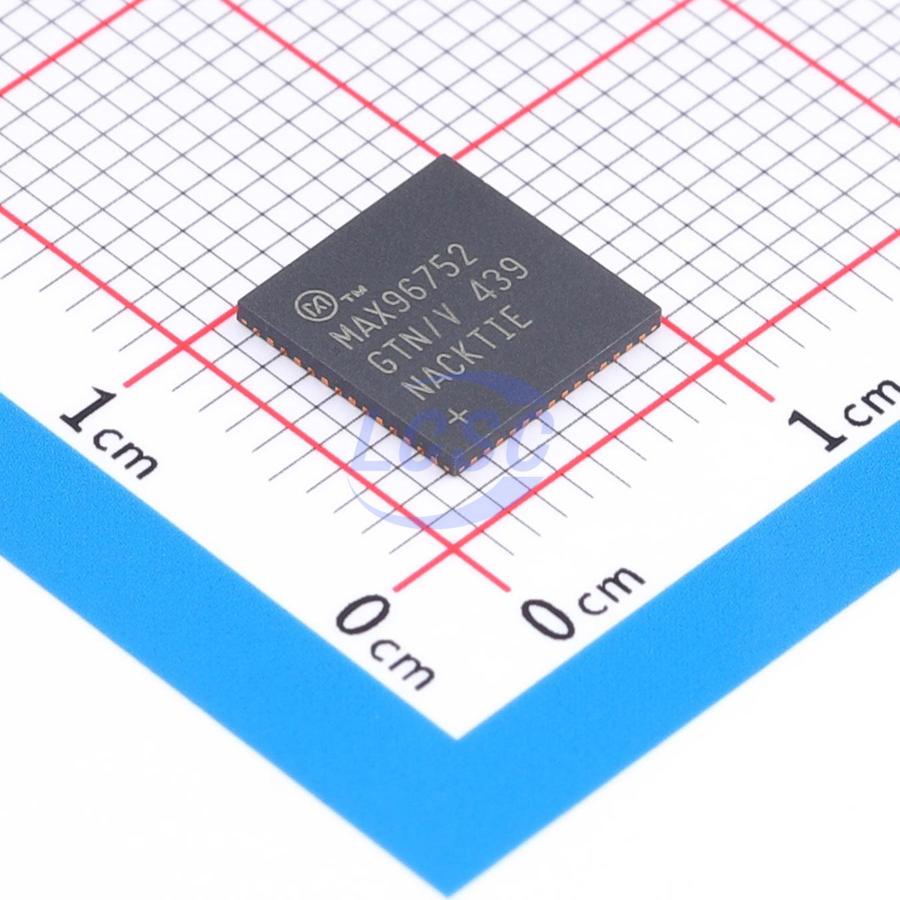

MAX96752GTN/V+T

The MAX96752 deserializers convert a single- or dual-link GMSL serial input to single or dual OLDI. They also send and receive side-channel and peripheral control data, enabling full-duplex, single-wire transmission of video and bidirectional data. The OLDI output can be configured as single-port (4 or 8 lanes) or dual-port (2×4 lanes) for flexibility in driving displays with a variety of resolutions. Each port accommodates pixel clock rates of up to 150MHz, and in dual-port mode, the MAX96752 support a combined pixel clock of up to 300MHz. The GMSL2 concurrent control channel operates in I2C or UART mode. Two additional pass-through I2C or UART channels and a pass-through SPI channel are provided for peripheral control. The bidirectional audio channel supports I2S stereo and up to 8 channels in TDM mode. Operation is specified over the -40°C to +105°C automotive temperature range. The devices are AEC-Q100 qualified. Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specification.

Applications

• Cluster and Heads-Up Displays
• Central Information Displays
• Rear-Seat Infotainment Displays

Key features

• 1×4, 2×4, or 1×8 OLDI Output Lane Configurations
• 3Gbps or 6Gbps Forward Link Rates for System and Power Flexibility
• Full-Duplex Capability Over a Single Wire
• Supports Up to 300MHz PCLK
• Supports Video Replication and Dual-View Splitting for Driving Two Displays
• Uses Low-Cost 50Ω Coax or 100Ω STP Cables
• Forward and Reverse I2S or 7.1 TDM Audio
• Optional Internal VDD Regulator
• ASIL-Relevant Functional Safety Features
• ASIL-B Compliant 16-Bit CRC Protection of Control Channel Data (I2C, UART, SPI, GPIO, Audio)
• Retransmission of All Control Channel Data (I2C, UART, SPI, GPIO, Audio) Upon Error Detection
• Optional 32-Bit Video Line Cyclic Redundancy Check (CRC)
• Selectable Interrupts for Fault Detection
• Video Watermark Detection
• Performance Tools Ensure High Link Margin
• Continuous Adaptive Equalization on GMSL links
• Forward and Reverse Channel Pseudorandom Binary Sequence (PRBS) Generator and Checker for BER Testing of Serial I/O Links
• Eye-Opening Monitor for Continuous Link Margin Diagnosis
• Concurrent Control Channel for Device Configuration and Communicating with Remote Peripherals
• I2C, UART, Pass-Through I2C/UART, SPI, and Tunneled or Register-Programmable GPIO
• Settable Priority Levels
• Eight Hardware Programmable Device Addresses
• Up to 14 Programmable General Purpose Input/Output (GPIO)
• Sleep Mode with Register State Retention
• Compact 8mm x 8mm TQFN Package with Exposed Pad
