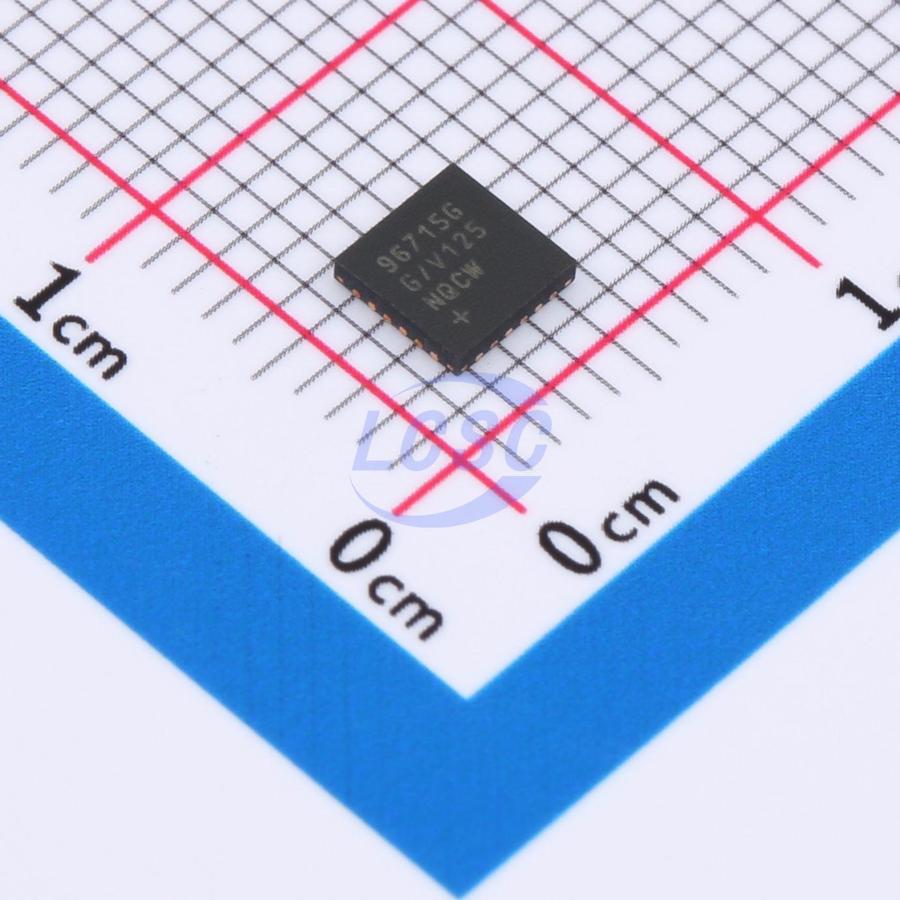

MAX96715GTG/V+T

The MAX96715 is a compact serializer in a 4mmx4mm TQFN package especially suited for automotive camera applications. In high- bandwidth mode, the parallel- clock maximum is 116MHz for 12- bit linear or combined HDR data types. The embedded control channel operates at 9.6kbps to 1Mbps in I/O mode, allowing programming of serializer, deserializer (SerDes), and camera registers independent of video timing. For driving longer cables, the IC has programmable pre- / de- emphasis. Programmable spread spectrum is available on the serial output. The serial output meets ISO 10605 and IEC 61000- 4- 2 ESD standards. The core supply range is 1.7V to 1.9V, and the I/O supply range is 1.7V to 3.6V. The MAX96715 is available in a 24- pin TQFN package with 0.5mm lead pitch, and operates over the - 40℃ to +115℃ temperature range.

Applications

• Automotive Camera Applications

Key features

• Ideal for Safety Camera Applications
• Works with Low-Cost 50Ω Coax (100Ω STP) Cables
• Error Detection of Video/Control Data
• High-Immunity Mode for Robust Control-Channel EMC Tolerance
• Retransmission of Control Data Upon Error Detection
• Best-in-Class Supply Current: 88mA (max)
• Pre-/De-emphasis Allows 15m Cable at Full Speed
• 24-Pin (4mm x 4mm) TQFN Package with 0.5mm Lead Pitch
• High-Speed Data Serialization for Megapixel Cameras
• Up to 1.74Gbps Serial-Bit Rate
• 12.5MHz to 116MHz x 12-Bit + H/V Data through Internal Encoding
• Multiple Modes for System Flexibility
• 9.6kbps to 1Mbps Control Channel in I2C Mode (with Clock Stretch)
• Crosspoint Switch Accepts Any Input Bitmap
• Modes for Encoded VSYNC and HSYNC
• Reduces EMI and Shielding Requirements
• Programmable Output Spread Spectrum
• Tracks Spread Spectrum Applied at the Parallel Input
• 1.7V to 3.6V I/O Supply
• Peripheral Features for Camera Power-Up and Verification
• Built-In PRBS Generator for BER Testing
• Dedicated GPO for Camera Frame-Sync Trigger and Other Uses
• Remote/Local Wake-Up from Sleep Mode
• Meets AEC-Q100 Automotive Specification
• -40°C to +115°C Operating Temperature
• +8kV Contact and ± 15kV Air IEC 61000-4-2 and ISO 10605 ESD Protection
