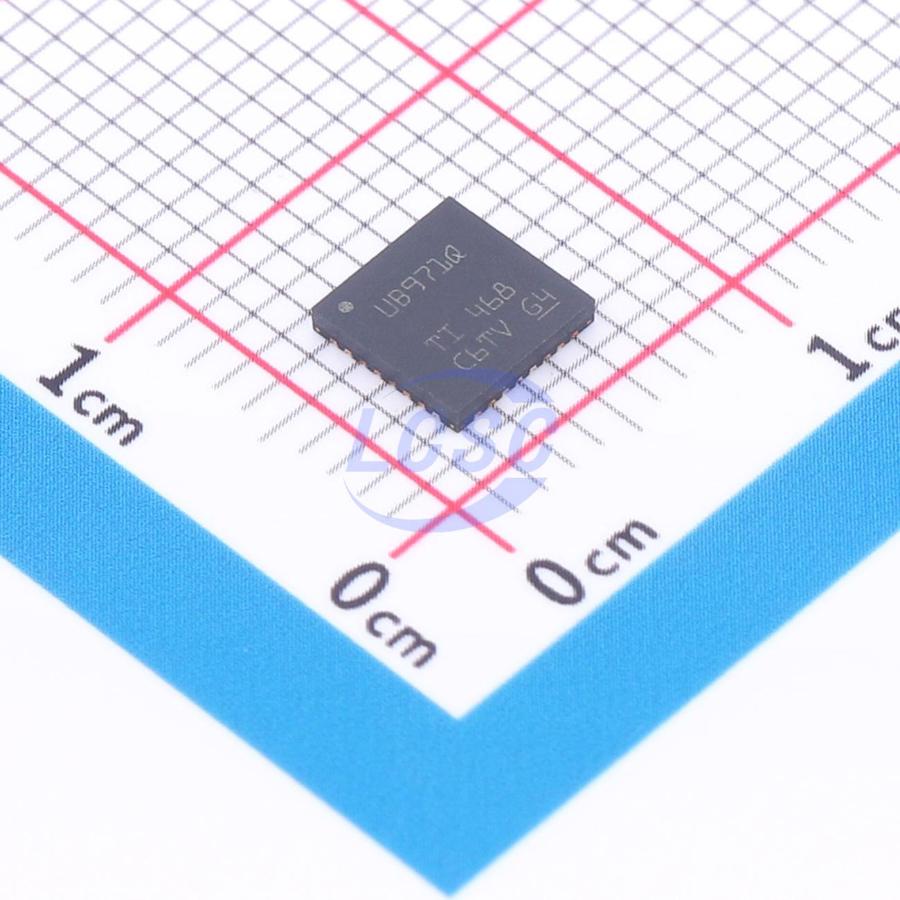

DS90UB971RHBRQ1

7.55Gbps 4 Serializer 1.8V VQFN-32-EP(5x5) Serializers, Deserializers RoHS

VQFN-32-EP(5x5)ROHS3 CompliantActive

DS90UB971-Q1 FPD-LinkIV7.55-Gbps Serializer With CSI-2 Interface for 8MP+ Cameras, RADAR & Other Sensors

Manufacturer: TI
Manufacturer part #: DS90UB971RHBRQ1
Store part #: C22451698
Package / case: VQFN-32-EP(5x5)
Category: Serializers, Deserializers
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,337 in stock

#C22451698

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹1,430.56	₹1,430.56
10+	₹1,217.46	₹12,174.60
30+	₹1,087.65	₹32,629.50
100+	₹978.93	₹97,893.00

Quantity (min 1)

1 × ₹1,430.56

₹1,430.56

excl. GST

₹1,688.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per bag

DS90UB971RHBRQ1

₹1,430.56 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output: FPD-Link
Data Rate: 7.55Gbps
Number of ports: 4
Type: Serializer
Voltage - Supply: 1.8V
Parallel Bit Count Per Channel: 1
Operating Temperature: -40℃~+115℃
Control Interface: I2C

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Bag-packed
Standard pack: 3,000 / Bag
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The DS90UB971-Q1 serializer represents the first generation in FPD-Link IV serializers and is designed to support ultra-high-speed raw data sensors including 8MP+ Imagers, satellite RADAR, LIDAR, and Time-of-Flight (ToF) sensors. The chip delivers an 7.55-Gbps forward channel and an ultra-low latency, 47.1875-Mbps bidirectional control channel and supports power over a single coax (PoC) or STP cable. The DS90UB971-Q1 features advanced data protection and diagnostic features to support ADAS and automotive functional safety. Together with a companion deserializer, the DS90UB971-Q1 delivers precise multi-camera sensor clock and sensor synchronization. The DS90UB971-Q1 is fully AEC-Q100 qualified with a wide temperature range of -40°C to 115°C. The serializer comes in a small 5-mm × 5-mm VQFN package for space-constrained sensor applications.

Applications

Automotive Driver Assistance Systems (ADAS)
Surround View Systems (SVS)
Camera Monitor Systems (CMS)
Forward Vision Cameras (FC)
Driver Monitoring Systems (DMS)
Rear-View Cameras (RVC)
Automotive Satellite RADAR & LIDAR Modules
Time-of-Flight (ToF) Sensors
Security and Surveillance Cameras
Industrial and Medical Imaging

Key features

AEC-Q100 Qualified for Automotive Applications: – Device temperature: -40 to 115°C ambient operating temperature range specified for electrical performance
7.55 Gbps (6 Gbps Video Payload) Supports HighSpeed Sensors Including 8MP+ Imagers
Power-over-Coax (PoC) Compatible Transceiver
Single MIPI D-PHY Port with 4 Lanes – Compliant to MIPI D-PHY v2.1 – 1 Clock Lane and 1, 2, or 4 Configurable Data Lanes – Up to 1.5 Gbps/Lane, 6 Gbps/Port – Supports Polarity Pin Inversion (p/n) – 16 Virtual Channels
Single Port MIPI CSI-2 Receiver – Compliant to MIPI CSI-2 v2.1 – Supports Multiple Data Types and MultiExposure
Advanced Data Protection and Diagnostics Including CRC Data Protection, Sensor Data Integrity Check, I2C Write Protection, Voltage and Temperature Measurement, Programmable Alarm and Line Fault Detection
Flexible Programmable Output Clock Generator
Supports Single-Ended Coaxial or ShieldedTwisted-Pair (STP) Cable
Ultra-Low Latency Bidirectional I2C and GPIO Control Channel Enables ISP Control From ECU
Single 1.8-V Power Supply
Compatible with DS90UB9702-Q1, DS90UB954-Q1, DS90UB936-Q1, DS90UB960-Q1, DS90UB962-Q1 Deserializers
Pin Compatible with DS90UB953-Q1, DS90UB953A-Q1, DS90UB935-Q1, DS90UB951-Q1 Serializers
Small 5-mm × 5-mm VQFN Package and Solution Size for Compact Sensor Module Designs
