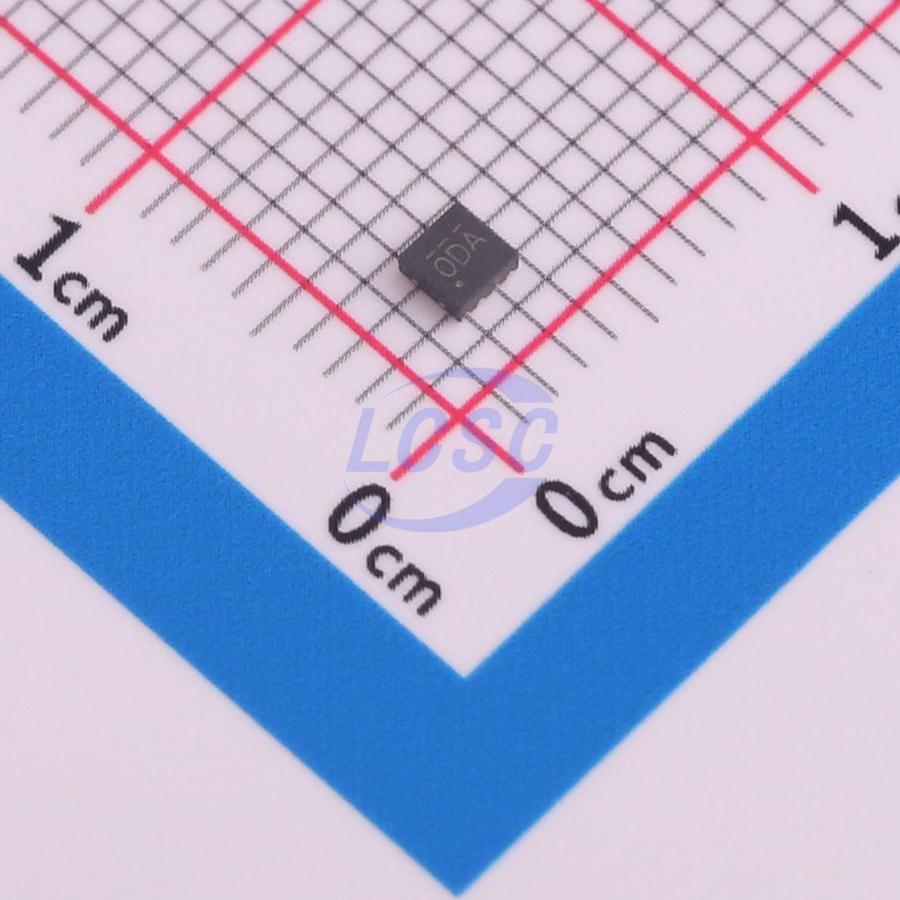

DS9601D8
4.5V~5.5V 2A DFN2x2-8L Gate Drivers
High Voltage Synchronous Rectified Buck MOSFET Driver for Notebook Computer
- Manufacturer
- DSTECH
- Manufacturer part #
- DS9601D8
- Store part #
- C5795658
- Package / case
- DFN2x2-8L
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C5795658
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.46 | ₹117.30 |
| 50+ | ₹18.43 | ₹921.50 |
| 150+ | ₹16.26 | ₹2,439.00 |
| 500+ | ₹13.57 | ₹6,785.00 |
| 3,000+ | ₹12.37 | ₹37,110.00 |
| 6,000+ | ₹11.66 | ₹69,960.00 |
5 × ₹23.46
₹117.30
excl. GST
₹138.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DS9601D8
₹117.30 for 5 + GST
Specifications
- Low Level Delay Time
- 20ns
- High Level Delay Time
- 35ns
- Quiescent Current
- 80uA
- Voltage - Supply
- 4.5V~5.5V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 2A
- Rise Time
- 8ns
- Fall Time
- 4ns
- Features
- Enable shutdown;Interleaved conduction protection;Dead-time control
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The DS9601 is a high frequency, dual MOSFET driver specifically designed to drive two power N-MOSFETS in a synchronous-rectified buck converter topology. It is especially suited for mobile computing applications that require high efficiency and excellent thermal performance. This driver, combined with multi-phase Buck PWM controllers, provides a complete core voltage regulator solution for advanced micro processors. The drivers are capable of driving a 3nF load with fast rising/falling time and fast propagation delay. This device implements bootstrapping on the upper gates with only a single external capacitor. This reduces implementation complexity and allows the use of higher performance, cost effective, N-MOSFETs. Adaptive shoot through protection is integrated to prevent both MOSFETs from conducting simultaneously. The DS9601 is available in DFN2x2-8L Package
Applications
- Notebook PC Applications
- Core Voltage Supplies for Intel / AMD Mobile Microprocessors
- High Frequency Low Profile DC/DC Converters
- High Current Low Output Voltage DC/DC Converters
- High Input Voltage DC/DC Converters
Key features
- Output Current up to 3A
- Drives Two N-MOSFETs
- Adaptive Shoot-Through Protection
- 0.5Ω On-Resistance, 4A Sink Current Capability
- Supports High Switching Frequency
- Tri-State PWM Input for Power Stage Shutdown
- Output Disable Function
- Integrated Boost Switch
- Low Bias Supply Current
- VCC POR Feature Integrated
- DFN2x2-8L Package Available
