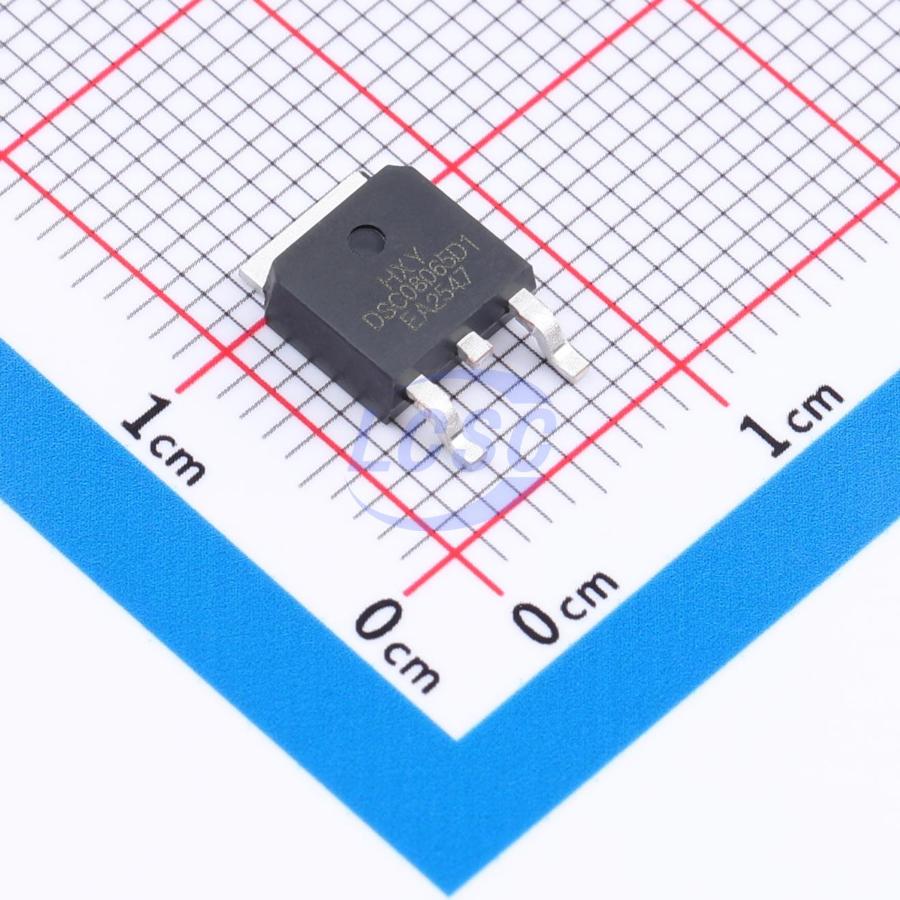

HXY MOSFETDatasheet (PDF)
DSC08065D1-HXY
1 Independent 650V 1.3V@8A 30A TO-252-2L Single Diodes
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DSC08065D1-HXY
- Store part #
- C53468057
- Package / case
- TO-252-2L
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C53468057
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹253.35 | ₹253.35 |
| 10+ | ₹215.36 | ₹2,153.60 |
| 30+ | ₹191.65 | ₹5,749.50 |
| 100+ | ₹167.29 | ₹16,729.00 |
| 500+ | ₹156.38 | ₹78,190.00 |
| 1,000+ | ₹151.55 | ₹1,51,550.00 |
1 × ₹253.35
₹253.35
excl. GST
₹298.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DSC08065D1-HXY
₹253.35 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.3V@8A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 30A
- Non-Repetitive Peak Forward Surge Current
- 64A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.422 g
Overview
This product series delivers advanced performance. It is designed for high-frequency applications requiring high efficiency and reliability.
Applications
- Uninterruptible Power Supply (UPS)
- Power Inverters
- High-Performance Switched-Mode Power Supplies (SMPS)
- Power Factor Correction
Key features
- Low conduction loss due to low forward voltage (VF)
- Extremely low switching loss due to minimal charge (QC)
- High durability due to superior surge current capability
- Industrial-standard quality and reliability
