HXY MOSFETDatasheet (PDF)

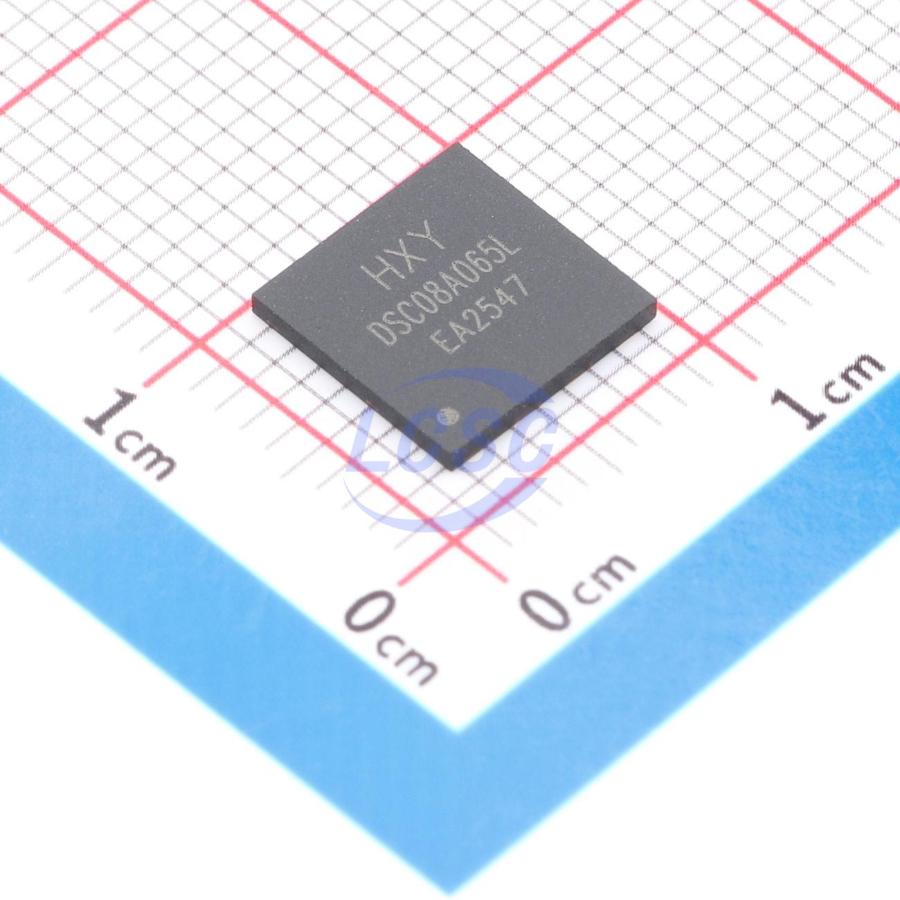

DSC08A065LP-13-HXY
1 Independent 650V 1.42V@8A 8A DFN-5B(8x8) Single Diodes
DFN-5B(8x8)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- DSC08A065LP-13-HXY
- Store part #
- C53468046
- Package / case
- DFN-5B(8x8)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C53468046
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹404.59 | ₹404.59 |
| 10+ | ₹347.16 | ₹3,471.60 |
| 30+ | ₹313.09 | ₹9,392.70 |
| 100+ | ₹278.58 | ₹27,858.00 |
| 500+ | ₹262.72 | ₹1,31,360.00 |
| 1,000+ | ₹255.44 | ₹2,55,440.00 |
1 × ₹404.59
₹404.59
excl. GST
₹477.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DSC08A065LP-13-HXY
₹404.59 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.42V@8A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 8A
- Non-Repetitive Peak Forward Surge Current
- 60A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Switch-mode power supplies
- Power factor correction
- Motor drivers
Key features
- 650V Schottky rectifier
- Zero reverse recovery current
- Zero forward recovery voltage
- High-frequency operation
- Temperature-independent switching characteristics
- Extremely fast switching
- Positive temperature coefficient of forward voltage VF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IDL08G65C5-HXY#C51896304HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 19 | ₹253.35 · 19 in stock | View |
 | S3D08065L-HXY#C51896307HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 6 | ₹206.12 · 6 in stock | View |
 | FFSM0665A-HXY#C53468043HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 48 | ₹324.44 · 48 in stock | View |
 | WNSC2D08650TJ-HXY#C53468100HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 48 | ₹217.73 · 48 in stock | View |
 | STPSC6H065DLF-HXY#C51896362HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 17 | ₹253.35 · 17 in stock | View |
