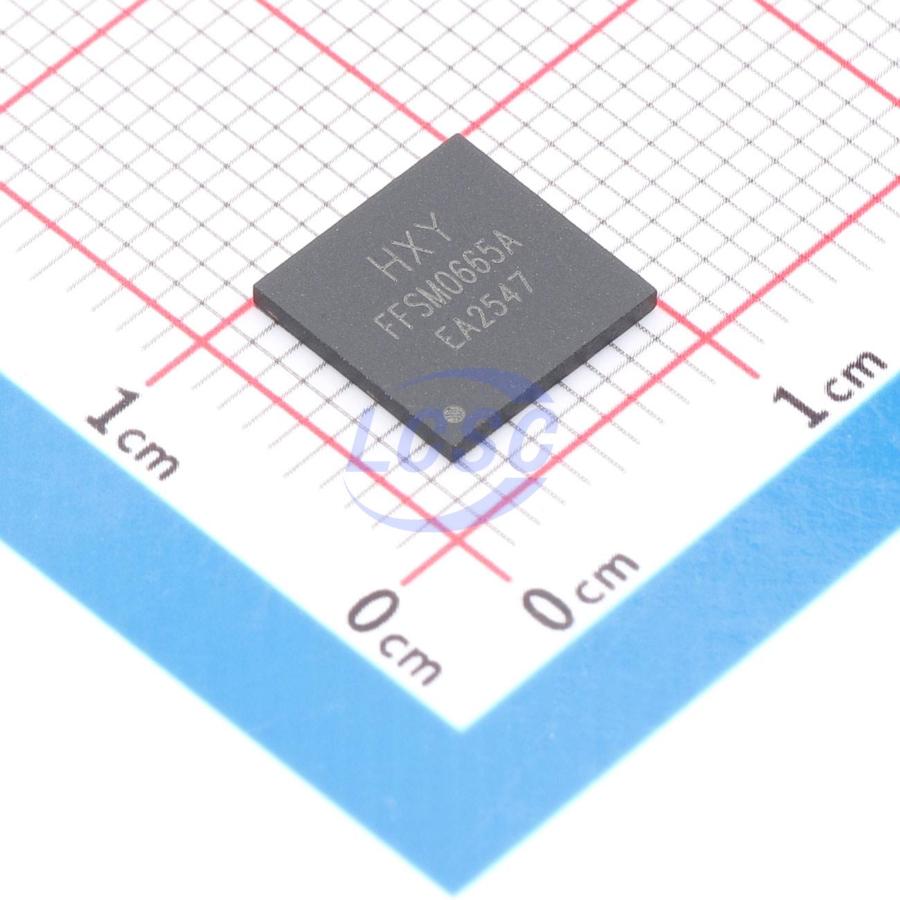

HXY MOSFETDatasheet (PDF)
FFSM0665A-HXY
1 Independent 650V 1.42V@8A 8A DFN-5B(8x8) Single Diodes
DFN-5B(8x8)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- FFSM0665A-HXY
- Store part #
- C53468043
- Package / case
- DFN-5B(8x8)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C53468043
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹324.44 | ₹324.44 |
| 10+ | ₹275.79 | ₹2,757.90 |
| 30+ | ₹245.58 | ₹7,367.40 |
| 100+ | ₹214.30 | ₹21,430.00 |
| 500+ | ₹200.16 | ₹1,00,080.00 |
| 1,000+ | ₹194.15 | ₹1,94,150.00 |
1 × ₹324.44
₹324.44
excl. GST
₹382.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
FFSM0665A-HXY
₹324.44 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1.42V@8A
- Reverse Leakage Current (Ir)
- 50uA@650V
- Current - Rectified
- 8A
- Non-Repetitive Peak Forward Surge Current
- 60A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
Applications
- Switch-mode power supplies
- Power factor correction
- Motor drives
Key features
- 650V Schottky rectifier
- Zero reverse recovery current
- Zero forward recovery voltage
- High-frequency operation
- Temperature-independent switching characteristics
- Ultra-fast switching speed
- Positive temperature coefficient of forward voltage VF
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IDL08G65C5-HXY#C51896304HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 19 | ₹253.35 · 19 in stock | View |
 | S3D08065L-HXY#C51896307HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 6 | ₹206.12 · 6 in stock | View |
 | DSC08A065LP-13-HXY#C53468046HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 49 | ₹404.59 · 49 in stock | View |
 | WNSC2D08650TJ-HXY#C53468100HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 48 | ₹217.73 · 48 in stock | View |
 | STPSC6H065DLF-HXY#C51896362HXY MOSFET · DFN-5B(8x8) | HXY MOSFET | DFN-5B(8x8) | 17 | ₹253.35 · 17 in stock | View |
