EA3301

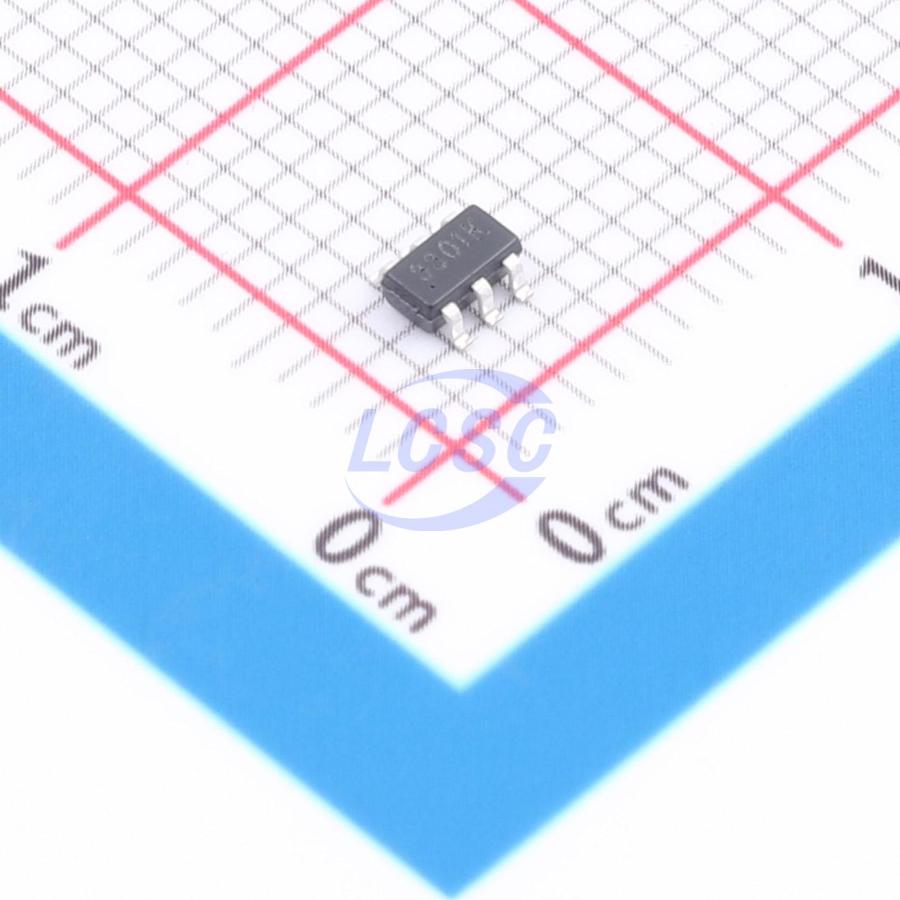

Battery Charging IC Battery Protection IC SOT-23-6
IC BATT CHG PROT SOT-23-6
- Manufacturer
- Everanalog IC design
- Manufacturer part #
- EA3301
- Store part #
- C47325383
- Package / case
- SOT-23-6
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29,680 in stock
#C47325383
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.39 | ₹47.80 |
| 200+ | ₹2.08 | ₹416.00 |
| 600+ | ₹1.91 | ₹1,146.00 |
| 3,000+ | ₹1.80 | ₹5,400.00 |
| 9,000+ | ₹1.71 | ₹15,390.00 |
| 21,000+ | ₹1.67 | ₹35,070.00 |
20 × ₹2.39
₹47.80
excl. GST
₹56.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EA3301
₹47.80 for 20 + GST
Specifications
- Operating Temperature
- 0℃~+45℃
- Quiescent Current
- 5uA
- 0V Battery Charge
- Not supported
- Operating Voltage
- 4.5V~5.5V
- Features
- Trickle charging;Constant current charging;Constant voltage charging;Charge termination;Overcurrent Protection;Short-Circuit Protection;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC;Protection IC
- Charge Current - Max
- 295mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.046 g
Overview
This chip integrates linear charging and load-switch discharge functions with LED status indication. The charging section features trickle, constant-current, and constant-voltage management, with a constant-current charging current of 250mA, a full-charge cutoff voltage of 4.2V at ±1% accuracy, and integrated battery under-voltage and over-temperature protection. The discharge section integrates a 3.5A load switch, supports direct input via microphone, and provides short-circuit, over-current, and timeout protection during discharge. The chip's standby power consumption is 5uA. An external LED indicates charging, discharging, and operating states, and supports a gradual brightness ramp-up and ramp-down effect for cigarette lighting. The heating coil impedance requirement is 1.2Ω or above.
Applications
- E-cigarette
Key features
- Integrated trickle, constant current, and constant voltage charging management
- Constant current charging: 250mA
- Full charge voltage: 4.2V, accuracy ±1%
- Integrated battery under-voltage and over-temperature protection
- Integrated 3.5A discharge load switch
- Direct microphone input support
- Integrated discharge short-circuit protection
- Integrated discharge over-current protection
- Discharge timeout protection support
- Ultra-low standby power consumption: 5uA
- Integrated LED charge/discharge status indicator
- Heating wire impedance: 1.2Ω or above
- Package: SOT23-6
