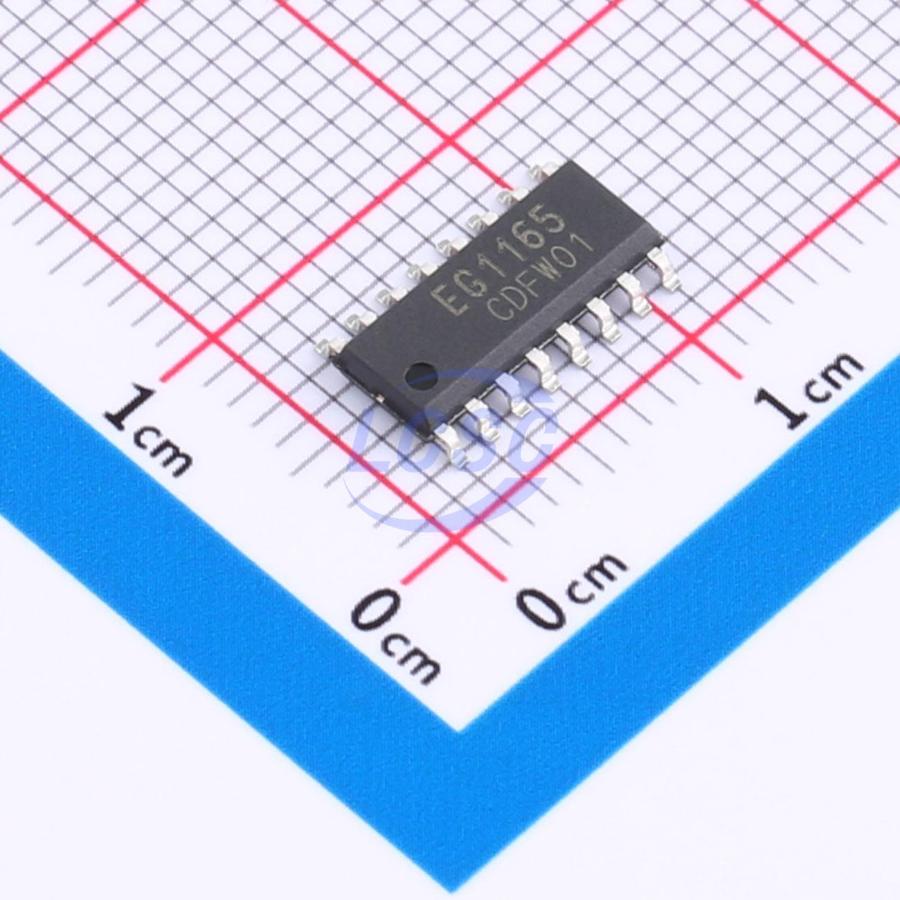

EG1165
Converter Offline Half-Bridge Topology 112kHz~124kHz SOP-16
SOP-16ROHS CompliantActive
Half-bridge PWM control chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1165
- Store part #
- C480649
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,695 in stock
#C480649
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹97.36 | ₹97.36 |
| 10+ | ₹77.37 | ₹773.70 |
| 30+ | ₹67.37 | ₹2,021.10 |
| 100+ | ₹57.38 | ₹5,738.00 |
| 500+ | ₹56.94 | ₹28,470.00 |
| 1,000+ | ₹53.90 | ₹53,900.00 |
1 × ₹97.36
₹97.36
excl. GST
₹114.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG1165
₹97.36 for 1 + GST
Specifications
- Operating Temperature
- -45℃~+125℃
- Output Current
- 2A;2.5A
- Frequency - Switching
- 112kHz~124kHz
- Voltage - Breakdown
- 600V
- Voltage - Supply
- 10V~20V
- Topology
- Half-Bridge
- Features
- Adjustable soft-start;Under-voltage lockout;Leading edge blanking;Adjustable current limiting;Hiccup current limiting;Under Voltage Protection;Over Current Protection
- Duty Cycle(Max)
- 47.5%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.275 g
Overview
A high-voltage half-bridge PWM control IC integrating a 5V reference, oscillator, error amplifier, current limiting protection, soft-start circuit, and half-bridge driver. Ideal for high-voltage, high-power applications, supporting up to 600V supply voltage input when paired with external high-voltage MOSFETs.
Applications
- Electric vehicle isolated converters
- High-power high-frequency switching power supplies
- UPS power supplies
- Electric tricycle chargers
- Electric motorcycle chargers
- Industrial power supplies
- High-power LED driver power supplies
- Inverter power supplies
Key features
- Half-bridge PWM control IC with integrated 600V half-bridge gate driver
- Oscillator frequency set via single external capacitor (20Hz - 500KHz)
- Internal 5V voltage reference
- UVLO undervoltage lockout:
- Vcc pin turn-on threshold: 16V
- Vcc pin turn-off threshold: 8V
- Cycle-by-cycle current limiting for MOSFETs
- Built-in soft-start circuit
- PWM latch function to suppress multiple pulses
- Package: SOP16
