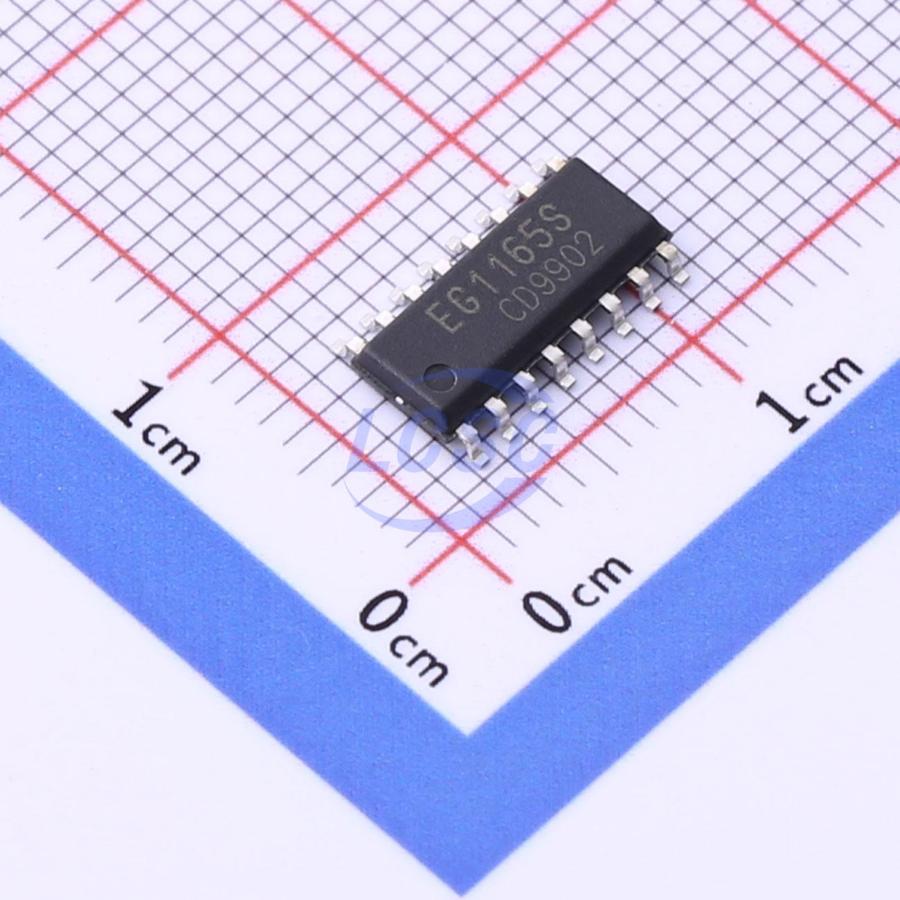

EG1165S
Converter Offline Half-Bridge Topology 112kHz~124kHz SOP-16
SOP-16ROHS CompliantActive
Half-bridge PWM control chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1165S
- Store part #
- C2987435
- Package / case
- SOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,259 in stock
#C2987435
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.50 | ₹98.50 |
| 10+ | ₹78.49 | ₹784.90 |
| 30+ | ₹68.28 | ₹2,048.40 |
| 100+ | ₹60.66 | ₹6,066.00 |
| 500+ | ₹54.80 | ₹27,400.00 |
| 1,000+ | ₹51.76 | ₹51,760.00 |
1 × ₹98.50
₹98.50
excl. GST
₹116.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG1165S
₹98.50 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Current
- 2.5A
- Frequency - Switching
- 112kHz~124kHz
- Voltage - Breakdown
- 600V
- Voltage - Supply
- 10V~20V
- Topology
- Half-Bridge
- Features
- Adjustable soft-start;Under-voltage lockout;Leading edge blanking;Adjustable current limiting;Over Current Protection;Under Voltage Protection;Short Circuit Protection
- Duty Cycle(Max)
- 47.5%
- Working Mode
- PWM Modulation
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.86 g
Overview
High-voltage half-bridge PWM controller IC with integrated 5V reference, oscillator, error amplifier, current limiting protection, soft-start circuit, and half-bridge driver. Ideal for high-voltage, high-power applications; supports up to 600V supply voltage input when paired with external high-voltage MOSFETs.
Applications
- Electric vehicle isolated converters
- High-power high-frequency switching power supplies
- UPS power supplies
- Electric tricycle chargers
- Electric motorcycle chargers
- Industrial power supplies
- High-power LED driver power supplies
- Inverter power supplies
Key features
- Half-bridge PWM controller IC with integrated 600V half-bridge gate driver
- Single external capacitor sets operating frequency (20Hz - 500KHz)
- Built-in 5V reference voltage
- UVLO undervoltage lockout:
- Vcc pin turn-on voltage 16V - EG1165
- Vcc pin turn-off voltage 8V - EG1165
- Vcc pin turn-on voltage 8.5V - EG1165S
- Vcc pin turn-off voltage 7.5V - EG1165S
- Cycle-by-cycle current limiting for MOSFETs
- Built-in soft-start circuit
- PWM latch function, inhibits multiple pulses
- Package: SOP16
