EG1168

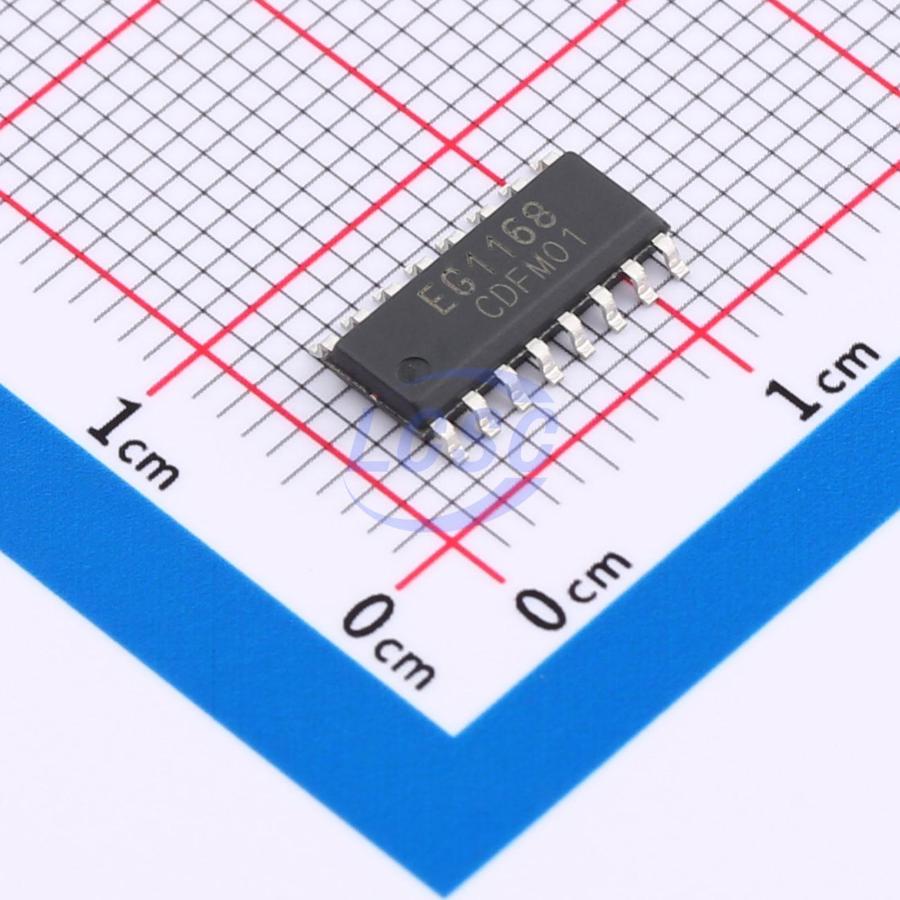

Half-Bridge Gate Driver IC MOSFET SOP-16
Special driver chip for half-bridge push-pull power supply
- Manufacturer
- EG Micro
- Manufacturer part #
- EG1168
- Store part #
- C20416230
- Package / case
- SOP-16
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,663 in stock
#C20416230
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.06 | ₹68.06 |
| 10+ | ₹60.74 | ₹607.40 |
| 30+ | ₹57.07 | ₹1,712.10 |
| 100+ | ₹53.41 | ₹5,341.00 |
| 500+ | ₹51.25 | ₹25,625.00 |
| 1,000+ | ₹49.97 | ₹49,970.00 |
1 × ₹68.06
₹68.06
excl. GST
₹80.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG1168
₹68.06 for 1 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 1mA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -45℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 2A
- Rise Time
- 120ns
- Fall Time
- 80ns
- Features
- Enable shutdown;Interleaved conduction protection
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.279 g
Overview
EG1168 is a cost-effective, multi-function half-bridge and push-pull power supply gate driver IC. It integrates a 5V linear regulator, op-amp, MOS peak current protection, VCC UVLO, VB UVLO, two-channel symmetric half-bridge and push-pull PWM outputs, latch circuit, level shift circuit, pulse filter circuit, and output driver circuit. It is ideal for digital half-bridge and digital push-pull power supply applications. The EG1168 supports a high-side operating voltage up to 600V, a wide low-side VCC supply voltage range of 10V–20V, and a VCC quiescent current of less than 1.5mA. The IC features a latch function to prevent simultaneous conduction of the output power switches. The PWMIN input channel has a built-in 200K pull-down resistor that keeps both high-side and low-side power MOSFETs off when the input is floating. Output drive current capability is I0+/− 2A/2.5A. Available in SOP16 package.
Applications
- Industrial half-bridge power supplies
- Induction cooktops
- EV chargers
- Inverter power supplies
- Telecom power systems
- Isolated DC-DC
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- Low-side VCC voltage range: 10V - 20V
- Output current capability I0+/- 2A/2.5A
- High-side MOSFET cycle-by-cycle peak current protection
- Low-side MOSFET cycle-by-cycle peak current protection
- Single PWM input internally generates two symmetrical half-bridge and push-pull PWM outputs
- Built-in latch function, completely preventing simultaneous conduction of high-side and low-side switches
- Integrated 5V linear power output
- Integrated rail-to-rail op-amp
- SD cycle-by-cycle protection
- Low-side supply VCC undervoltage protection
- High-side supply VB undervoltage protection
- Package: SOP16
