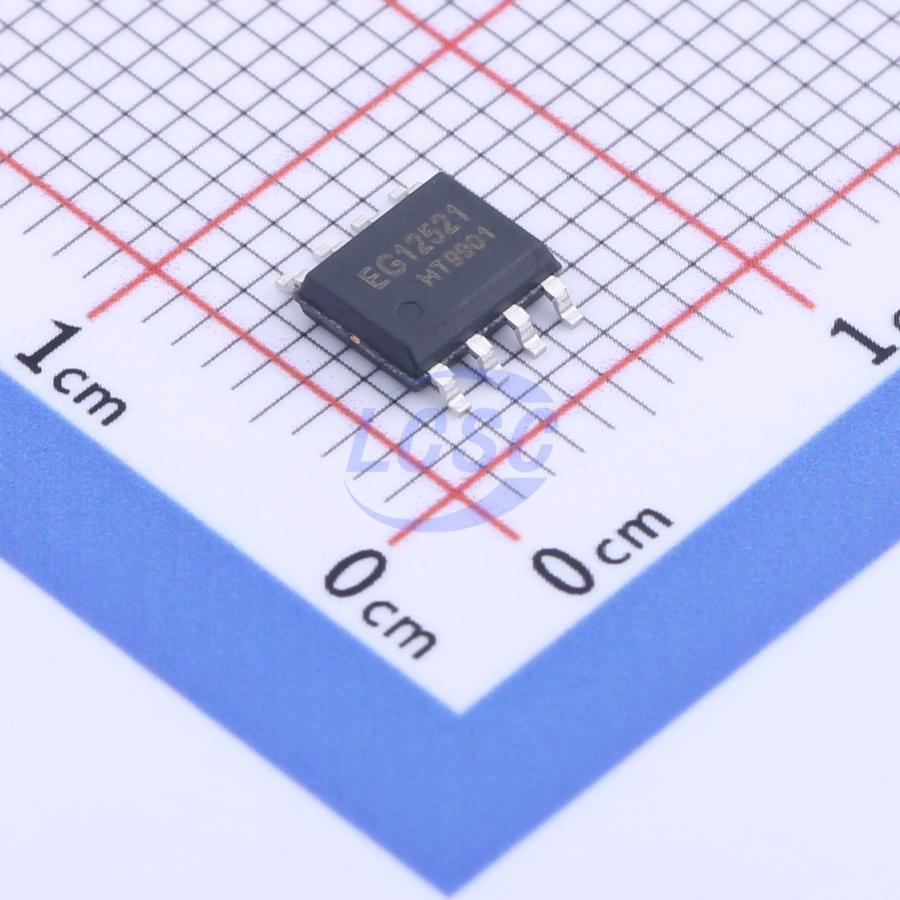

EG12521
Low Side High Side Gate Driver IC MOSFET SOP-8
Dual-transistor forward high-voltage driver chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG12521
- Store part #
- C2929087
- Package / case
- SOP-8
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,550 in stock
#C2929087
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.54 | ₹157.70 |
| 50+ | ₹25.28 | ₹1,264.00 |
| 150+ | ₹22.60 | ₹3,390.00 |
| 500+ | ₹19.25 | ₹9,625.00 |
| 2,500+ | ₹16.17 | ₹40,425.00 |
| 4,000+ | ₹15.27 | ₹61,080.00 |
5 × ₹31.54
₹157.70
excl. GST
₹186.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG12521
₹157.70 for 5 + GST
Specifications
- Features
- Dead-time control
- Driven Configuration
- High Side;Low Side
- Number of Channels
- 2
- Voltage - Supply
- 4V~20V
- Propagation Delay tpHL
- 70ns
- Operating Temperature
- -45℃~+125℃
- Supply Current (Iq)
- 1uA
- Load Type
- MOSFET
- Input Logic Level - High
- 2.5V
- Current - Output High(IOH)
- 800mA
- Propagation Delay tpLH
- 100ns
- Input Logic Level - Low
- -300mV~1V
- Current - Output Low(IOL)
- 1.2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Overview
A cost-effective dedicated dual-transistor forward high-voltage gate driver IC, integrating logic signal input processing, level shift, pulse filter, and output matching driver circuits. Designed for dual-transistor forward power supplies, brushless motor controllers, and DC-DC converter driver circuits. High-side operating voltage up to 600V; low-side Vcc supply voltage range: 4V–20V. The HIN input channel features a built-in 200K pull-down resistor, and the LIN input channel features a built-in 200K pull-down resistor, keeping both high-side and low-side power MOSFETs off when inputs are floating. Output current capability: 10 +/-0.8/1.2A. SOP8 package.
Applications
- Dual-transistor forward power supply
- Wireless charging driver
- Variable frequency water pump controller
- DC-DC power supply
- Brushless motor driver
- Mobile power high-voltage fast-charging switching power supply
Key features
- Dual-switch forward converter 600V high-voltage drive
- High-side floating bootstrap power supply design
- HIN, LIN compatible with 0–20V input voltage
- Quiescent current less than 1uA
- Maximum switching frequency up to 500KHz
- Low-side VCC voltage range 4V–20V
- Output current capability I0 +/- Δ0.8A / 1.2A
- HO, LO matched channel output
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components
- Package: SOP8
