EG MicroDatasheet (PDF)

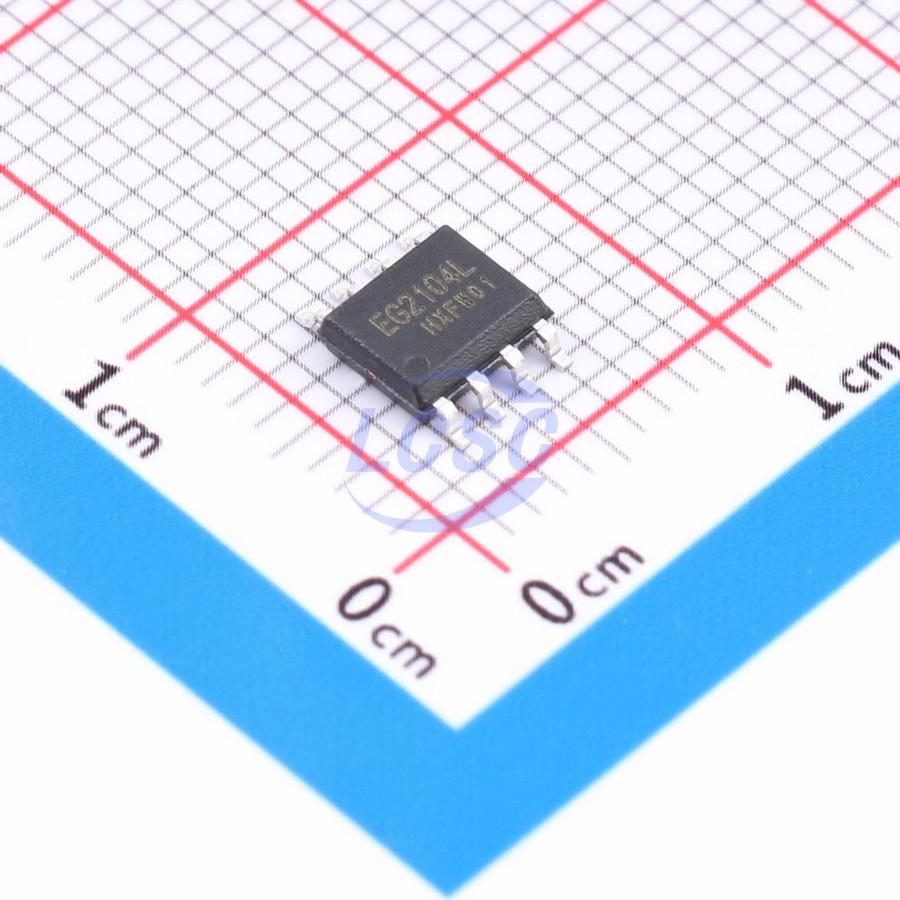

EG2104L
10V~25V 600mA 300mA SOP-8 Gate Drivers
SOP-8RoHSActive
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2104L
- Store part #
- C53368404
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,100 in stock
#C53368404
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.44 | ₹112.20 |
| 50+ | ₹17.74 | ₹887.00 |
| 150+ | ₹15.73 | ₹2,359.50 |
| 500+ | ₹13.22 | ₹6,610.00 |
| 2,500+ | ₹12.09 | ₹30,225.00 |
| 4,000+ | ₹11.43 | ₹45,720.00 |
5 × ₹22.44
₹112.20
excl. GST
₹132.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2104L
₹112.20 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Low Level Delay Time
- 700ns
- High Level Delay Time
- 120ns
- Quiescent Current
- 100uA
- Input Logic Level - High
- 2.8V
- Voltage - Supply
- 10V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
