EG2106

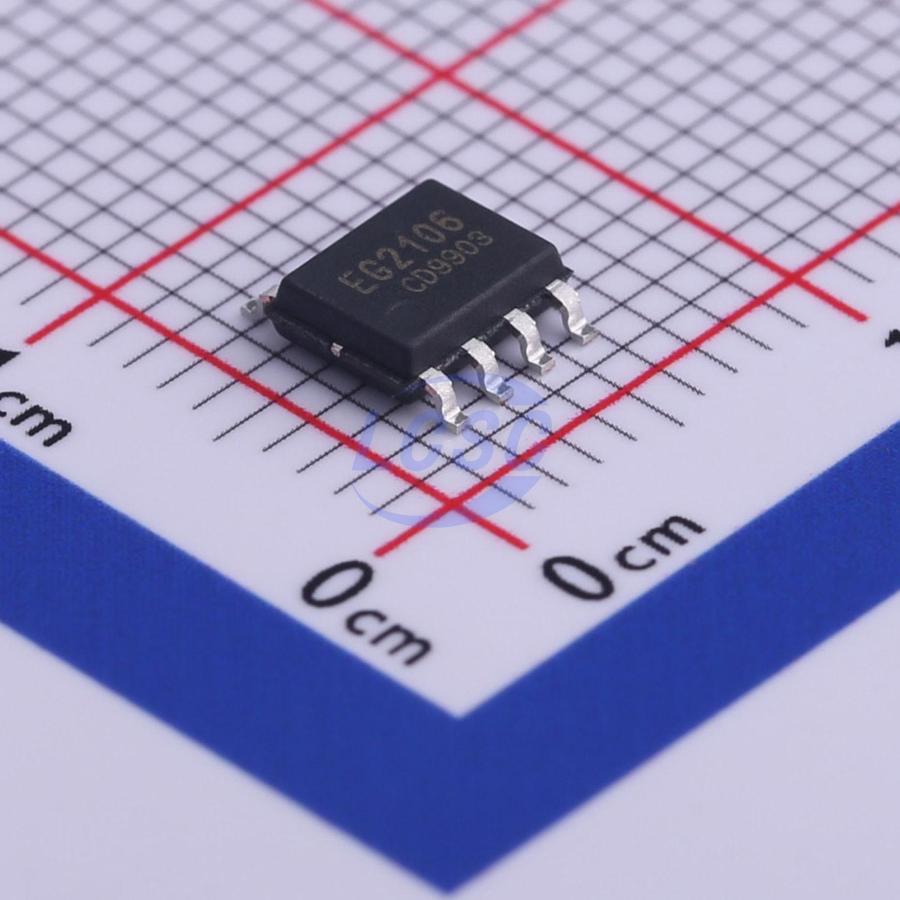

Low Side High Side Gate Driver IC MOSFET SOIC-8
MOSFET driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2106
- Store part #
- C480655
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,470 in stock
#C480655
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹39.36 | ₹196.80 |
| 50+ | ₹29.90 | ₹1,495.00 |
| 150+ | ₹25.85 | ₹3,877.50 |
| 500+ | ₹20.80 | ₹10,400.00 |
| 2,500+ | ₹20.64 | ₹51,600.00 |
| 4,000+ | ₹19.28 | ₹77,120.00 |
5 × ₹39.36
₹196.80
excl. GST
₹232.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2106
₹196.80 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 200uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- High Side;Low Side
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 70ns
- Fall Time
- 35ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
EG2106 is a cost-effective gate driver IC dedicated to MOSFETs and IGBTs. It integrates logic signal input processing, undervoltage lockout (UVLO), level shift, pulse filtering, and output drive circuits, designed specifically for brushless motor controllers and DC-DC power supply drive circuits. The EG2106 supports a high-side operating voltage up to 600V and a wide low-side Vcc supply voltage range of 10~20V. The HIN input channel has a built-in 200K pull-down resistor, and the LIN input channel has a built-in 200K pull-down resistor, ensuring both the high-side and low-side power MOSFETs remain off when the inputs are floating. Output current capability is IO +/-0.3/0.6A. Available in SOP8 package.
Applications
- Mobile power high-voltage fast-charge switching power supply
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 10V - 20V
- Output current capability: |0 +/-0.3A/0.6A
- Built-in dead-time control circuit
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components; package: SOP-8
