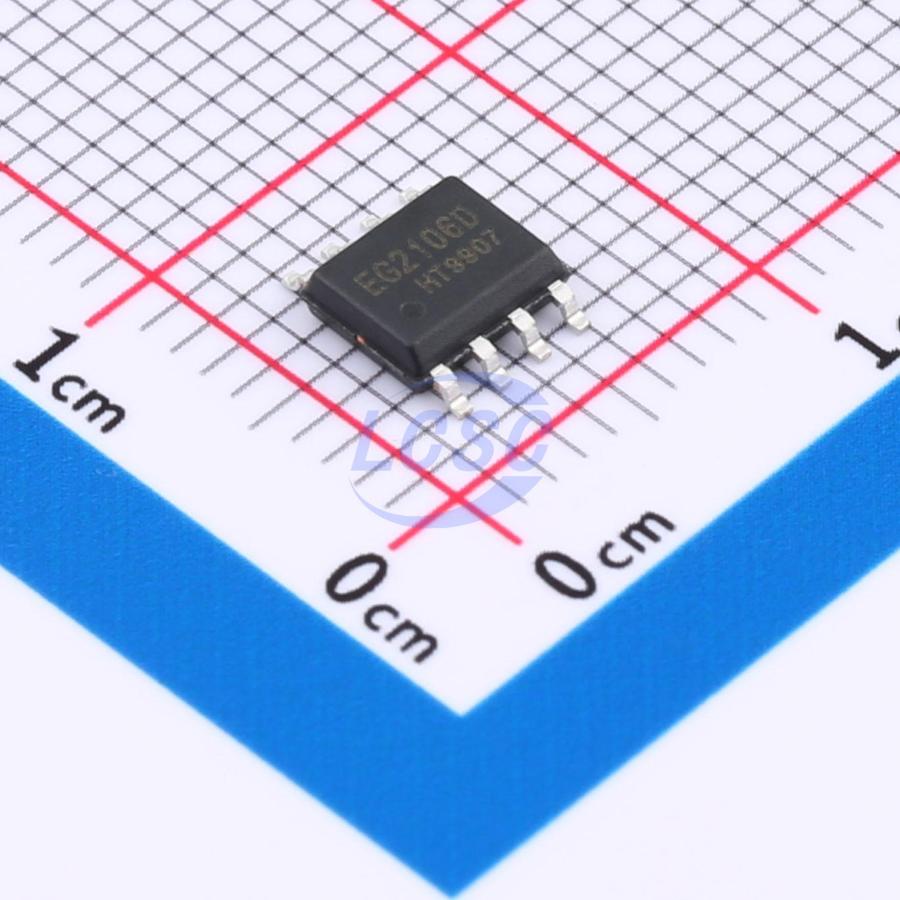

EG2106D
Half-Bridge Gate Driver IC MOSFET SOP-8
High-voltage half-bridge MOSFET driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2106D
- Store part #
- C2904138
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,340 in stock
#C2904138
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.93 | ₹189.65 |
| 50+ | ₹29.25 | ₹1,462.50 |
| 150+ | ₹25.52 | ₹3,828.00 |
| 500+ | ₹20.88 | ₹10,440.00 |
| 2,500+ | ₹20.53 | ₹51,325.00 |
| 4,000+ | ₹19.30 | ₹77,200.00 |
5 × ₹37.93
₹189.65
excl. GST
₹223.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2106D
₹189.65 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~1V
- Quiescent Current
- 80uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 60ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.173 g
Overview
EG2106D is a cost-effective gate driver IC dedicated to MOSFET and IGBT, integrating logic signal input processing, undervoltage lockout (UVLO), level shift, pulse filtering, and output driver circuits. It is designed for brushless motor controllers and DC-DC converter driver circuits. The EG2106D supports a high-side operating voltage up to 600V, with a wide low-side Vcc supply voltage range of 10V~20V. The HIN input channel has a built-in 200K pull-down resistor, and the LIN input channel has a built-in 200K pull-down resistor, ensuring both the high-side and low-side power MOSFETs remain off when the inputs are floating. Output current capability IO(+/-) is 0.3/0.6A. Available in SOP8 package.
Applications
- Mobile power high-voltage fast-charging switching power supply
- Wireless charging driver
- Variable frequency pump controller
- DC-DC power supply
- Brushless motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum frequency support up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 10V - 20V
- Output current capability IO(+/-): 0.3A/0.6A
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components
- Package: SOP-8
- Lead-free, halogen-free, RoHS compliant
