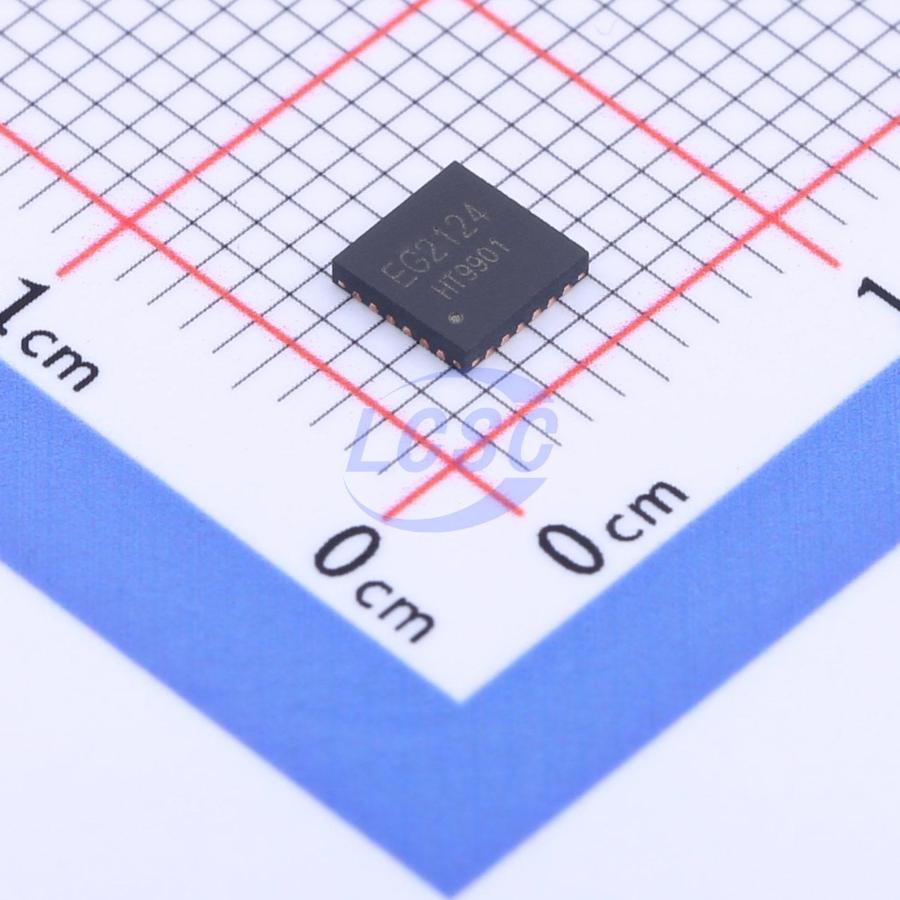

EG2124
5V~20V 1.2A 800mA QFN-24-EP(4x4) Gate Drivers
Three-phase independent half-bridge driver chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2124
- Store part #
- C2856308
- Package / case
- QFN-24-EP(4x4)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,210 in stock
#C2856308
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.58 | ₹217.90 |
| 50+ | ₹34.16 | ₹1,708.00 |
| 150+ | ₹30.12 | ₹4,518.00 |
| 500+ | ₹25.65 | ₹12,825.00 |
| 2,500+ | ₹23.40 | ₹58,500.00 |
| 4,000+ | ₹22.07 | ₹88,280.00 |
5 × ₹43.58
₹217.90
excl. GST
₹257.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2124
₹217.90 for 5 + GST
Specifications
- Input Logic Level - Low
- 1V
- Low Level Delay Time
- 320ns
- High Level Delay Time
- 120ns
- Quiescent Current
- 150uA
- Input Logic Level - High
- 2.5V
- Voltage - Supply
- 5V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge;Three Phase
- Current - Output Low(IOL)
- 1.2A
- Rise Time
- 35ns
- Fall Time
- 25ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 800mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.165 g
Overview
EG2124A is a cost-effective gate driver IC designed for high-power MOSFETs and IGBTs. It integrates a logic signal input processing circuit, dead-time control circuit, undervoltage lockout (UVLO) circuit, lockout circuit, level-shift circuit, pulse filter circuit, and output driver circuit. The high-side operating voltage reaches up to 260V, while the low-side VCC supply voltage range spans 5V to 20V. The IC features a lockout function to prevent simultaneous conduction of output power transistors. Built-in pull-down resistors on input channels HIN and LIN ensure that both high-side and low-side power MOSFETs remain off when inputs are floating. Output current capability is IO +0.8A/-1.2A. Available in TSSOP20 and QFN24 packages.
Applications
- Three-phase brushless DC motor driver
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 260V
- Integrated three independent half-bridge drivers
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- Low-side VCC voltage range: 5V–20V
- Output current capability: IO +0.8A / -1.2A
- VCC and VB undervoltage lockout (UVLO) protection
- Built-in dead-time control circuit
- Integrated interlocking function, completely prevents simultaneous conduction of high-side and low-side outputs
- HIN input channel active high, controls high-side HO output
- LIN input channel active high, controls low-side LO output
- Package: TSSOP20 and QFN24
- Lead-free, halogen-free, RoHS compliant
