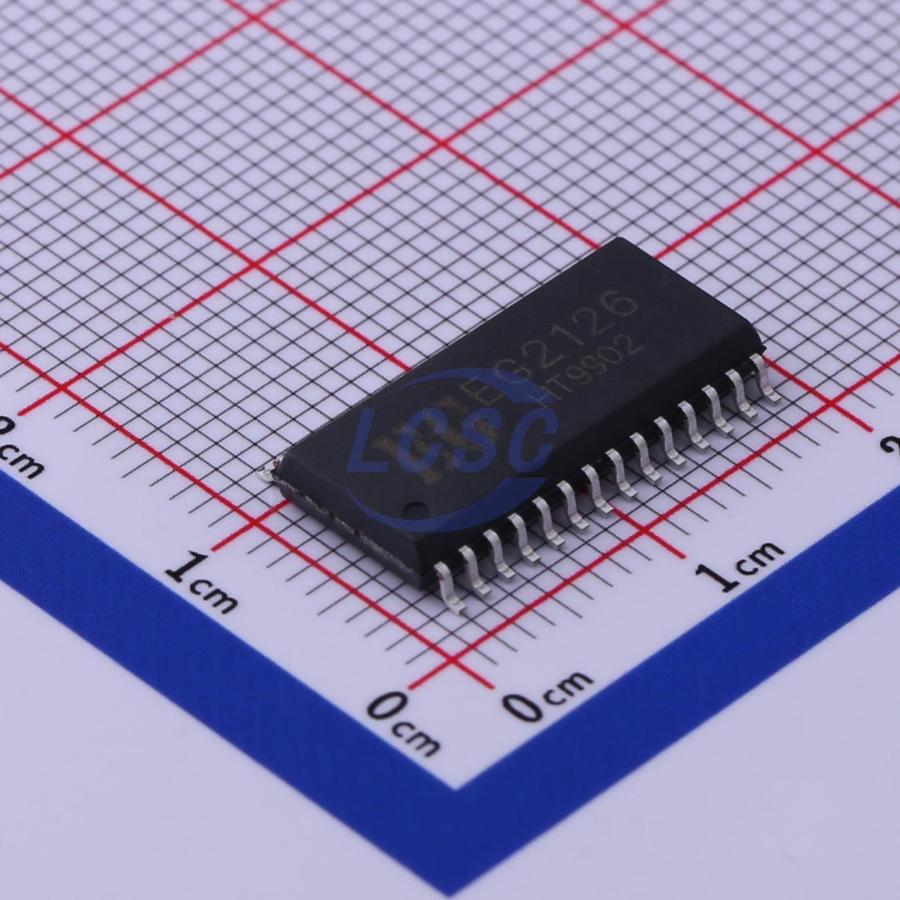

EG2126
Half-Bridge Gate Driver IC MOSFET IGBT SOP-28-300mil
Dual half-bridge driver circuit chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2126
- Store part #
- C480659
- Package / case
- SOP-28-300mil
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,488 in stock
#C480659
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹222.67 | ₹222.67 |
| 10+ | ₹185.38 | ₹1,853.80 |
| 30+ | ₹158.50 | ₹4,755.00 |
| 100+ | ₹135.30 | ₹13,530.00 |
| 500+ | ₹124.89 | ₹62,445.00 |
| 1,500+ | ₹120.34 | ₹1,80,510.00 |
1 × ₹222.67
₹222.67
excl. GST
₹262.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
EG2126
₹222.67 for 1 + GST
Specifications
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection
- Driven Configuration
- Half-Bridge
- Voltage - Supply
- 2.8V~20V
- Number of Channels
- 2
- Propagation Delay tpHL
- 100ns
- Operating Temperature
- -40℃~+125℃
- Load Type
- MOSFET;IGBT
- Supply Current (Iq)
- 300uA
- Input Logic Level - High
- 2.5V
- Current - Output High(IOH)
- 2A
- Input Logic Level - Low
- -300mV~1V
- Current - Output Low(IOL)
- 2A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.277 g
Overview
EG2126 is a cost-effective gate driver IC dedicated to high-power MOSFETs and IGBTs. It integrates a 5V LDO, an op-amp, a comparator, logic signal input processing circuit, dead-time control circuit, lockout circuit, level shift circuit, pulse filter circuit, and output driver circuit, making it well-suited for full-bridge topology applications. The EG2126 supports a high-side operating voltage up to 600V and a wide low-side Vcc supply voltage range of 2.8V~20V. The IC features a lockout function to prevent simultaneous conduction of the output power transistors. The input channels HIN and LIN incorporate built-in pull-down resistors to keep both the high-side and low-side power MOSFETs in the off state when the inputs are floating. Output current capability is 10+2.0A/-2.0A. Available in SOP28L package.
Applications
- Full-bridge topology power supply
- Variable frequency water pump controller
- Electric vehicle controller
- Brushless motor driver
Key features
- High-side floating bootstrap supply design, withstand voltage up to 600V
- Integrated dual half-bridge drivers
- Built-in 5V power output
- Integrated 3-channel op-amp and 3-channel comparator, compatible with 5V and 3.3V input voltage, maximum frequency support up to 500kHz
- Low-side VCC voltage range: 2.8V - 20V
- Output current capability: 10 +2.0A/-2.0A
- Built-in dead-time control circuit with latch function, fully prevents simultaneous conduction of high-side and low-side outputs
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Package: SOP28L
