EG2153

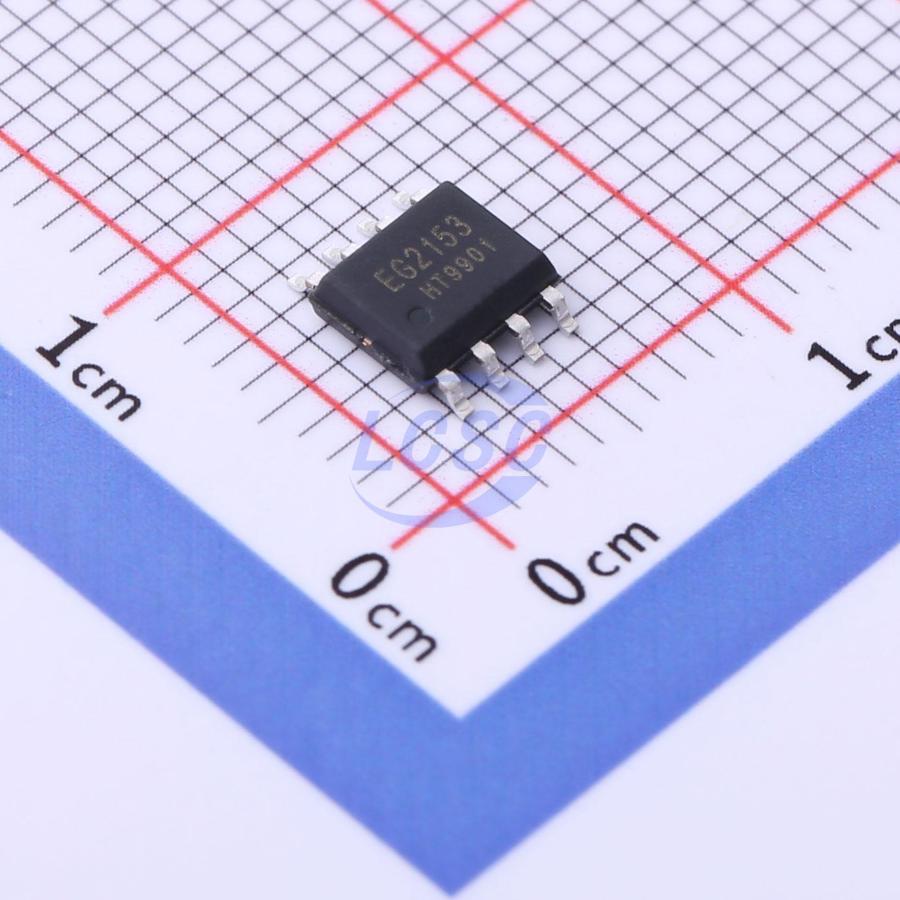

Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
Self-oscillating half-bridge driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2153
- Store part #
- C2987446
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,910 in stock
#C2987446
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.43 | ₹237.15 |
| 50+ | ₹37.02 | ₹1,851.00 |
| 150+ | ₹32.56 | ₹4,884.00 |
| 500+ | ₹26.99 | ₹13,495.00 |
| 2,500+ | ₹26.08 | ₹65,200.00 |
| 4,000+ | ₹24.58 | ₹98,320.00 |
5 × ₹47.43
₹237.15
excl. GST
₹279.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2153
₹237.15 for 5 + GST
Specifications
- Quiescent Current
- 800uA
- Voltage - Supply
- 8V~13V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -45℃~+125℃
- Current - Output Low(IOL)
- 300mA
- Rise Time
- 100ns
- Fall Time
- 60ns
- Features
- Enable shutdown;Dead-time control;Built-in bootstrap diode
- Current - Output High(IOH)
- 200mA
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
EG2153 is a high-voltage, high-speed power MOSFET and IGBT gate driver that integrates an internal high-voltage half-bridge drive circuit and an oscillator, forming a versatile and safer power driver IC. The CT pin features a protective shutdown function, which allows a voltage signal to halt the driver output. When the VDD supply voltage is below the turn-on threshold, the output remains low; once it exceeds the turn-on threshold, the driver oscillates at a stable frequency.
Applications
- Fluorescent lamp switching power supply
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- CT, RT programmable oscillator
- VCC supply 12V zener clamp
- Minimal startup current
- CT pin with enable shutdown function
- VCC and VB supply undervoltage lockout (UVLO)
- Output current capability |O+/– 0.2A/0.3A
- Internal dead-time
- Low-side output signal logic same as RT pin
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
