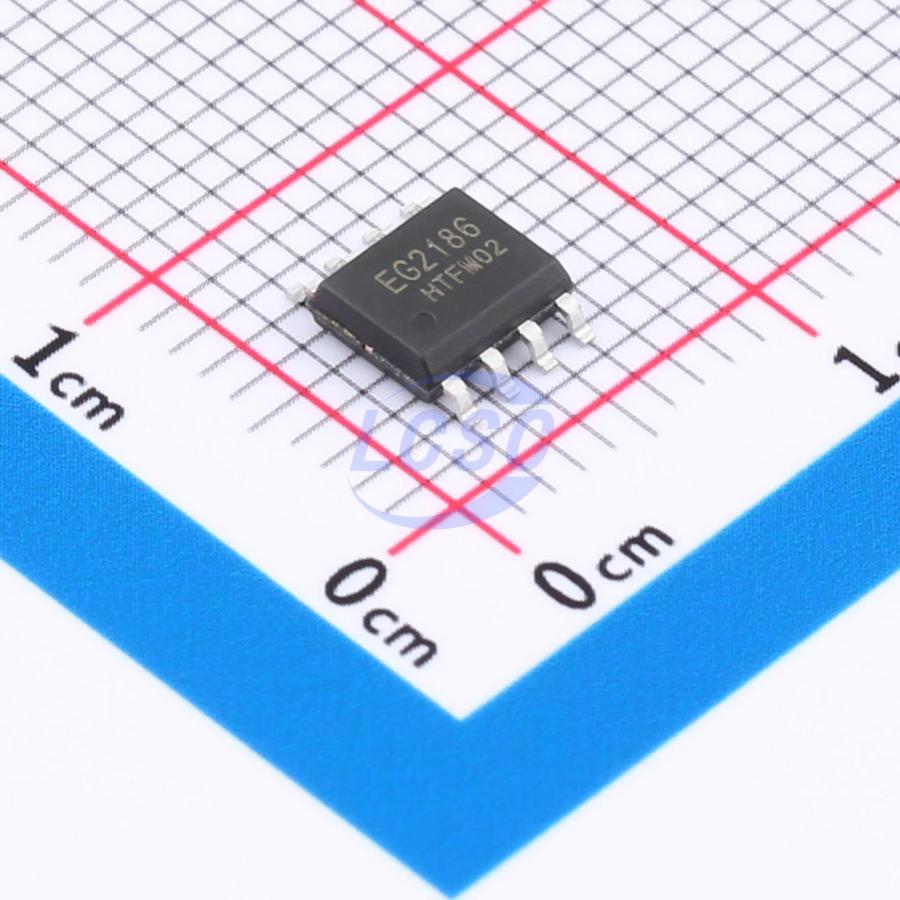

EG2186
Half-Bridge Gate Driver IC MOSFET IGBT SOP-8
High-voltage half-bridge driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG2186
- Store part #
- C20416237
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,941 in stock
#C20416237
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.38 | ₹74.38 |
| 10+ | ₹59.63 | ₹596.30 |
| 30+ | ₹53.13 | ₹1,593.90 |
| 100+ | ₹45.33 | ₹4,533.00 |
| 500+ | ₹40.34 | ₹20,170.00 |
| 1,000+ | ₹38.17 | ₹38,170.00 |
1 × ₹74.38
₹74.38
excl. GST
₹87.77 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG2186
₹74.38 for 1 + GST
Specifications
- Input Logic Level - Low
- -300mV~1.3V
- Quiescent Current
- 200uA
- Voltage - Supply
- 10V~20V
- Driven Configuration
- Half-Bridge
- Operating Temperature
- -40℃~+125℃
- Current - Output Low(IOL)
- 4A
- Rise Time
- 22ns
- Fall Time
- 18ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
EG2186 is a cost-effective gate driver IC designed for high-power MOSFETs and IGBTs. It integrates a logic signal input processing circuit, level shift circuit, pulse filter circuit, and output driver circuit, dedicated for use in brushless motor controller drive circuits. The EG2186 supports a high-side operating voltage up to 600V, a wide low-side VCC supply voltage range of 10V~20V, and quiescent current consumption of less than 200μA. The HIN input channel features a built-in 250K pull-down resistor, and the LIN input channel features a built-in 250K pull-down resistor, ensuring that both the high-side and low-side power MOSFETs remain off when the inputs are floating. Output current capability is IO +/-4/4A. Available in SOP8 package.
Applications
- High-voltage fast-charging switch-mode power supply for power banks
- Electric vehicle controllers
- Variable frequency pump controllers
- 600V buck switch-mode power supply brushless motor drivers
Key features
- High-side floating bootstrap power supply design, withstand voltage up to 600V
- Compatible with 5V and 3.3V input voltage
- Maximum switching frequency up to 500KHz
- VCC and VB supply with undervoltage lockout (UVLO) protection
- Low-side VCC voltage range: 10V - 20V
- Output current capability: 10+1 - 4A/4A
- HIN input channel active-high, controls high-side HO output
- LIN input channel active-high, controls low-side LO output
- Minimal external components
- Package: SOP8
- Lead-free, halogen-free, RoHS compliant
