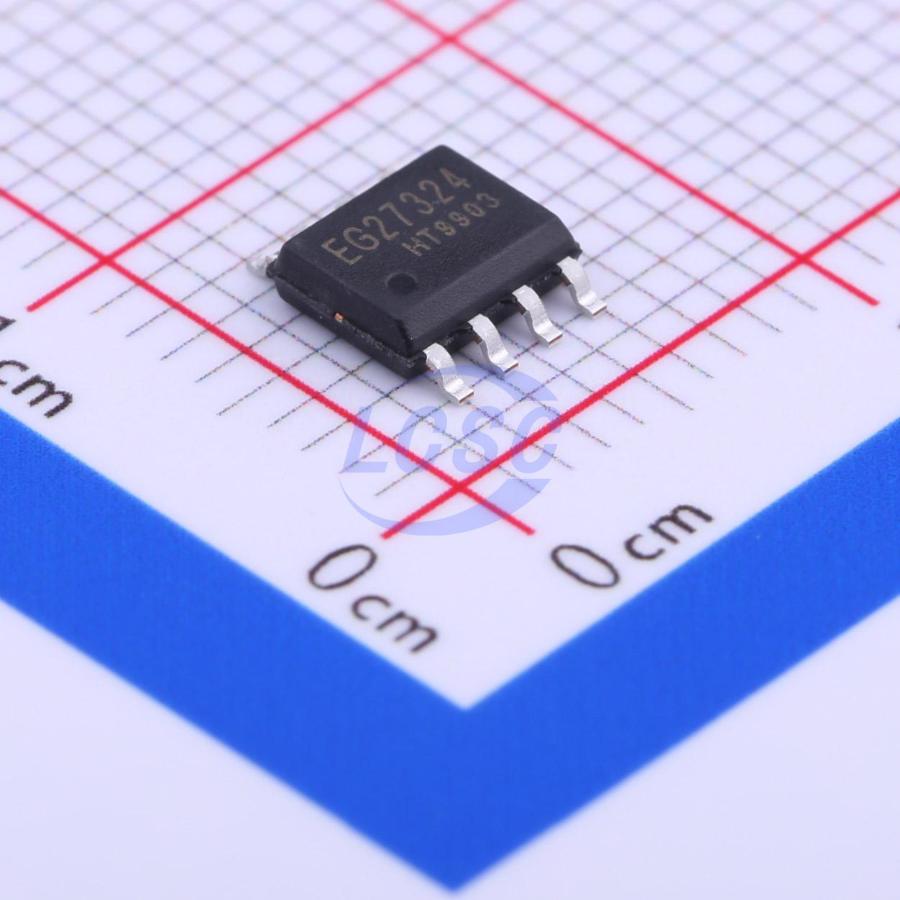

EG27324
2 2.8V~20V SOP-8 Gate Drivers RoHS
Dual-channel driver chip with SD function
- Manufacturer
- EG Micro
- Manufacturer part #
- EG27324
- Store part #
- C189546
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,460 in stock
#C189546
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.75 | ₹213.75 |
| 50+ | ₹33.11 | ₹1,655.50 |
| 150+ | ₹28.99 | ₹4,348.50 |
| 500+ | ₹23.84 | ₹11,920.00 |
| 2,500+ | ₹22.44 | ₹56,100.00 |
| 4,000+ | ₹21.06 | ₹84,240.00 |
5 × ₹42.75
₹213.75
excl. GST
₹252.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG27324
₹213.75 for 5 + GST
Specifications
- number of channels
- 2
- Voltage - Supply
- 2.8V~20V
- Operating Temperature
- -45℃~125℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.201 g
Overview
EG27324 is a cost-effective dual-channel independent gate driver IC with SD functionality. It integrates logic signal input processing, level shifting, and output drive circuits, suitable for drive circuits in motor controllers, power supplies, and transformers. EG27324 features a wide supply voltage range of 2.8V~20V with quiescent current less than 1uA. The input channels INA and INB each have a built-in 200K pull-down resistor; SD has a built-in 200K pull-down resistor, ensuring that a floating SD input does not affect OUTA and OUTB outputs; output current capability I0+/- 2/2.5A; available in SOP8 package.
Applications
- Power bank
- Variable frequency pump controller power supply
- Wireless charging driver
- Motor driver
- Driver transformer
Key features
- Compatible with 5V and 3.3V input voltage; VCC voltage range: 2.8V - 20V
- Output current capability I0+/- 2A/2.5A
- Short input-to-output propagation delay; SD input channel active-high, disables HO and LO outputs
- Minimal external components
- Quiescent current less than 1uA, ideal for battery-powered applications
- Package: SOP-8
