EG3002

A single-channel, cost-effective dedicated gate/base driver IC for power MOSFETs or high-power bipolar transistors. It integrates input logic signal conditioning circuitry, a fast comparator, an SD fast shutdown circuit, and a high-current output driver stage — designed specifically for power MOSFET driving in power converters and motor controllers. Features a wide supply voltage range of 3V~30V, low quiescent current of only 2mA, and a split output structure with independent source current (OUTD) and sink current (OUTS) pins, enabling independent adjustment of the rise time and fall time at the MOSFET gate.

Applications

• Motor drivers
• Inverters
• Stepper motor drives
• DC/DC converter driving high-power bipolar transistors
• UPS
• Class-D power amplifiers
• Switching power supplies
• Pulse transformer drivers for brushless fans

Key features

• Source peak drive current up to 1A and sink peak drive current up to 1.2A
• Wide input voltage range: +3V - +30V
• Input pin IN withstands up to +30V input voltage
• Low input supply current:
• Logic 1 input — 200μA (typical)
• Logic 0 input — 0μA (typical)
• Independent source and sink output structure for independent rise and fall time adjustment
• SD pin enables cycle-by-cycle shutdown control for short-circuit or overcurrent protection circuits
• Built-in fast comparator eliminates external short-circuit protection comparator

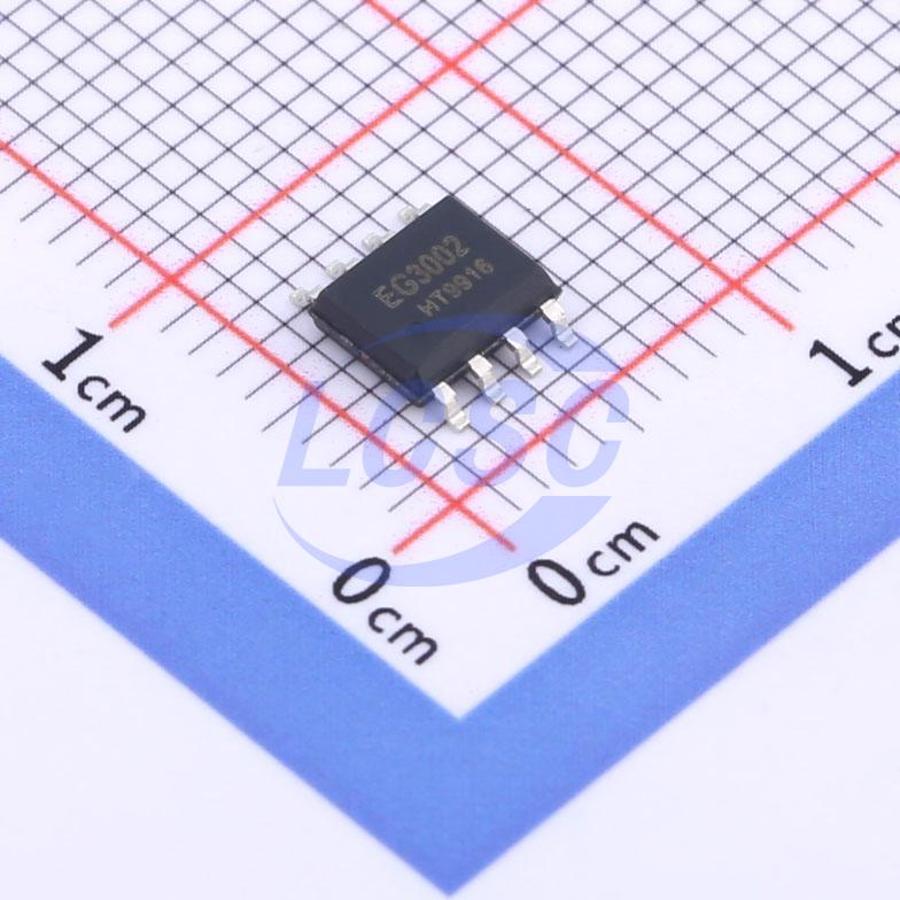

• Package: SOP-8
