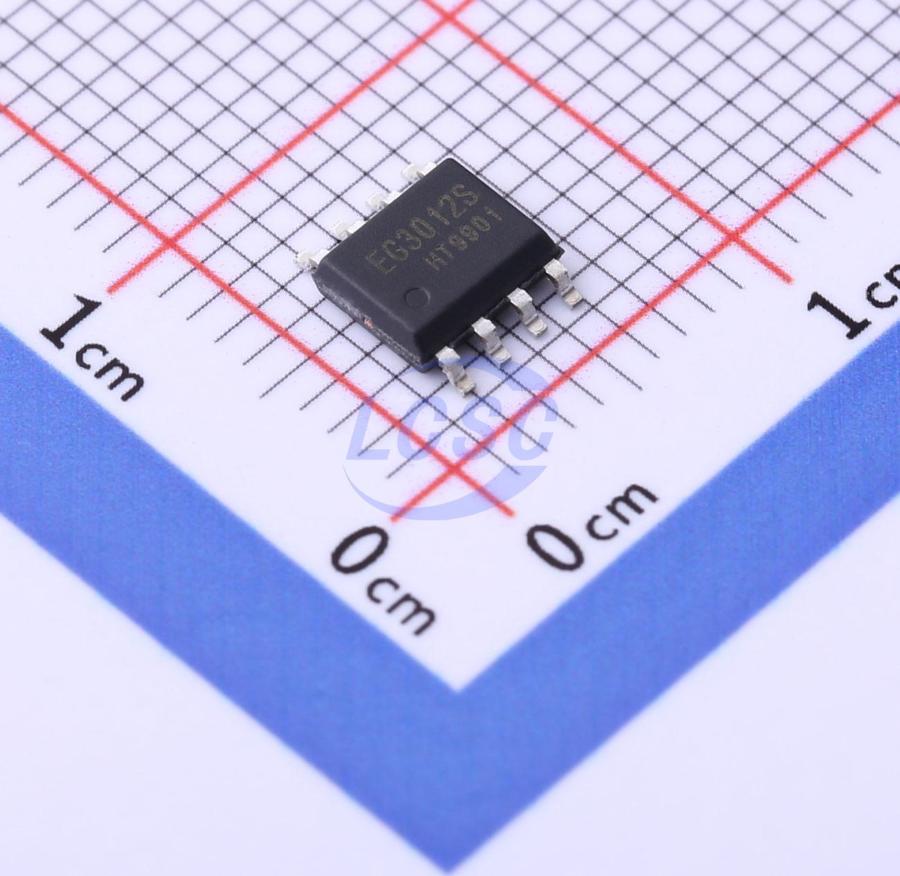

EG3012S

EG3012S is a cost-effective gate driver IC dedicated to high-power MOSFETs and IGBTs. It integrates logic signal input processing, dead-time control, undervoltage lockout (UVLO), lockout, level shift, pulse filtering, and output drive circuits, designed specifically for drive circuits in brushless motor controllers. The EG3012S supports a high-side operating voltage up to 80V, a wide Vcc supply voltage range of 11V~30V, and low quiescent current of only 4.5mA. The IC features a lockout function to prevent simultaneous conduction of the output power transistors. The HIN and LIN input channels incorporate built-in 10K pull-down resistors to keep both the high-side and low-side power MOSFETs off when the inputs are floating. The output stage adopts a half-bridge Darlington configuration, housed in an SOP8 package.

Applications

• Electric motorcycle controller
• Electric bicycle controller
• 80V buck switching power supply
• Variable frequency water pump controller
• Brushless motor driver
• High-voltage Class-D amplifier

Key features

• High-side floating bootstrap power supply design, withstand voltage up to 80V
• Built-in dead-time control circuit
• Power supply undervoltage lockout output
• Integrated lockout function, completely prevents simultaneous conduction of high-side and low-side outputs
• Half-bridge Darlington output stage with high-current gate drive capability
• Dedicated gate driver for brushless motor N-channel MOSFETs and IGBTs
• HIN input channel active-high, controls high-side HO output
• LIN input channel active-high, controls low-side LO output
• Minimal external components
• Low quiescent current: 4.5mA
• Package: SOP-8
