EG3023

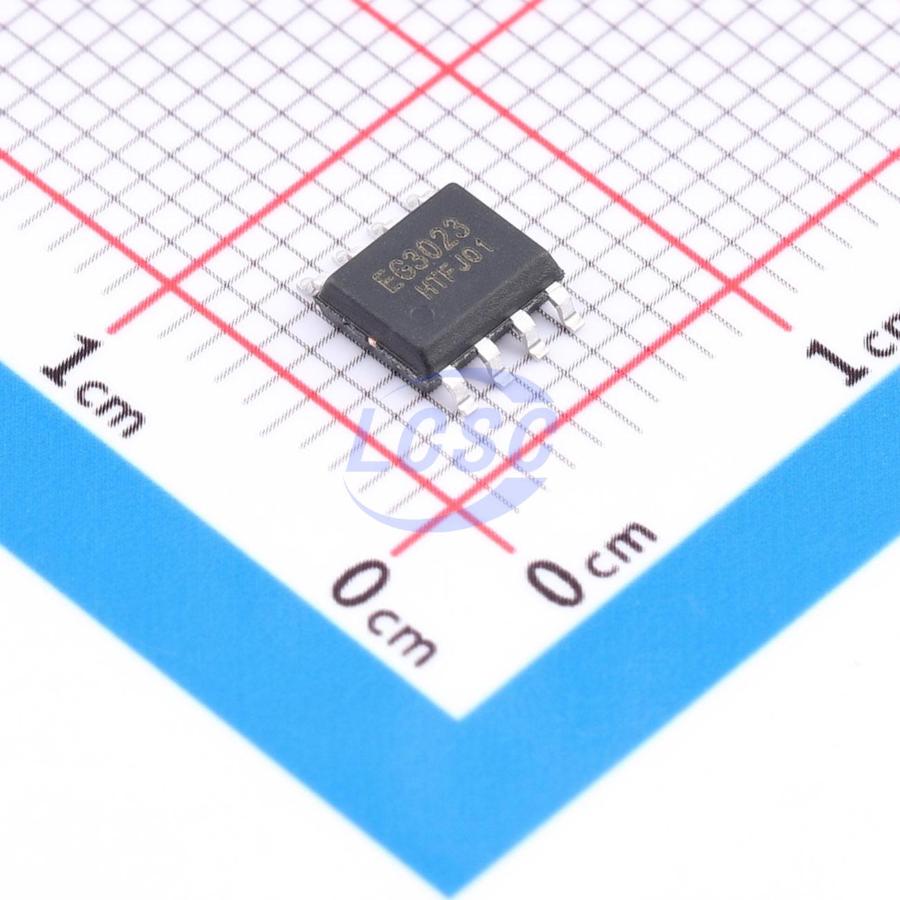

EG3023 is a cost-effective gate driver IC dedicated to high-power MOSFETs and IGBTs. It integrates a logic signal input processing circuit, dead-time control circuit, undervoltage lockout circuit, lockout circuit, level shift circuit, pulse filter circuit, and output driver circuit, designed specifically for drive circuits in brushless motor controllers. The EG3023 supports a high-side operating voltage up to 200V, a wide low-side Vcc supply voltage range of 7V~20V, and quiescent current consumption of less than 100uA. The IC features a lockout function to prevent simultaneous conduction of the output power transistors. The input channel HIN has a built-in 200K pull-down resistor, and LIN has a built-in pull-up to a high potential, ensuring both the high-side and low-side power MOSFETs remain off when the inputs are floating. Output current capability is I0+/-Δ 0.6/1A, housed in an SOP8 package.

Applications

• Reversible variable-speed DC motor
• Variable frequency pump controller
• 200V buck switching power supply
• LED dimming
• Brushless motor driver
• Electric vehicle controller

Key features

• High-side floating bootstrap power supply design, withstand voltage up to 200V
• Low-side VCC supply voltage range: 7 - 20V
• Compatible with 3V - 20V input voltage
• Built-in dead time: 750nS
• VCC undervoltage lockout protection
• Output current capability: 10+/- 0.6A/1A
• Integrated latch function, completely prevents simultaneous conduction of high-side and low-side outputs
• HIN input channel active-high, controls high-side HO output
• LIN input channel active-low, controls low-side LO output
• Minimal external components
• Package: SOP8, lead-free and halogen-free, RoHS compliant
