EG3033

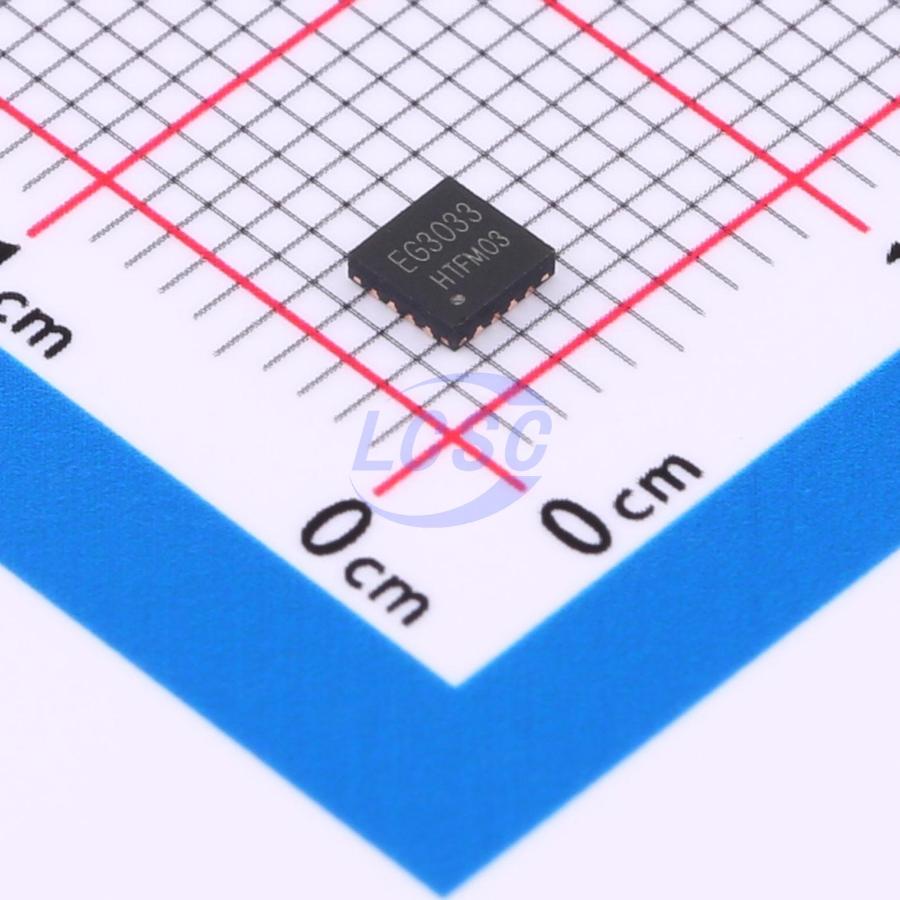

Three Phase Gate Driver IC MOSFET QFN-16(3x3)
Three-phase P/NMOS gate driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG3033
- Store part #
- C20416138
- Package / case
- QFN-16(3x3)
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,310 in stock
#C20416138
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.50 | ₹92.50 |
| 50+ | ₹14.49 | ₹724.50 |
| 150+ | ₹12.49 | ₹1,873.50 |
| 500+ | ₹10.98 | ₹5,490.00 |
| 2,500+ | ₹10.56 | ₹26,400.00 |
| 4,000+ | ₹9.95 | ₹39,800.00 |
5 × ₹18.50
₹92.50
excl. GST
₹109.15 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG3033
₹92.50 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 90ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 500uA
- Input Logic Level - High
- 2V
- Voltage - Supply
- 6V~36V
- Operating Temperature
- -45℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 280mA
- Rise Time
- 280ns
- Fall Time
- 60ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 260mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.054 g
Overview
EG3033 is a cost-effective three-phase PMOS/NMOS gate driver IC with integrated LDO, dead-time control circuit, undervoltage lockout circuit, latch circuit, and output driver circuit, designed for motor controller and power supply drive applications. EG3033 operates over a supply voltage range of 6V~36V with quiescent current less than 1mA. The IC integrates a 5V output LDO to power external MCU and other devices. When the input voltage exceeds 12V, to better match P/N MOS transistors, the maximum LO output voltage is 11V and the minimum HO output voltage is VCC minus 11V. LO output current capability is 10±0.045/0.28A; HO output current capability is |O±0.26/0.04Aₑ.
Applications
- Vacuum cleaner
- Variable frequency water pump
- Controller power supply
- Fan
- Motor driver
- Massage gun
Key features
- Three-phase P/N MOSFET gate driver supply voltage input range: 6V - 36V
- Compatible with 3V - 30V input voltage
- VCC undervoltage protection
- Built-in 5V/50mA output LDO
- Integrated dead-time control circuit
- Integrated latch function
- LIN1/2/3 input channels active-high, controlling LO output
- HIN1/2/3 input channels active-high, controlling HO output
- Package: SOP16
