EG3035

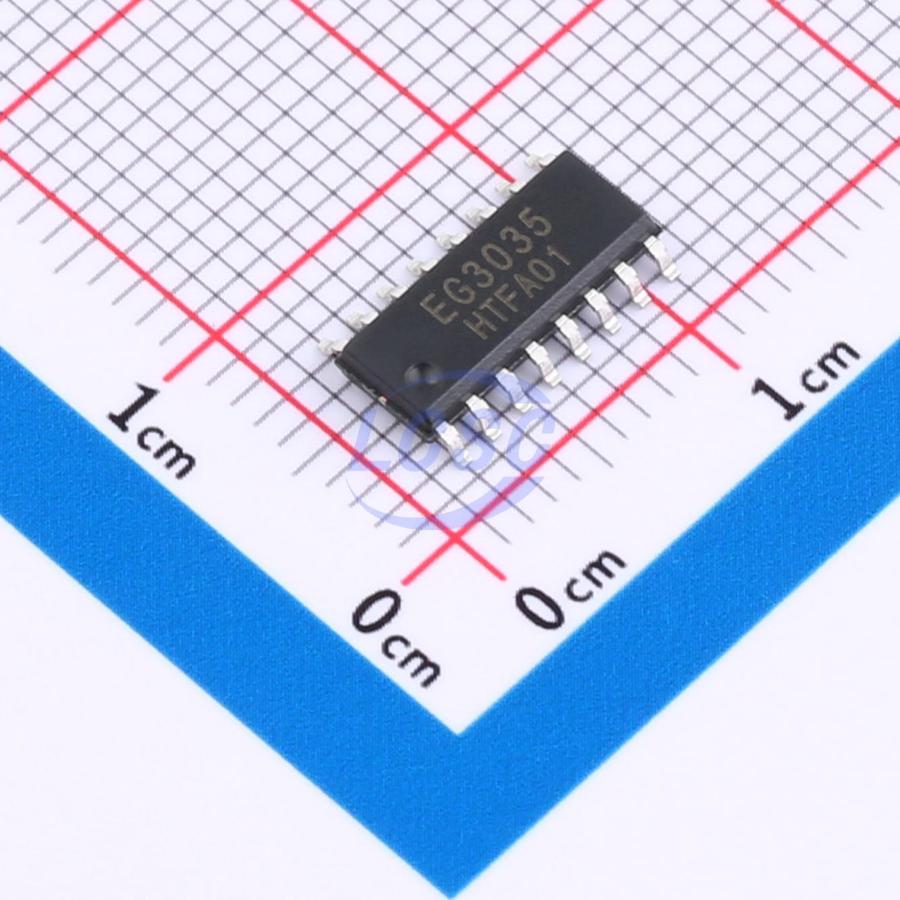

Three Phase Gate Driver IC MOSFET SOP-16
Three-phase P/NMOS gate driver IC
- Manufacturer
- EG Micro
- Manufacturer part #
- EG3035
- Store part #
- C48580030
- Package / case
- SOP-16
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C48580030
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.36 | ₹101.80 |
| 50+ | ₹15.98 | ₹799.00 |
| 150+ | ₹14.12 | ₹2,118.00 |
| 500+ | ₹11.77 | ₹5,885.00 |
| 3,000+ | ₹10.74 | ₹32,220.00 |
| 6,000+ | ₹10.11 | ₹60,660.00 |
5 × ₹20.36
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EG3035
₹101.80 for 5 + GST
Specifications
- Input Logic Level - Low
- -300mV~800mV
- Low Level Delay Time
- 90ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 500uA
- Voltage - Supply
- 9V~36V
- Operating Temperature
- -45℃~+125℃
- Driven Configuration
- Three Phase
- Current - Output Low(IOL)
- 280mA
- Rise Time
- 280ns
- Features
- Dead-time control;Interleaved conduction protection
- Current - Output High(IOH)
- 260mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.275 g
Overview
EG3035 is a cost-effective three-phase PMOS/NMOS gate driver IC with integrated LDO, dead-time control, undervoltage lockout, latch circuit, and output drive circuitry, designed for motor controller and power supply drive applications. The supply voltage range is 6V to 36V, with quiescent current consumption below 1mA. An integrated 5V LDO provides power to external devices such as MCUs. When the input voltage exceeds 12V, to better match P/N MOSFETs, the maximum output voltage of LO is 11V, and the minimum output voltage of HO is VCC minus 11V. The LO output current capability is IO+/- 0.045/0.28A, and the HO output current capability is IO+/- 0.26/0.04A.
Applications
- Vacuum cleaner
- Variable frequency water pump controller
- Power supply
- Fan
- Motor driver
Key features
- Three-phase P/N MOSFET gate driver
- Supply voltage input range: 6V–36V
- Compatible with 3V–30V input voltage
- VCC undervoltage protection
- Built-in 5V/50mA LDO output
- Integrated dead-time control circuit
- Built-in latching function
- LIN1/2/3 input channels active-high, controls LO output
- HIN1/2/3 input channels active-high, controls HO output
- Package: SOP16
