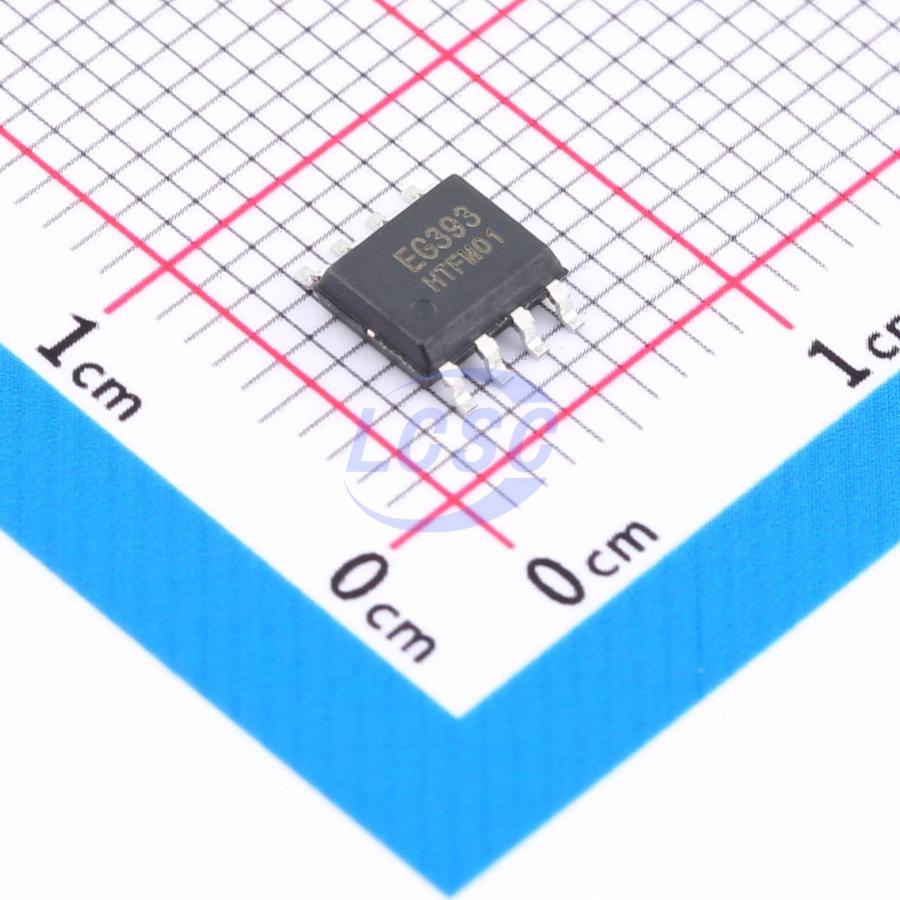

EG393
1mV 25nA 2 SOP-8 Linear Comparators RoHS
Dual independent high-precision voltage comparator chip
- Manufacturer
- EG Micro
- Manufacturer part #
- EG393
- Store part #
- C111034
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,100 in stock
#C111034
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.91 | ₹79.10 |
| 100+ | ₹6.23 | ₹623.00 |
| 300+ | ₹5.38 | ₹1,614.00 |
| 1,000+ | ₹4.75 | ₹4,750.00 |
| 4,000+ | ₹3.98 | ₹15,920.00 |
| 8,000+ | ₹3.73 | ₹29,840.00 |
10 × ₹7.91
₹79.10
excl. GST
₹93.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
EG393
₹79.10 for 10 + GST
Specifications
- Dual Supply
- 1V~18V;-18V~-1V
- Output Type
- Open Collector
- Vos - Input Offset Voltage
- 1mV
- Ib - Input Bias Current
- 25nA
- Quiescent Current
- 400uA
- Output Mode
- TTL;CMOS
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Operating Temperature
- 0℃~+70℃
- Single Supply
- 2V~36V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.201 g
Overview
EG393 consists of two independent, precision voltage comparators with an input offset voltage of no more than 2.0mV. It operates from either a single or dual power supply, and the supply current is independent of the supply voltage level. These comparators feature a unique characteristic: the input common-mode voltage range extends down to ground level even when operating from a single supply. Primarily designed for consumer and industrial electronics applications. Available in DIP8 and SOP8 packages.
Applications
- Consumer electronics
- Industrial electronics
Key features
- Wide supply voltage range: single supply 2.0V~36V, dual supply ±1.0V~±18V
- Low supply current: 0.8mA, independent of supply voltage (1mV/comparator at 5V)
- Low input bias current: 25nA
- Low input offset current: 5.0nA
- Low input offset voltage: 5.0mV
- Input common-mode voltage range extends to ground
- Input differential voltage range equals supply voltage range
- Compatible with TTL, DTL, ECL, MOS, and CMOS
