EG MicroDatasheet (PDF)

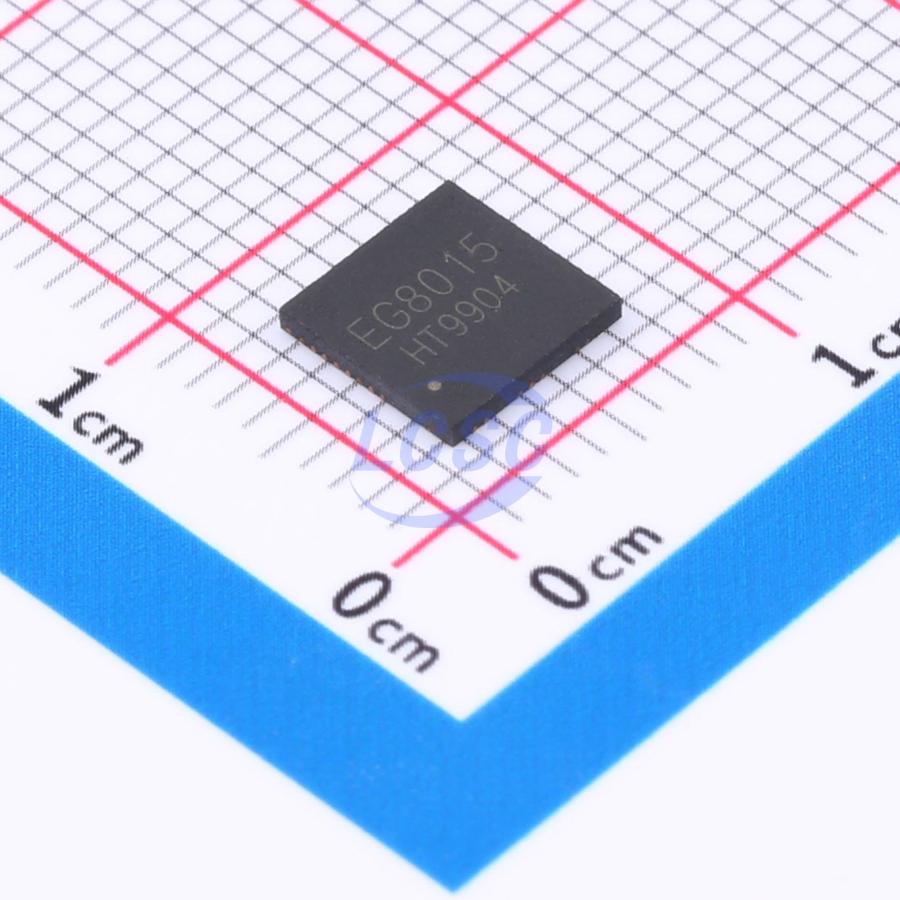

EG8015
2V~5.5V 5mA 1 QFN-39 Gates and Inverters
QFN-39RoHSActive
Special-purpose chip for SPWM inverter with built-in 600V high-voltage driver
- Manufacturer
- EG Micro
- Manufacturer part #
- EG8015
- Store part #
- C2987469
- Package / case
- QFN-39
- Category
- Gates and Inverters
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,168 in stock
#C2987469
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.32 | ₹142.32 |
| 10+ | ₹127.33 | ₹1,273.30 |
| 30+ | ₹119.28 | ₹3,578.40 |
| 100+ | ₹117.99 | ₹11,799.00 |
| 490+ | ₹113.86 | ₹55,791.40 |
| 980+ | ₹111.90 | ₹1,09,662.00 |
1 × ₹142.32
₹142.32
excl. GST
₹167.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 490 per tray
EG8015
₹142.32 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 0V~450mV
- Input Logic Level - Low
- 0V~800mV
- Operating Temperature
- -45℃~+105℃
- Input Logic Level - High
- 3.5V~5.5V
- Output Logic Level - High
- 3V~5V
- Quiescent Current(Iq)
- 5mA
- Number of Channels
- 1
- Current - Output High(IOH)
- 1.8A
- Current - Output Low(IOL)
- 1.8A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 490 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.206 g
Overview
Applications
- Single-phase pure sine wave inverter
- Photovoltaic power inverter
- Wind power inverter
- Uninterruptible power supply UPS system
- Digital generator system
- Single-phase motor speed controller
- Single-phase frequency converter
- Sine wave dimmer
- Sine wave voltage regulator
- Inverter welder
