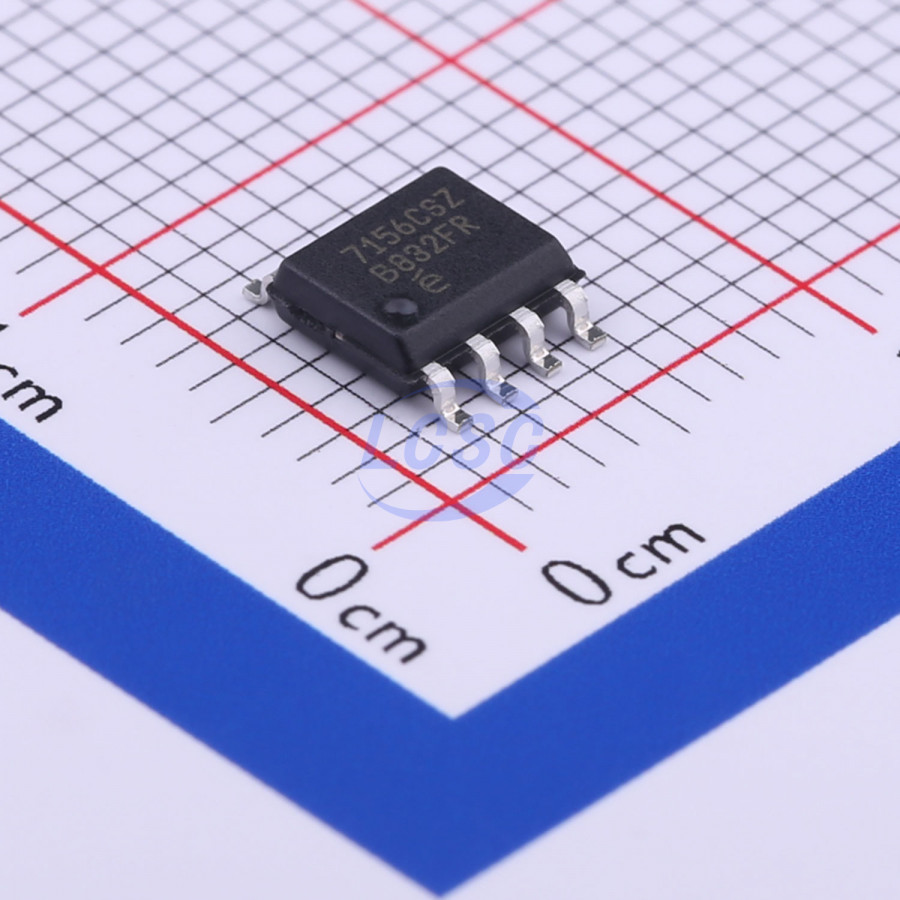

EL7156CSZ-T7
Tri-State 40Mbps SOIC-8 Gate Drivers RoHS
High Performance Pin Driver
- Manufacturer
- RENESAS
- Manufacturer part #
- EL7156CSZ-T7
- Store part #
- C382008
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C382008
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹241.32 | ₹241.32 |
| 10+ | ₹202.30 | ₹2,023.00 |
| 30+ | ₹180.83 | ₹5,424.90 |
| 100+ | ₹156.76 | ₹15,676.00 |
| 500+ | ₹145.93 | ₹72,965.00 |
| 1,000+ | ₹140.94 | ₹1,40,940.00 |
1 × ₹241.32
₹241.32
excl. GST
₹284.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
EL7156CSZ-T7
₹241.32 for 1 + GST
Specifications
- Features
- Output enable high-impedance
- Input Signal
- CMOS;TTL
- Output Type
- Tri-State
- Data Rate
- 40Mbps
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.105 g
Overview
The EL7156 high performance pin driver with three-state is suited to many ATE and level-shifting applications. The 3.5A peak drive capability makes this part an excellent choice when driving high capacitance loads. The output pin OUT is connected to input pins VH or VL respectively, depending on the status of the IN pin. When the OE pin is active low, the output is placed in the three-state mode. The isolation of the output FETs from the power supplies enables VH and VL to be set independently, enabling level-shifting to be implemented. Related to the EL7155, the EL7156 adds a lower supply pin VS- and makes VL an isolated and independent input. This feature adds applications flexibility and improves switching response due to the increased enhancement of the output FETs. This pin driver has improved performance over existing pin drivers. It is specifically designed to operate at voltages down to 0V across the switch elements while maintaining good speed and ON-resistance characteristics. Available in the 8 Ld SOIC and 8 Ld PDIP packages, the EL7156 is specified for operation over the full -40°C to +85°C temperature range. The EL7156 is a high performance 40MHz pin driver. It contains two analog switches connecting VH and VL to OUT. Depending on the value of the IN pin, one of the two switches will be closed and the other switch open. An output enable (OE) is also supplied which opens both switches simultaneously. Due to the topology of the EL7156, both the VH and VL pins can be connected to any voltage between the VS+ and VS- pins, but VH must be greater than VL in order to prevent turning on the body diode at the output stage. The EL7156 is available in both the 8 Ld SOIC and the 8 Ld PDIP packages. The relevant package should be chosen depending on the calculated power dissipation.
Applications
- ATE/burn-in testers
- Level shifting
- IGBT drivers
- CCD drivers
Key features
- Clocking speeds up to 40MHz
- 15ns tR/tF at 2000pF CLOAD
- 0.5ns rise and fall times mismatch
- 0.5ns tON-tOFF prop delay mismatch
- 3.5pF typical input capacitance
- 3.5A peak drive
- Low ON-resistance of 3.5Ω
- High capacitive drive capability
- Operates from 4.5V to 16.5V
- Pb-free plus anneal available (RoHS compliant)
