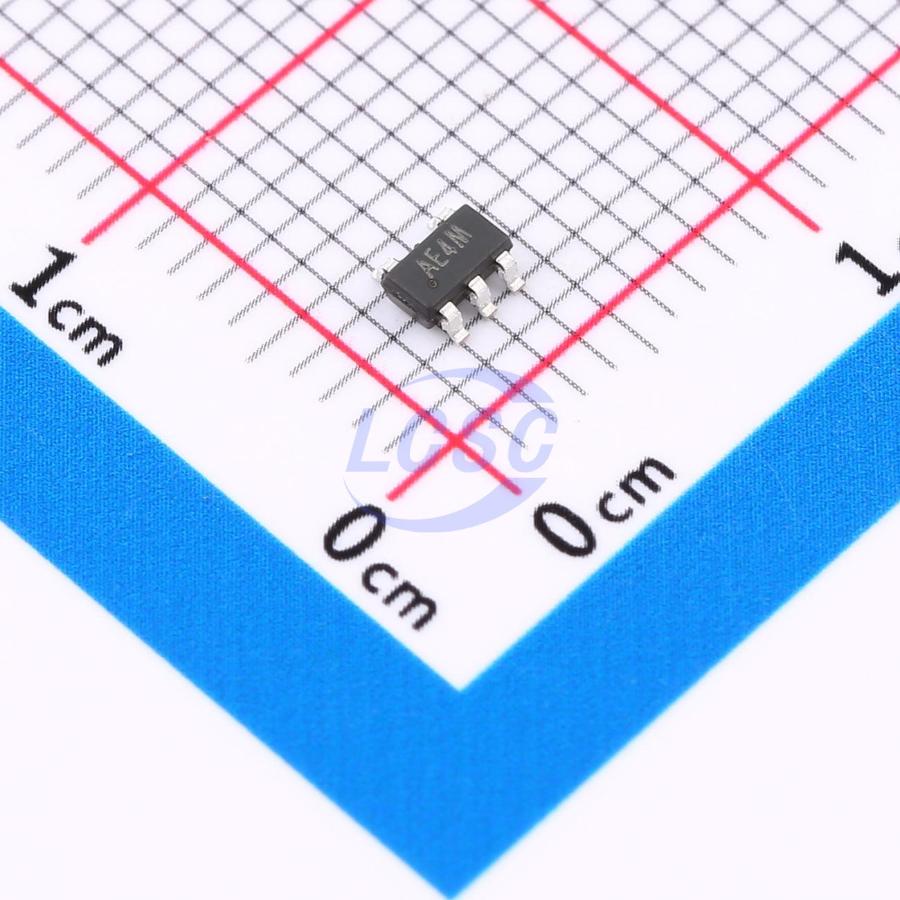

EM74AHC1G32GV
OR Gate IC 1 Channel SOT-23-5L
SOT-23-5LRoHSActive
Single 2-input OR gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74AHC1G32GV
- Store part #
- C49188271
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C49188271
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.20 | ₹51.00 |
| 50+ | ₹8.06 | ₹403.00 |
| 150+ | ₹7.00 | ₹1,050.00 |
| 500+ | ₹6.19 | ₹3,095.00 |
| 3,000+ | ₹5.56 | ₹16,680.00 |
| 6,000+ | ₹5.24 | ₹31,440.00 |
5 × ₹10.20
₹51.00
excl. GST
₹60.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74AHC1G32GV
₹51.00 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;440mV;550mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V
- Quiescent Current(Iq)
- 10nA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.042 g
Overview
EM74AHC1G32 and EM74AHCT1G32 are single 2-input OR gate devices. Their inputs are overvoltage-tolerant, enabling these devices to be used as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels:
- EM74AHC1G32: CMOS level
- EM74AHCT1G32: TTL level
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
