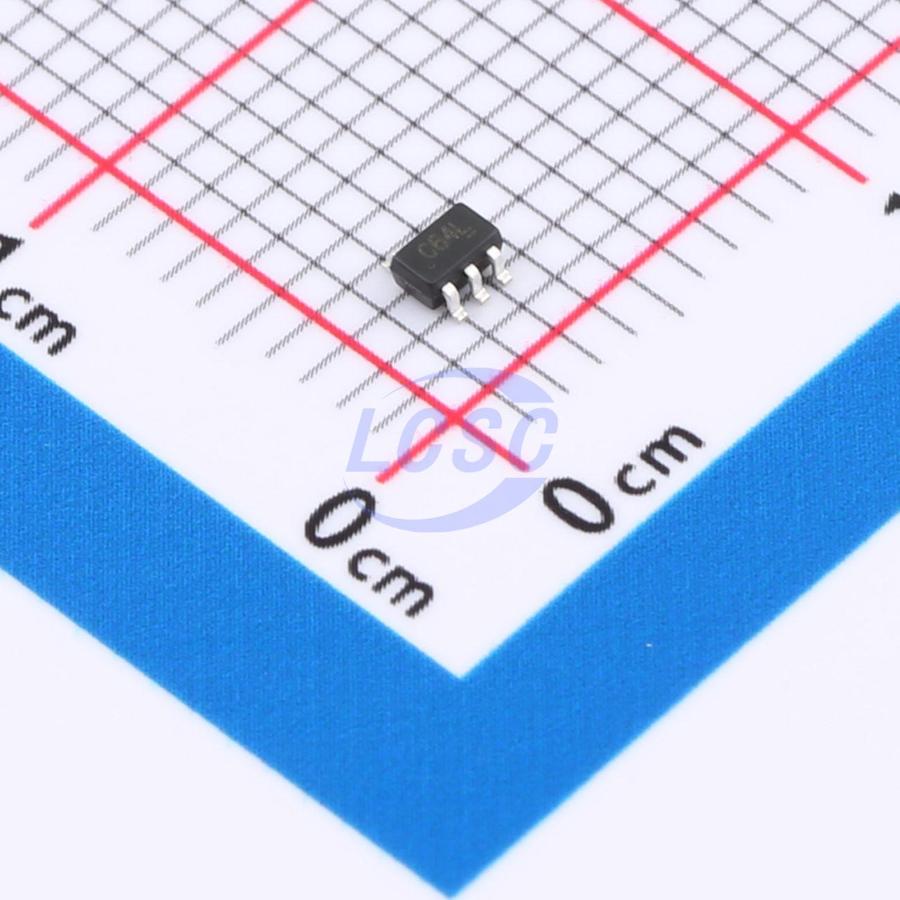

EM74AHCT1G08GW
TTL-compatible CMOS 2V~5.5V 4.3ns@4.5V~5.5V,15pF 40uA SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-input AND gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74AHCT1G08GW
- Store part #
- C49188266
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C49188266
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.20 | ₹51.00 |
| 50+ | ₹8.06 | ₹403.00 |
| 150+ | ₹7.00 | ₹1,050.00 |
| 500+ | ₹6.19 | ₹3,095.00 |
| 3,000+ | ₹5.56 | ₹16,680.00 |
| 6,000+ | ₹5.24 | ₹31,440.00 |
5 × ₹10.20
₹51.00
excl. GST
₹60.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74AHCT1G08GW
₹51.00 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 4.3ns@4.5V~5.5V,15pF
- Output Logic Level - Low
- 100mV;550mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 300mV;550mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1V;1.5V;2V
- Output Logic Level - High
- 1.9V;2.9V;3.7V~4.39V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
The EM74AHC1G08 and EM74AHCT1G08 are single 2-input AND gate devices. Their inputs feature overvoltage tolerance, enabling these devices to function as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V to 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200mA
- Symmetrical output impedance
- Balanced propagation delay
- Multiple package options
