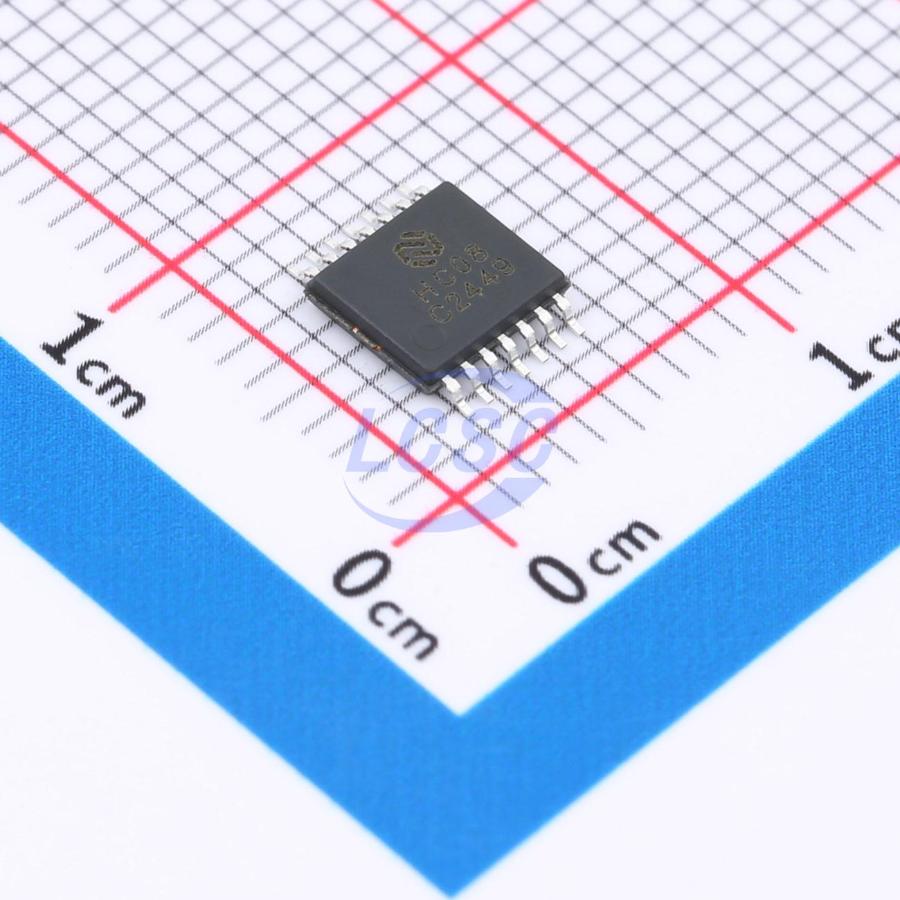

EM74HC08PW
StandardCMOS 2V~6V 20ns@6V,15pF 40uA TSSOP-14L Gates and Inverters
TSSOP-14LRoHSActive
Quad 2-input AND gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74HC08PW
- Store part #
- C49188249
- Package / case
- TSSOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,155 in stock
#C49188249
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.09 | ₹115.45 |
| 50+ | ₹18.14 | ₹907.00 |
| 150+ | ₹16.01 | ₹2,401.50 |
| 500+ | ₹13.36 | ₹6,680.00 |
| 3,000+ | ₹12.17 | ₹36,510.00 |
| 6,000+ | ₹11.47 | ₹68,820.00 |
5 × ₹23.09
₹115.45
excl. GST
₹136.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74HC08PW
₹115.45 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV;400mV
- Propagation Delay
- 20ns@6V,15pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
The EM74HC08 and EM74HCT08 are quad 2-input AND gates. The inputs include clamp diodes, enabling the inputs to be connected to voltages exceeding VCC through the use of current-limiting resistors.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Compliant with JEDEC standards: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
- Input levels: CMOS levels for EM74HC08; TTL levels for EM74HCT08
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EM74HCS08PW#C49188215EnergyMath · TSSOP-14L | EnergyMath | TSSOP-14L | 70 | ₹25.89 · 70 in stock | View |
