EnergyMathDatasheet (PDF)

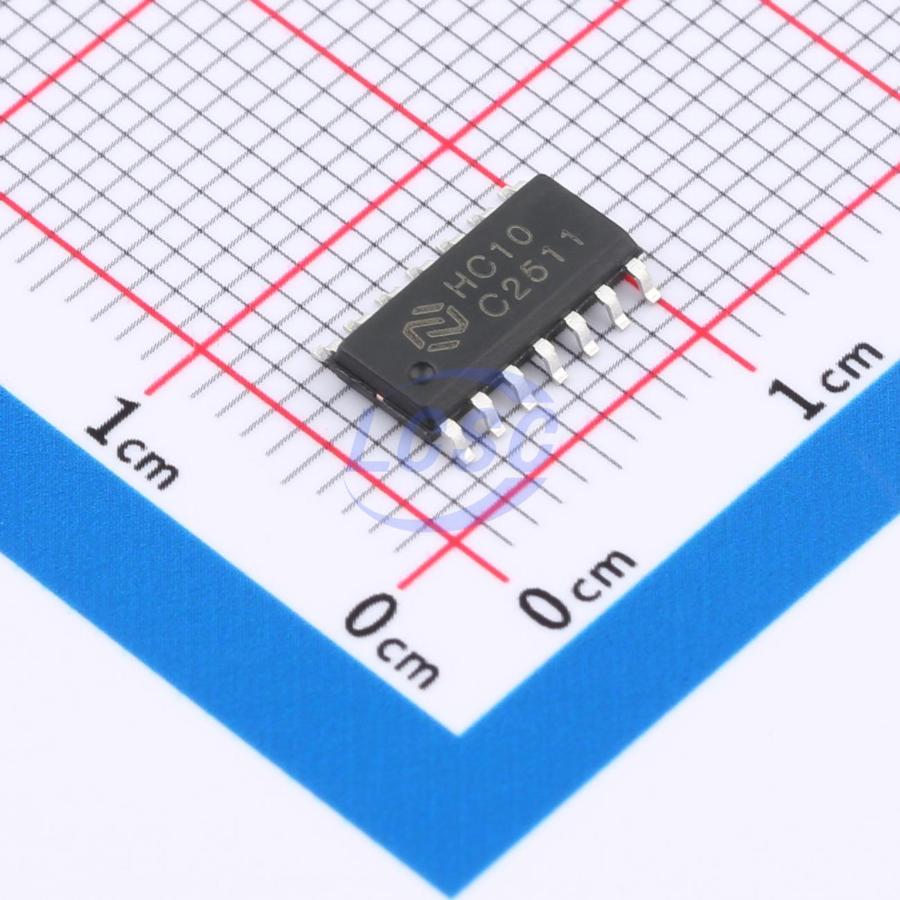

EM74HC10D
StandardCMOS 2V~6V 20ns@6V,15pF 40uA SOP-14L Gates and Inverters
SOP-14LRoHSActive
Triple 3-input NAND gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74HC10D
- Store part #
- C49188248
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C49188248
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.96 | ₹59.80 |
| 50+ | ₹10.49 | ₹524.50 |
| 150+ | ₹9.76 | ₹1,464.00 |
| 500+ | ₹9.22 | ₹4,610.00 |
| 3,000+ | ₹8.78 | ₹26,340.00 |
| 6,000+ | ₹8.57 | ₹51,420.00 |
5 × ₹11.96
₹59.80
excl. GST
₹70.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74HC10D
₹59.80 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV~400mV
- Propagation Delay
- 20ns@6V,15pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;3.7V~4.4V;5.2V~5.9V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 3;3
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.272 g
Overview
EM74HC10 and EM74HCT10 are triple 3-input NAND gates. The inputs include clamping diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- JEDEC compliant: JESD8C (2.7V to 3.6V); JESD7A (2.0V to 6.0V)
- Input levels: CMOS levels for EM74HC10; TTL levels for EM74HCT10
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
