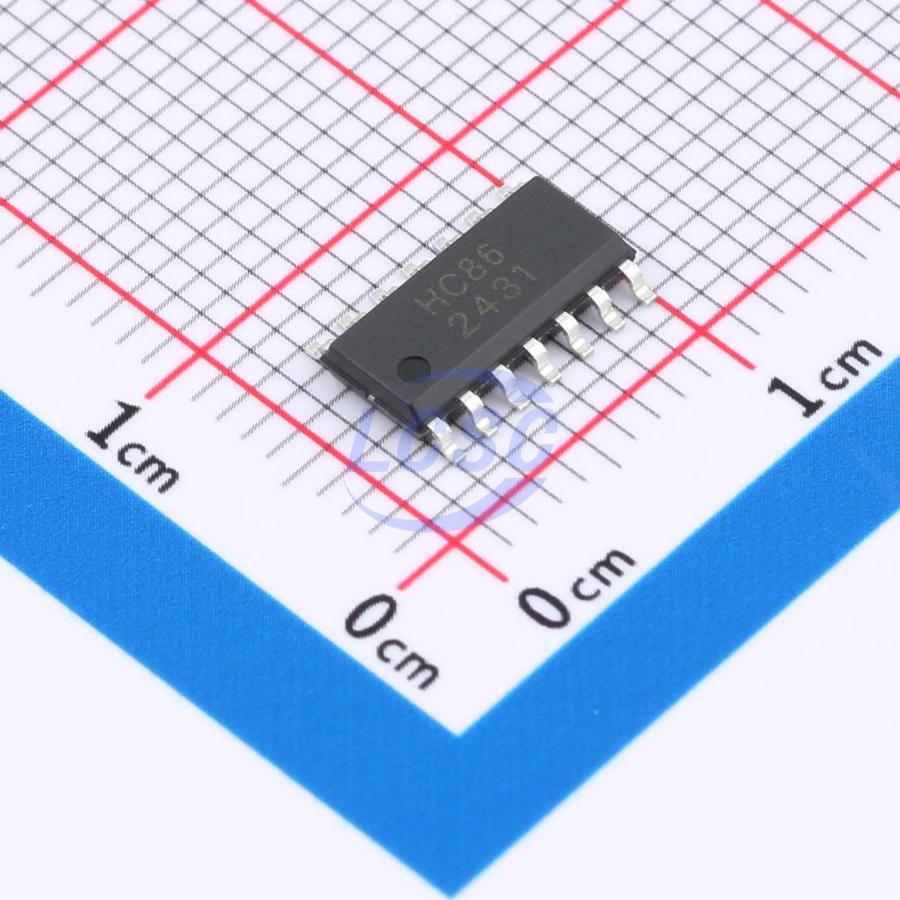

EM74HC86D
StandardCMOS 2V~6V 15ns@6V,15pF 40uA SOP-14L Gates and Inverters
SOP-14LRoHSActive
Quad 2-input EXCLUSIVE-OR gate
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74HC86D
- Store part #
- C49188222
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,945 in stock
#C49188222
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.70 | ₹83.50 |
| 50+ | ₹13.20 | ₹660.00 |
| 150+ | ₹11.46 | ₹1,719.00 |
| 500+ | ₹10.13 | ₹5,065.00 |
| 3,000+ | ₹9.09 | ₹27,270.00 |
| 6,000+ | ₹8.57 | ₹51,420.00 |
5 × ₹16.70
₹83.50
excl. GST
₹98.53 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74HC86D
₹83.50 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV~400mV
- Propagation Delay
- 15ns@6V,15pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;3.7V~4.4V;5.2V~5.9V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.292 g
Overview
EM74HC86 and EM74HCT86 are quad 2-input exclusive-OR gates. The inputs include clamp diodes, which allow the input interface to be connected to voltages higher than VCC using current-limiting resistors.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Compliant with JEDEC standards: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
- Input levels: CMOS levels for EM74HC86; TTL levels for EM74HCT86
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
