EM74HCT05D

4.5V~5.5V 16ns@4.5V,15pF 40uA 6 SOP-14L Gates and Inverters

SOP-14LRoHSActive

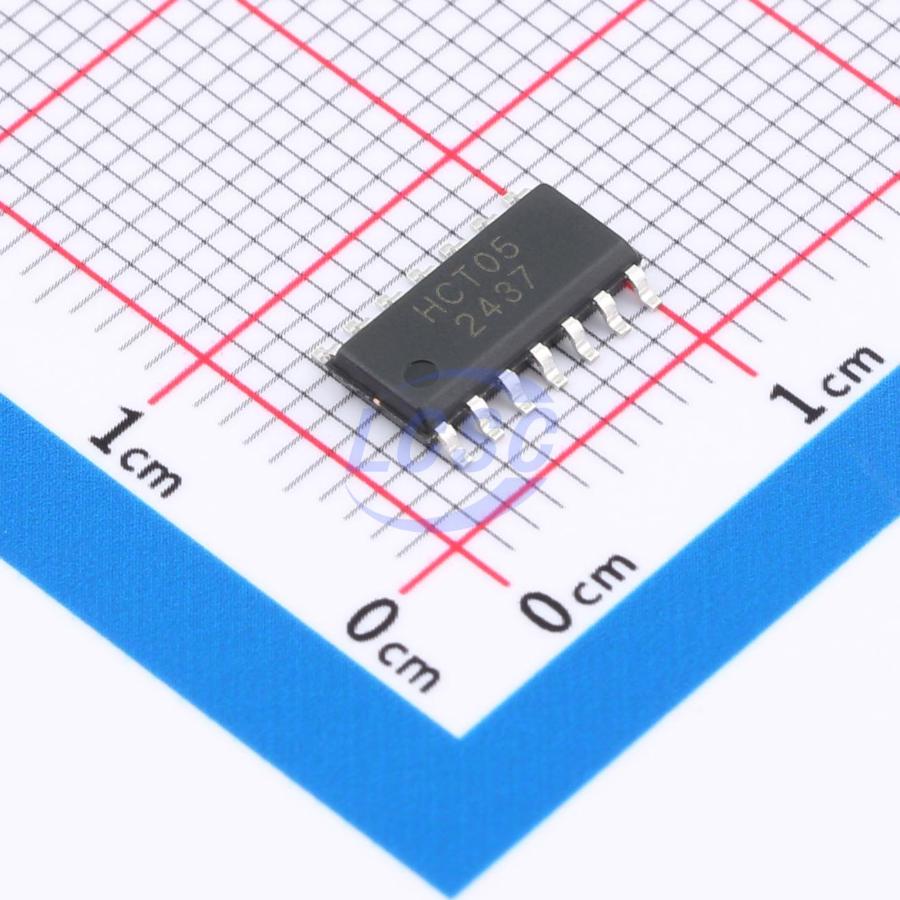

Hex inverter with open-drain outputs

Manufacturer: EnergyMath
Manufacturer part #: EM74HCT05D
Store part #: C49188197
Package / case: SOP-14L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,975 in stock

#C49188197

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.10	₹75.50
50+	₹13.19	₹659.50
150+	₹12.37	₹1,855.50
500+	₹11.34	₹5,670.00
3,000+	₹10.89	₹32,670.00
6,000+	₹10.61	₹63,660.00

Quantity (min 5, multiples of 5)

5 × ₹15.10

₹75.50

excl. GST

₹89.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

EM74HCT05D

₹75.50 for 5 + GST

Specifications

output type: Open-drain
Logic Family: 74HCT
Voltage - Supply: 4.5V~5.5V
Output Logic Level - Low: 400mV
Propagation Delay: 16ns@4.5V,15pF
Input Logic Level - High: 2V
Input Logic Level - Low: 800mV
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 40uA
Number of Channels: 6
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.289 g

Overview

EM74HC05 and EM74HCT05 contain six inverters with open-drain outputs. Inputs include clamp diodes, allowing the use of current-limiting resistors to interface inputs to voltages exceeding VCC.

Key features

Wide supply voltage range: 2.0V to 6.0V
High noise immunity
CMOS low power consumption
Latch-up performance exceeds 250mA
Compliant with JEDEC standards: JESD8C (2.7V to 3.6V) JESD7A (2.0V to 6.0V)
Input levels: EM74HC05: CMOS level; EM74HCT05: TTL level
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000V
Multiple package options
