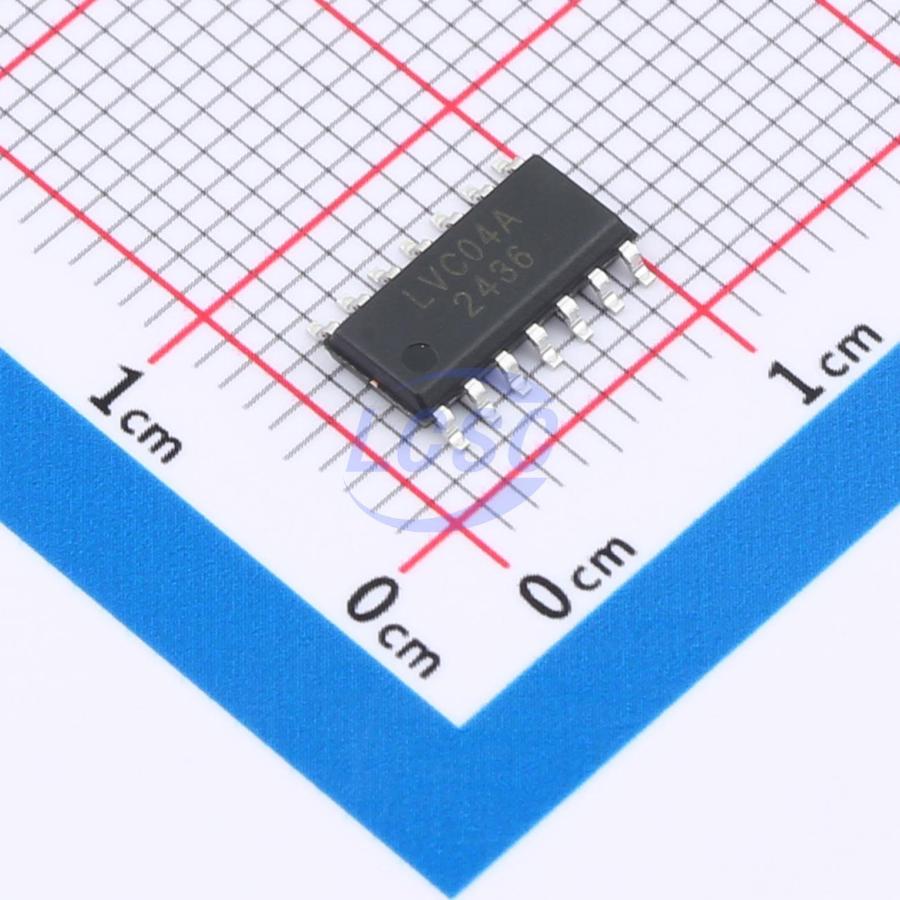

EM74LVC04AD
Schmitt trigger 1.65V~5.5V 4.5ns@5.5V,15pF 40uA 6 SOP-14L Gates and Inverters
SOP-14LRoHSActive
Hex Inverter
- Manufacturer
- EnergyMath
- Manufacturer part #
- EM74LVC04AD
- Store part #
- C49188180
- Package / case
- SOP-14L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,105 in stock
#C49188180
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.02 | ₹95.10 |
| 50+ | ₹15.04 | ₹752.00 |
| 150+ | ₹13.04 | ₹1,956.00 |
| 500+ | ₹11.55 | ₹5,775.00 |
| 3,000+ | ₹10.36 | ₹31,080.00 |
| 6,000+ | ₹9.76 | ₹58,560.00 |
5 × ₹19.02
₹95.10
excl. GST
₹112.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
EM74LVC04AD
₹95.10 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- Schmitt trigger
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 4.5ns@5.5V,15pF
- Output Logic Level - Low
- 100mV;650mV;450mV;600mV;800mV
- Features
- Noise suppression function;Power shutdown protection
- Input Logic Level - High
- 1.08V;1.7V;2V
- Input Logic Level - Low
- 120mV;700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.05V;1.7V;2.05V;2.25V;3.5V
- Quiescent Current(Iq)
- 40uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 32mA
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.275 g
Overview
The EM74LVC04A is a hex inverter. Its inputs can be driven by 3.3V or 5V devices. This feature allows these devices to be used as level translators in mixed 3.3V and 5.5V environments. Schmitt-trigger action on all inputs makes the circuit tolerant of slower input rise and fall times. The device is fully specified for partial power-down applications using Ioff. The Ioff circuit disables the outputs, preventing damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range: 1.2V to 5.5V
- Input overvoltage tolerance up to 5.5V
- CMOS low power consumption
- Ioff circuitry enables partial power-down mode operation
- Latch-up performance exceeds 250mA
- Direct TTL-level interface compatible
- JEDEC standards compliant: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
- Hex inverter
